| Place of Origin: | JIANGSU,CHINA |
| Brand Name: | Sanyouhe |
| Certification: | UL、IATF、ISO |
| Model Number: | SYH-F010 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 100/200/300/500pcs per bag , then outside carton |
| Delivery Time: | 3-15 days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 50000 PCS/per week |
| Product Name: | Fpc Flat Cable Flexible FFC Flexible Flat Cable | Sheath Material: | PE |
|---|---|---|---|
| Pin: | 2-80pins | Insulation Thickness: | 0.043 (mm) |
| Maximum OD Of Wire: | 1(mm) | Wire Length: | Customized |
| Tensile Strength: | Min.3.5kg/mm2 | Temperature: | 80℃/105℃ |
| High Light: | 1.0mm FFC flat cable,80 pins FFC flat flexible cable |
||

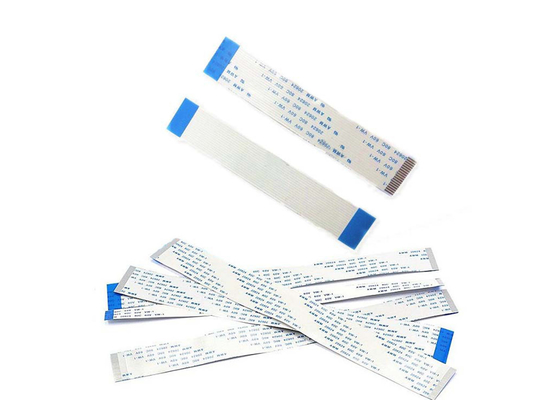

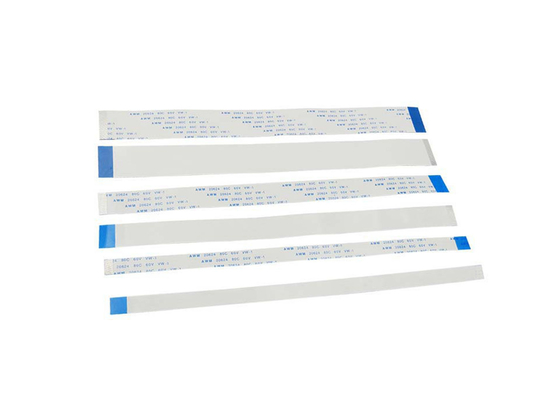

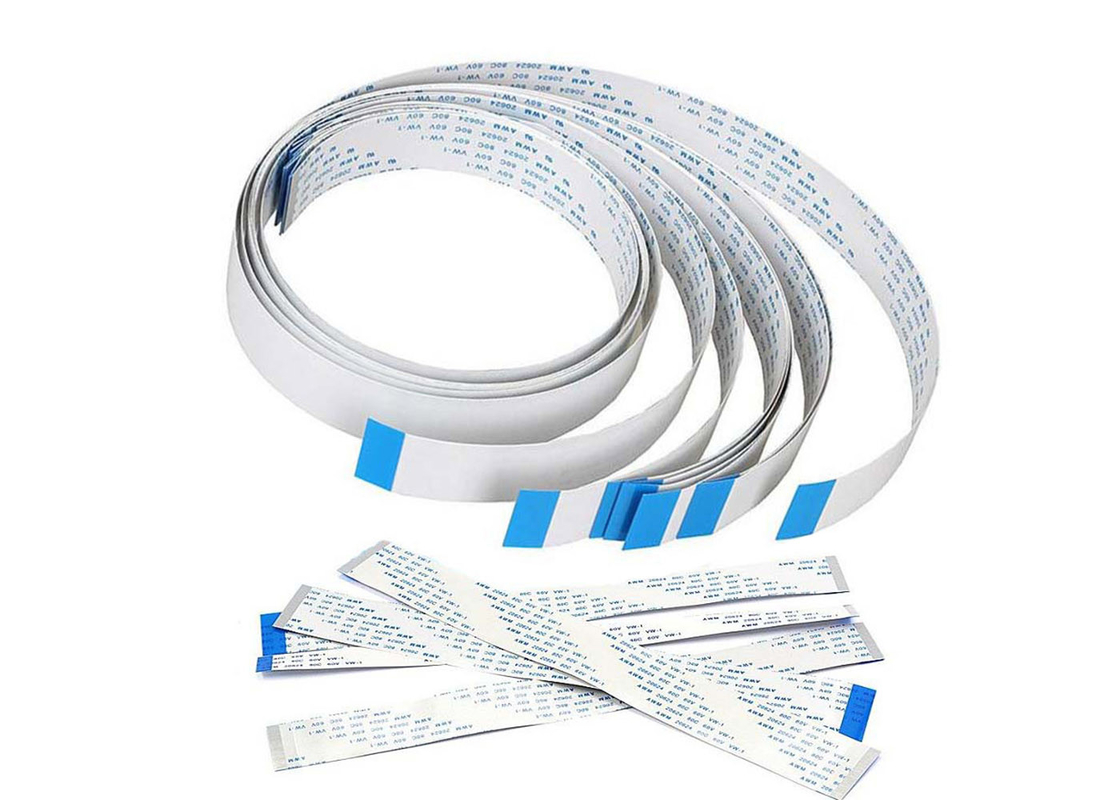

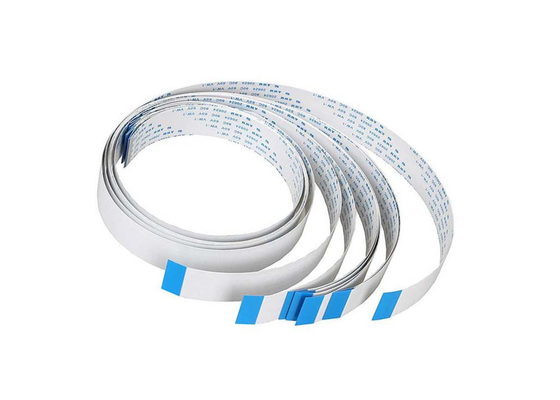

FPC/FFC Flexible Flat Cable 1.0mm Pitch Connection Cable 0.5mm FFC Soft Flat Cable
Product introduction
Our products are widely used in: tablet computers, stereos, game consoles, fishing detectors, set-top boxes, printers, refrigerators, air conditioners, video cameras, keyboards, pianos, computers, cameras, monitors, televisions, MP4s, telephones, smartphones, Amplifiers, video doorbells, touch screens, automobiles and various security products, digital products and electronic products.
Parameter:
| Pin number | 2-120 |
| Brand Name | SYH |
| Maximum outer diameter of wire | 1(mm) |
| Insulation thickness | 0.043 (mm) |
| Sheath material | PE |
| Pitch | 0.5 mm/1.0mm/1.25mm |
| Connectors | Customized |
| Wire | Customized |
| Wire length | 300mm or According to the customers' requirements |
| Wire Color | Customized |
| Certification | ISO9001, T/S16949, Rohs |
| MOQ | Small quantity can be accepted |
| Sample | Sample can be provided for evaluating |
| Sevice | OED ODM accepted |
| Delivery Time | 3-15 days upon receipt of payment |
| Packaging | 00/200/300/500pcs per bag , then outside carton |
| Test | Professional breakover and pulling force test before goods sent out |
Flexible Flat Cable (FFC) Common models are as follows:
Type A: The two ends are connected and the reinforcing plate is pasted on the insulating adhesive paper;
Type B: The reinforcement board is pasted directly on the insulating adhesive paper;
Type C: The reinforcing plates at both ends are directly pasted on the conductor;
Type D: The reinforcement plates at both ends are directly pasted on the conductor cross;
Type E: one end of the reinforcement board is attached to the insulating adhesive paper, and the other end is directly soldered;
Type F: The reinforcing plates at both ends are directly attached to the insulating adhesive paper, and the internal half is peeled off;
Type G: Solder directly at both ends.
FFC technical parameters:
1. Number of conductors N: the number of copper conductors in the cable;
2. Pitch P: the distance between the centerlines of two adjacent conductors;
3. Margin M: the distance between the center line of the outermost conductor and the edge of the cable:
4. Full pitch TP: the distance between the outermost two conductor centerlines, TP=P*(N-1);
5. Total width W: the distance between the two edges of the cable, W=P*(N+1);
6. Total length TL: the distance between the two ends of the cable;
7. Insert thickness TT: the thickness of the two connecting ends of the cable;
Flexible flat flexible cable:
① PITCH (Pitch): 0.5mm 0.8mm 1.0mm 1.25mm 1.27mm 2.0mm 2.54mm
② Conductor specifications: 0.035*0.030, 0.035*0.65, 0.05*0.5, 0.05*0.065, 0.1*0.65, 0.1*0.8;
③ Number of cable screens: 2P-120P;
④ Cable length: 15mm-Nm;
Shipping:
1.FedEx/DHL/TNT/UPS/EMS/Aramex/SF for samples, Door-to-Door;
2. By Air or by Sea for batch goods;Airportport receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 3-7 days for samples; 10-30 days for batch goods.
