Hard work, integrity, win-win cooperation
 |
| Place of Origin: | JIANGSU,CHINA |
| Brand Name: | SYH |
| Certification: | UL、IATF、ISO |
| Model Number: | SYH-I016 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 100/200/300/500pcs per bag , then outside carton |
| Delivery Time: | 3-15 days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 50000 PCS/per week |
| Connector: | O-ring Terminal | Wire Length: | 100mm Or Customized |
|---|---|---|---|
| Jacket: | Corrugated Pipe | Wire: | Multi Core Cables |
| Application: | Industrial | Color: | Black Or Customized |
| Highlight: | 100mm custom made wiring harness,Corrugated Pipe Multi Core Cables |
||

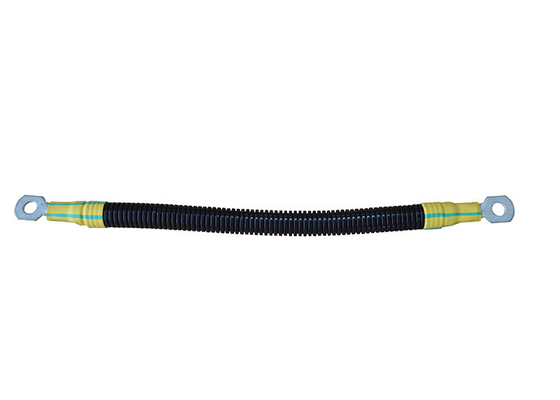

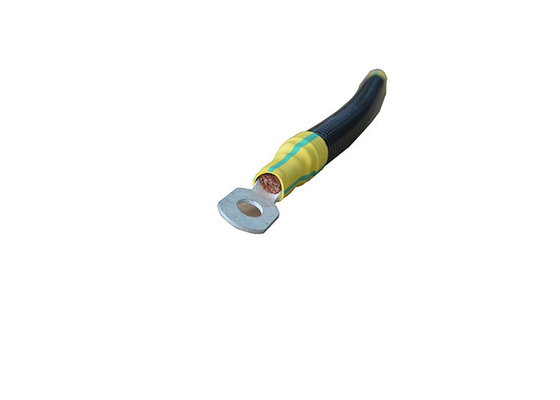

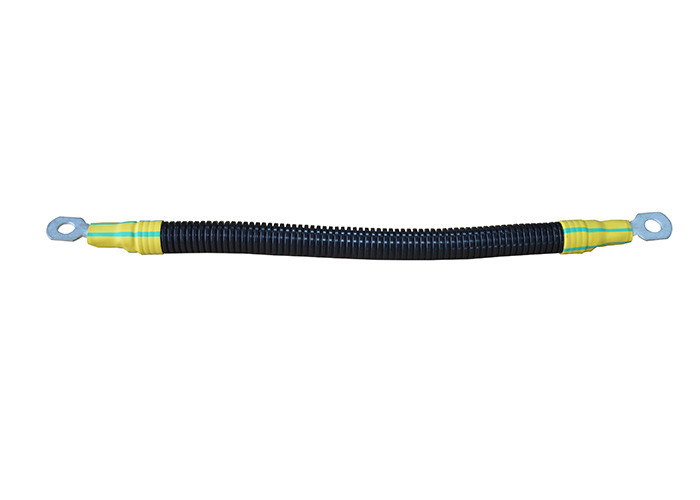

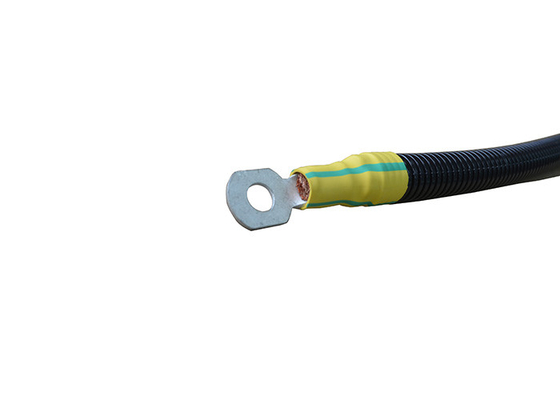

O-ring Connectors Industrial Wiring Harness 100mm Corrugated Pipe Multi Core Cables
Product Overview
Before deliver the products will have professional breakover and pulling force test .can provide sample for evaluating and testing . the sample is free charge ,but customer should pay for the sample shipping cost .
Manufactured from superior materials, this harness ensures peerless quality and uncompromising reliability. This wiring harness can also come in handy in other situations.
We Use Multi Core Cables and Also Corrugated Pipe for Manufacture of this wire harness .We Make Assembly Wiring Harness for the Speedometers, Tank Units and Electrical Gauges. We Make Harnesses for Elevators, Metering Pumps, Programmed Doors,textile Machines, Mold Machine Controllers Etc.
Parameters:
| Connectors | O-RING terminal |
| Wire length | 100mm or According to the customers' requirements |
| Wire |
Multi Core Cables |
| Wire Color | Customized |
| Test | Professional breakover and pulling force test before goods sent out |
| Cable materials | Wire harness can be UL/CSA,CE, VDE,SAA,CB etc and pure copper |
| Cable color,lenght | According to the customers' requirements |
| Insulation |
Corrugated Pipe |
| Connector Type | Original OEM or Replacement |
| Application | Automotive,Electrical,Industry |
| Service | OEM and ODM products are acceptable |
| Order Quantity | Small quantity can be accepted,like 100pcs |
| Samples | Samples confirmed first before mass production |
| Certificates | RoHS,CE,UL,TUV,ISO |
| Lead time | Small orders under 500pcs is 7-10days,exceed 1000pcs 2-3weeks |
| Payment | PayPal,Western Union,MoneyGram,Escrow,L/C,T/T |
Selection of Corrugated Pipe :The main purpose of the bellows(Corrugated Pipe) is as a measuring element of a pressure measuring instrument to convert pressure into displacement or force. Bellows(Corrugated Pipe) have thinner walls and higher sensitivity, and the measuring range is from tens of MPa to tens of MPa. Its open end is fixed, the sealed end is in a free state, and the auxiliary coil spring or reed is used to increase the elasticity. When working, under the action of internal pressure, it is elongated along the length of the tube, so that the movable end produces a displacement that has a certain relationship with the pressure. The movable end can directly indicate the pressure by driving the pointer.
What we can produce :
1. Industrial Wiring Harness
2. Ffc Flexible Flat Cable
3. Idc Ribbon Cable
4. Lvds Cable
5. Custom Wiring Harness
6. Overmolded Cable Assemblies
7. Communication Wires And Cables
8. High Gain Wifi Antenna
9. New Energy Vehicle Wiring Harness
10. Medical Wiring Harness
11. Automotive Wiring Harness(Automotive,Motocycle,Bus,Bike,Truck wire cable assembly)
12. Electronic Wiring Harness
13. Industrial Wiring Harness
14. Converter Adapter Cable
15. Waterproof Cable Wire
16.Audio,Video,Radio cable and iso wire harness
17.Home appliance wire harness
18.Fuse wire ,game machine wire harness
Why Choosing us?
1. Achieve win-win
2. Competitive price
3. In time service
4. Product warranty
5. Rich experiences
6. High Quality
7. Lead time:7-10 days
8. Offer technology support.
9. Professional and experienced engineers
