| Place of Origin: | JIANGSU,CHINA |
| Brand Name: | Sanyouhe |
| Certification: | UL、IATF、ISO |
| Model Number: | SYH-A012 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 100/200/300/500pcs per bag , then outside carton |
| Delivery Time: | 3-15 days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 50000 PCS/per week |
| Color: | Red Or Customized | Lead Time: | 3days |
|---|---|---|---|
| Application: | Vehicle Connection | Work Frequency: | Low Frequency |
| Interface Type: | AC/DC | Wire Length: | 40mm Or Customized |
| Highlight: | 40mm Automotive Wiring Harness,22AWG car wiring harness |
||

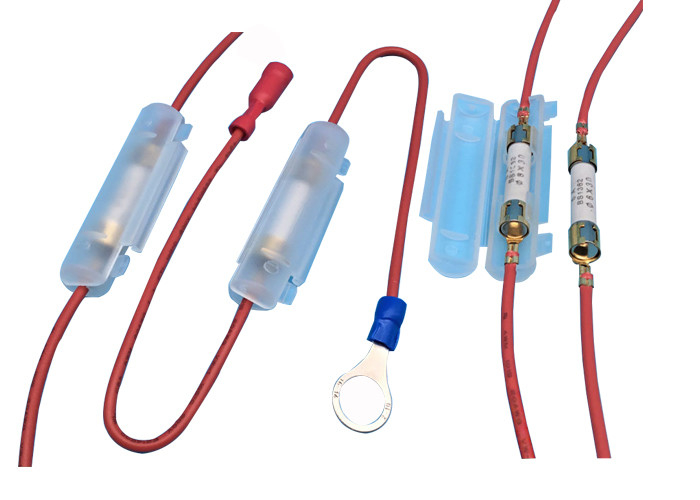

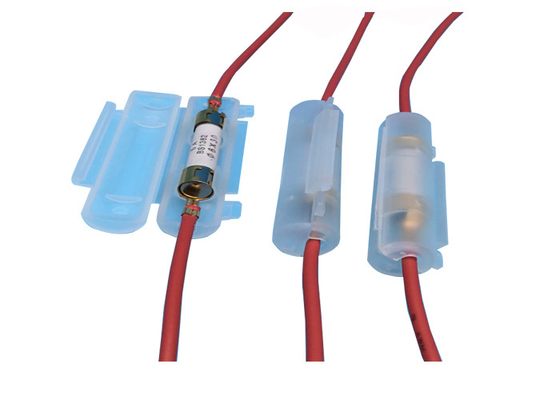

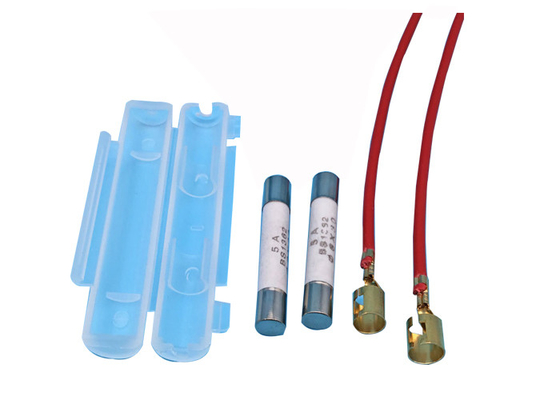

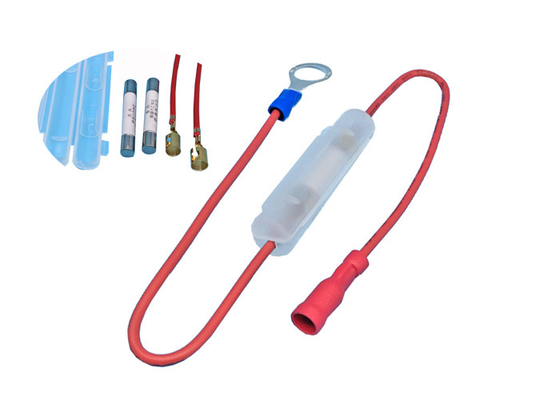

Strip Automotive Wiring Harness 40mm Low Frequency Red Tachograph Connection Wire
Product introduction
The common specifications of the wires in the automobile wiring harness are wires with a nominal cross-sectional area of 0.5, 0.75, 1.0, 1.5, 2.0, 2.5, 4.0, 6.0, etc. square millimeters, each of which has an allowable load current value, which is suitable for different power electrical equipment Wire. Taking the vehicle wiring harness as an example, the 0.5 specification line is suitable for instrument lights, indicator lights, door lights, ceiling lights, etc .; the 0.75 specification line is suitable for license plate lights, front and rear small lights, brake lights, etc .; the 1.0 specification line is suitable for turn signals, fog Lights, etc .; 1.5-gauge wire is suitable for headlights, horns, etc .; the main power line, such as generator armature wire, ground wire, etc., requires 2.5 to 4 square millimeters of wire. This only refers to the general car, the key depends on the maximum current value of the load, for example, the ground wire of the battery, the positive power line is a special car wire used alone, and their wire diameters are relatively large, at least a dozen square millimeters Above, these "Big Mac" wires will not be incorporated into the main harness.
Parameters:
| MOQ | Small quantity can be accepted |
| Lead time | 3-15 days |
| Temperature resistance | 105℃ |
| Test | Professional breakover and pulling force test before goods sent out |
| Contact type | Wire-to-board |
| Application | Electronic appliances |
| Interface Type | AC/DC |
| Shape | Strip |
| Wire gauge | 22AWG or customized |
|
Color
|
Red or customized |
| Wire length | 40mm or customized |
| Customized | Yes |
| Feature | Flame retardant |
| Contact material | Tinned |
| Insulation material | PVC / TPE / silicone |
| Conductor material | Pure copper tin plating |
Our Advantages:
1.Factory and trade integration,
2.Competitive price;
3.Timely delivery;
4.Technical support;
5.Samples for free;
6.High Trade Assurance Level
Our Services
1. Design and provide drawings service
2. Free sample service
3. Respond in time
4. OEM, ODM service
5. After sales guarantee service
Production equipment :
Fully Automatic Wire Cutting Striping and Crimping Machine
Wire Cutting and Stripping Machine
Multi Core Cable Cutting and De-sheathing Machine
Pneumatic Core Stripper
Wire Cutting Stripping and Twisting Machine
Microprocessor Based Battery Cable Cutting Machine
Pneumatic Cable Outer Jacket Removal Machine
Pneumatic Crimping Machine for Scattered Terminals
Semi Automatic Crimping Machines
Electronic Crimping Presses
Applicators
Toggle Crimping Machines
Wire Stripping and Twisting Machines
Soldering Station
Coupler Assembly Station
Air Compressor ( 3 Hp and 5 Hp)
25 Kva Generator
Microprocessor Based Harness Tester
