Hard work, integrity, win-win cooperation
 |
| Place of Origin: | JIANGSU,CHINA |
| Brand Name: | Sanyouhe |
| Certification: | UL、IATF、ISO |
| Model Number: | SYH-A015 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 100/200/300/500pcs per bag , then outside carton |
| Delivery Time: | 3-15 days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 50000 PCS/per week |
| Wire Length: | 300mm Or Customized | Color: | Read And Black Or Customized |
|---|---|---|---|
| Wire Gauge: | 16AWG-24AWG | Voltage: | 300V |
| Pitch: | 4.2mm Or Customized | Housing: | 2*4 Double Row |
| Highlight: | 24AWG auto wiring harness,300V auto wiring harness |
||

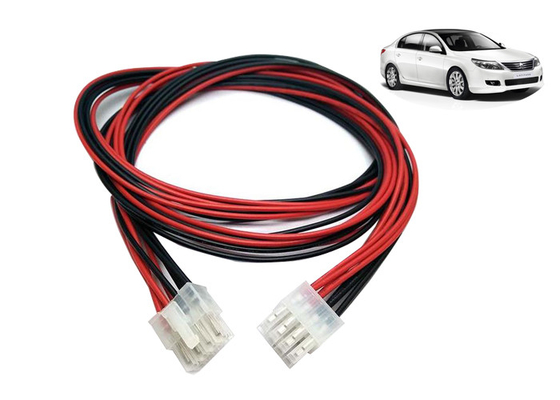

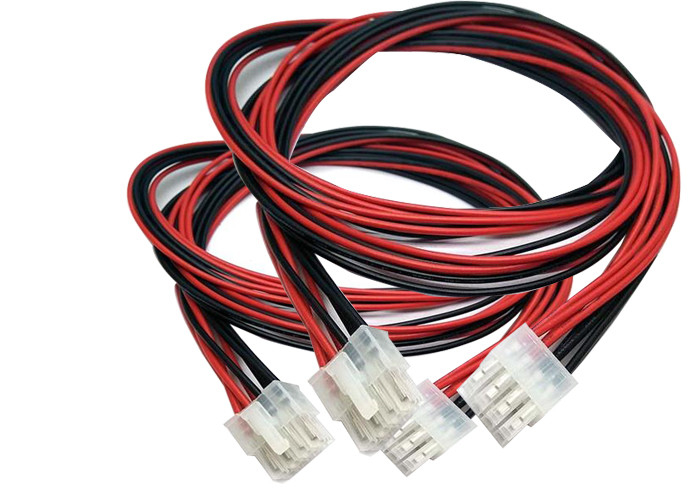

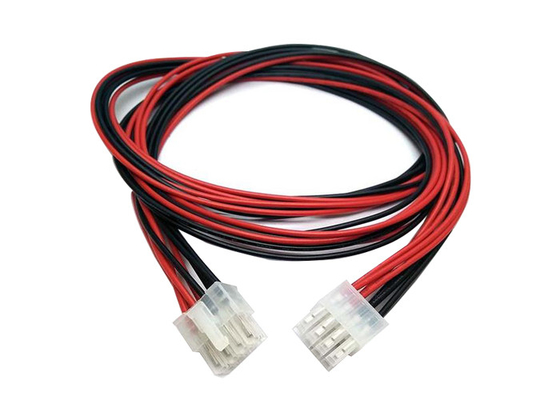

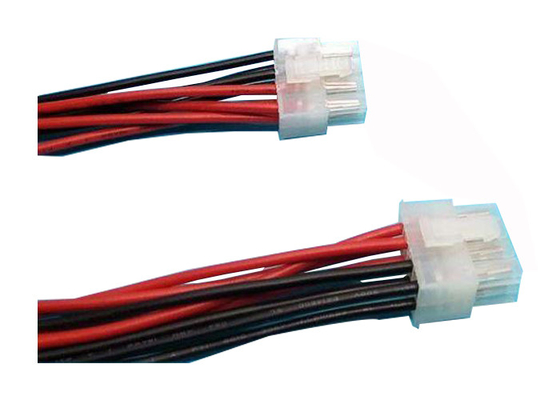

300mm Automotive Wiring Harness Low Frequency 2Color 300V Vehicle Cable
Product introduction
Parameters:
| MOQ | Small quantity can be accepted |
| Pitch | 4.2mm |
| Rated current | 10A |
| Rated voltage | 300V |
| Lead time | 3-15 days |
| Certificate | RoHS,CE,UL,TUV,ISO |
| Test | Professional breakover and pulling force test before goods sent out |
| Contact type | Wire-to-board |
| Application | Electronic appliances |
| Interface Type | AC/DC |
| Shape | Strip |
| Wire gauge | 16-24AWG or customized |
|
Color
|
Red and black or customized |
| Wire length | 300mm or customized |
| Customized | Yes |
| Feature | Flame retardant,can pass the UL758,VW-A and CSA RT1 vertical burning test. |
| Insulation material | PVC / TPE / silicone or customized |
| Conductor material | Pure copper tin plating |
Wiring harnesses are used in everything from remote control cars to jumbo jets. For example, the desktop computer you may be using currently has a myriad of different harnesses for data and power transfer, all to let you view a page like this one. Inside your vehicle are reams of cables, wires, terminals, and connectors that have to run through the entire vehicle in order to connect all the different components that allow you to simply drive from A to B. The harness itself sounds simple, but it can be rather complex when different connections, terminations, conductor sizes, sheathing, strain reliefs, and many other considerations have to come into play depending on the needs of the project. Our engineers design a complete system around the wires and cables needed to power electrical systems, transfer high speed data, and send and receive signals. If you’re ready to discuss your project’s unique requirements, talk over your options with a knowledgeable representative now.
Our products are as follows:
1. Industrial Wiring Harness
2. Ffc Flexible Flat Cable
3. Idc Ribbon Cable
4. Lvds Cable
5. Custom Wiring Harness
6. Overmolded Cable Assemblies
7. Communication Wires And Cables
8. High Gain Wifi Antenna
9. New Energy Vehicle Wiring Harness
10. Medical Wiring Harness
11. Automotive Wiring Harness
12. Electronic Wiring Harness
13. Industrial Wiring Harness
14. Converter Adapter Cable
15. Waterproof Cable Wire
Production Capacity:
We Make Around Five Million Crimps Per Month and We Have Ambitious Expansion Plans to Make Around Ten Million Crimps Per Month .
Competitivenes…
We Maintain Competitiveness with the Following Steps
Production equipment :
Fully Automatic Wire Cutting Striping and Crimping Machine
Wire Cutting and Stripping Machine
Multi Core Cable Cutting and De-sheathing Machine
Pneumatic Core Stripper
Wire Cutting Stripping and Twisting Machine
Microprocessor Based Battery Cable Cutting Machine
Pneumatic Cable Outer Jacket Removal Machine
Pneumatic Crimping Machine for Scattered Terminals
Semi Automatic Crimping Machines
Electronic Crimping Presses
Applicators
Toggle Crimping Machines
Wire Stripping and Twisting Machines
Soldering Station
Coupler Assembly Station
Air Compressor ( 3 Hp and 5 Hp)
25 Kva Generator – 1 No
Microprocessor Based Harness Tester
