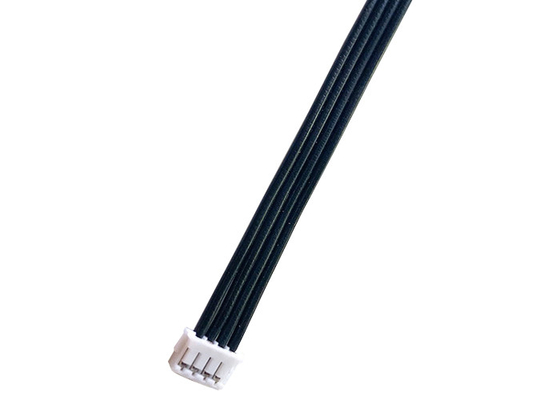

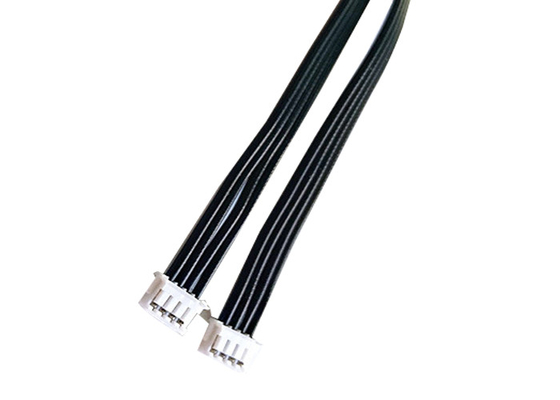

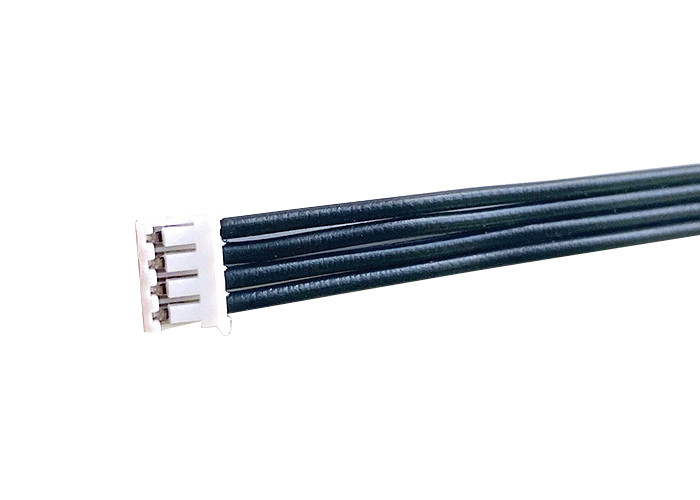

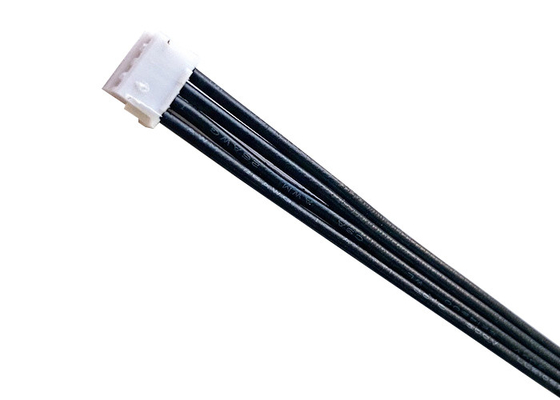

4 Pins 24 AWG 100mm New Energy Vehicle Wiring Harness

100mm New Energy Vehicle Wiring Harness 4pins 24AWG Black Automobile Battery High Temperature Wire Harness

Product information:

With the increase of automotive electrical equipment, new energy automobile wiring harnesses, and the number of wires in the wiring harnesses are also increasing. In order to facilitate identification and detection of automotive electrical equipment, low-voltage wires in the wiring harnesses are usually used with different wire colors.

Parameters:

At present, two methods are generally used when selecting wiring: single-color line and two-color line. When using monochromatic lines as a basis, you can refer to the monochromatic line colors in Table 3. The power cord of each power system is monochrome. New energy vehicle wiring harness service hotline.

About the material :Silicone Rubber

The AGR silicone rubber cable processed with silicone material has good elasticity. The suitable temperature range is -60 ℃ -200 ℃ Voltage: 300 / 500V Conductor material: The process principle is similar to rubber, and it is processed through mixing, high-pressure molding and other processes.

Advantages: heat resistance, cold resistance and weather resistance, waterproof, good flexibility, easy to install.

Disadvantages: the price is more expensive.

Working temperature: cold resistance -40 degrees; temperature resistance within 200 degrees.

Conductor Sizes

We can extrude conductors as small as 34 gauge and as large as 12 gauge. These can be combined to create a mixed gauge cable.

Conductor Colors

Our custom wire and cable harness capabilities are extensive, from 1 conductor to cables with more than 50 conductors. Custom colors, striping and marking are available to meet your wiring harness design requirements.

Stranding Sizes

Your conductors can be made with stranding as small as 0.002 inches (0.05mm) which is excellent for hi-flex, supple cables. If you just need a standard power conductor we can use stranding as large as 0.01 inches (0.25 mm). Stranding can be bare copper, tinned stranding, tinned conductor or even plated with precious metals such as silver for increased conductivity.

Conductor Insulation

The first protection in any cable is the conductor’s insulation. Our wire and cable extrusion capabilities include a wide range of materials to match your requirements for flexibility, abrasion resistance and environmental conditions. We use the range from basic PVC, PE or PP. We also use insulating materials such as natural rubber, PU, TPE, PTFE (Teflon®) and silicone.

Materials

Polyvinylchloride (PVC)

Polyurethane (PU)

Thermoplastic elastomer (TPE)

Thermoplastic polyester elastomer (TPEE)

Thermoplastic vulcanizate (TPV)

Polytetrafluoroethylene (Teflon®)

Silicone

The hardness or softness of each material can be varied.

Ul® Certified Wire & Cable

There are many standard UL® cable types. UL® standards help designers choose a cable with known specifications instead of creating one from scratch. We are certified by UL® to produce many standard types of wire and cable harnesses.
