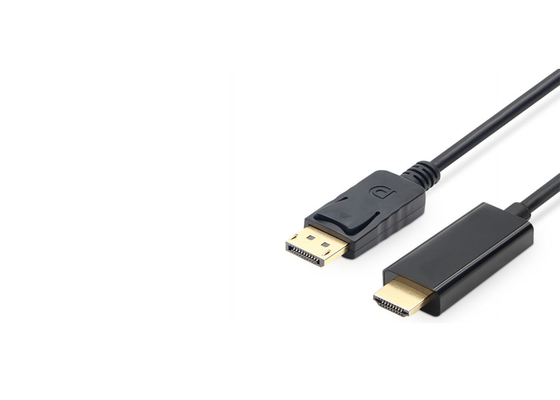

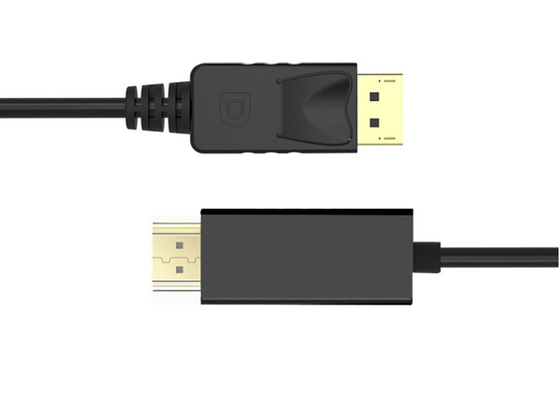

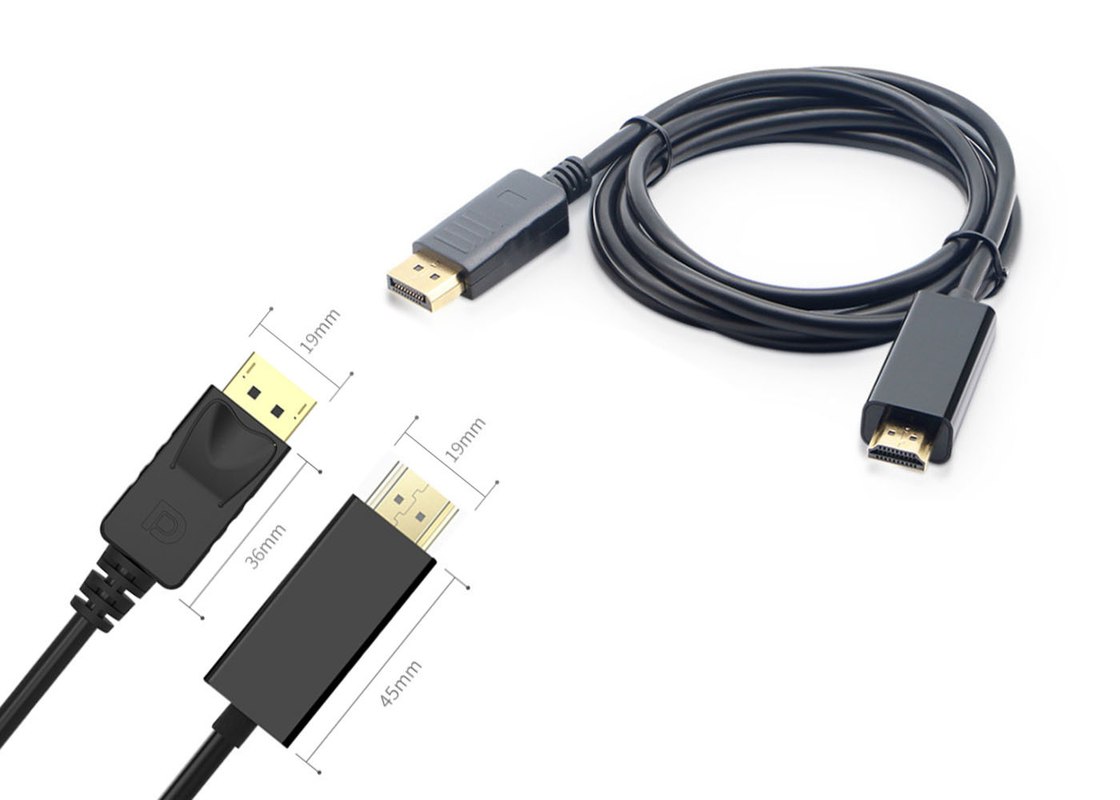

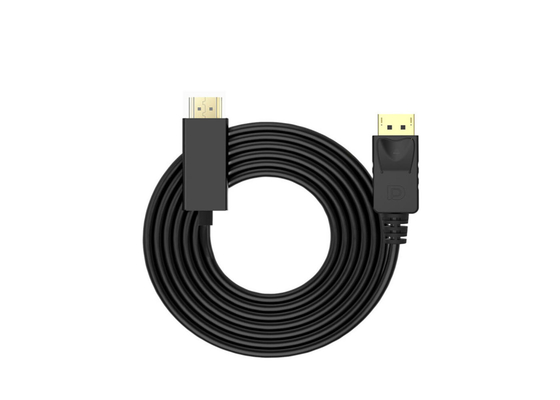

Communication PVC Jacket 5.5mm 500mm HDMI To DP Cable

HDMI To DP Audio And Video Cable HDMI Output DP Input Communication Wires And Cables

Parameters:

Product features:

The structure of the video frequency cable, from the outside to the inside, is a sheath, an outer conductor (shield layer), an insulating medium, and an inner conductor.

The sheath, that is, the outermost layer is an insulating layer, plays a protective role. Outdoor cables should use black polyethylene with excellent climate characteristics. Indoor users should use light-colored polyethylene for aesthetic reasons.

The outer conductor (shield layer), the outer conductor of the RF cable has a dual role. It not only serves as a conductor of the transmission loop, transmits low levels, but also has a shielding effect. The outer conductor usually has three structures.

(1) Metal tube. This structure is welded by copper or aluminum tape longitudinally wrapped or extruded and drawn by seamless copper tube. This structure has the best shielding performance but poor flexibility and is often used in trunk cables.

(2) The vertical package of aluminum-plastic composite tape overlaps. This structure has good shielding effect and low manufacturing cost, but because the outer conductor is a round tube with a longitudinal slit, the electromagnetic wave will penetrate through the slit and leak, so it should be used with caution.

(3) Combination of braided mesh and longitudinal package of aluminum-plastic composite tape. This is developed from a single woven mesh structure, which has the characteristics of good flexibility, light weight and reliable joints. Experiments have shown that the use of a reasonable composite structure has greatly improved the shielding performance. Used heavily.

FAQ:

Q: When will you start to help design?

A: We sketch simple solution for initial discussion, after quotation and order placed then start to drawing and double confirm with client for the design.

Q: How can i get the price?

A: We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.

Q: Can I buy samples placing orders?

A: Yes.Please feel free to contact us.

Q: What is the difference between a cable assembly and a wire assembly?

A: These often confused components are quite different and serve different purposes. A wire is either a single strand or a bundle of strands that are designed to be conductive. Wires come bare or sheathed and are usually made of copper or aluminum. Conversely, a cable has two or more conductors which are insulated which are then twisted together, usually inside of a protective outer jacket. A wire harness therefore, is the systematic support system that links wires into a cohesive unit with the necessary connections and terminations to complete the task. Think the wiring system in your automobile that requires different systems to all be linked simultaneously. While a cable assembly is similar in concept, the application is quite different and would include examples like the fairly simple cable assembly for connecting your TV and surround sound or the more complex and futuristic-looking electrode helmets used in medical brain scans.

Q: What is ISO 9001:2015 certification?

A: The International Organization for Standardization (ISO) specifies the minimum requirements that the quality assurance/quality control plans a manufacturer has to have in place in order to be certified for ISO 9001:2015. For this system governing quality management systems, the organization needs to show that it has the ability to consistently deliver the products or services that meet both customer and regulatory requirements, as well as, show they’ve taken steps to enhance the customer’s satisfaction. This is done through demonstrating the organization has continual improvement processes in place and can showcase conformity to customer/regulatory requirements for each project undertaken. SYH is proud to maintain this important distinction for ensuring our clients receive nothing but high-quality products.

Q: Does SYH offer a warranty for wire harnesses?

A: SYH designs products under the strictest of quality assurance and quality control guidelines, but components do sometimes break down prematurely. We want you to be absolutely confident in your decision to use SYH as your wire harness supplier of choice so we stand behind our products with a warranty against material defects or workmanship under normal use and service for a period of one (1) year from the original date of invoice. Depending on the situation, We will either repair or replace the product.

If you can't find the exact product you need in the pictures,please don't go away.Just contact me freely or send your sample and drawing to us.We will reply you as soon as possible.

+
