| Place of Origin: | JIANGSU,CHINA |
| Brand Name: | Sanyouhe |
| Certification: | UL、IATF、ISO |
| Model Number: | SYH-W015 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 100/200/300/500pcs per bag , then outside carton |
| Delivery Time: | 3-15 days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 50000 PCS/per week |
| Wire Length: | 500mm Or Customized | Maximum Outer Diameter: | 7mm |
|---|---|---|---|
| Interface Type: | AC/DC | Sheath Material: | PVC |
| Feature: | Waterproof | IP Code: | IP44 |
| High Light: | IP44 waterproof electric cable,2 Pins water resistant electrical cable |
||

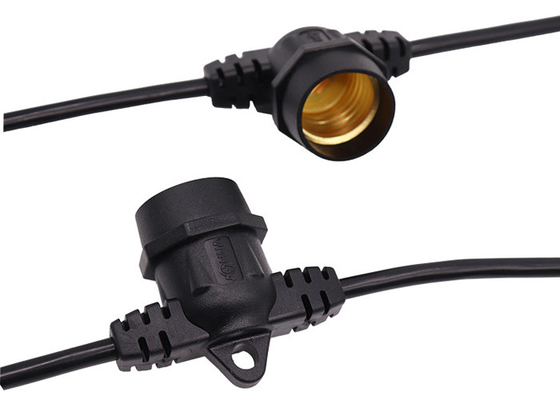

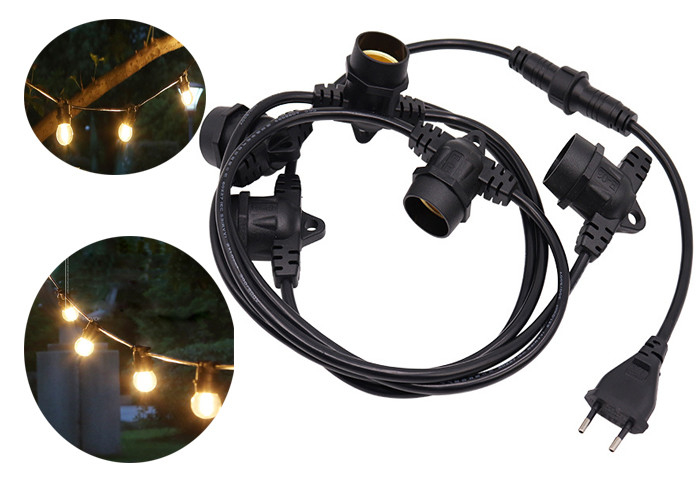

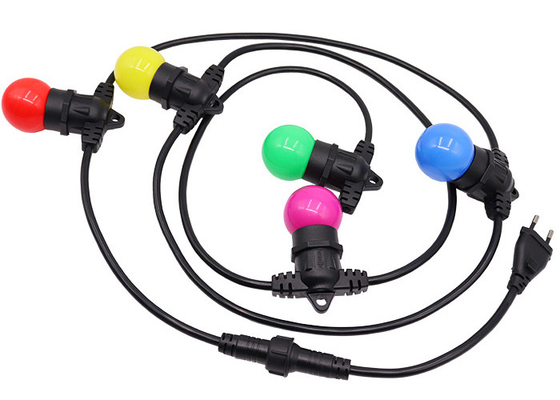

IP44 Waterproof Cable Wire Black 2pins 500mm PVC Outdoor Waterproof Light String Wires
Product information:
Waterproof cable: The outer skin is made of waterproof rubber, and the filling of the cable is also made of waterproof rubber. The jacket of the cable is made of waterproof rubber. It is suitable for submersible pumps, coal mines, underwater operations, water scene lights and other water treatment equipment.
The waterproof method of cable is generally divided into two kinds of longitudinal water blocking and radial diameter water. Longitudinal water-blocking commonly used are water-blocking yarn, water-blocking powder and water-blocking tape, their water-blocking mechanism is that these materials contain a water-swellable material, when the water is from the cable end or from the sheath After entering the defect, this material will quickly expand with water to prevent the water from further spreading along the longitudinal direction of the cable, thus achieving the purpose of longitudinal waterproofing of the cable. Radial water blocking is mainly achieved by extruding HDPE non-metallic sheath or hot pressing, welding, cold drawing metal sheath.
Parameter:
| Wire length | 500mm or customized |
| Maximum outer diameter | 7mm |
| Interface type | AC/DC |
| Sheath material | PVC |
| Feature | Waterproof |
| IP code | IP44 |
| Nominal cross section | 1.0(mm2) |
| Pin | 2pins can be customized |
| Breakdown voltage | ≥1500V |
| Work frequency | Low frequency |
| Wire Color | Black or Customized |
| Test | Professional breakover and pulling force test before goods sent out |
| Contact material | Copper |
| Cable materials | Wire harness can be UL/CSA,CE, VDE,SAA,CB etc and pure copper |
| Work frequency | Low frequency |
| Insulation | PVC |
| Connector Type | Original OEM or Replacement |
| Service | OEM and ODM products are acceptable |
| Order Quantity | Small quantity can be accepted,like 100pcs |
| Samples | Samples confirmed first before mass production |
| Certificates | RoHS,CE,UL,TUV,ISO |
| Lead time | Small orders under 500pcs is 7-10days,exceed 1000pcs 2-3weeks |
