32AWG 160mm M14 IP67 Waterproof Connector

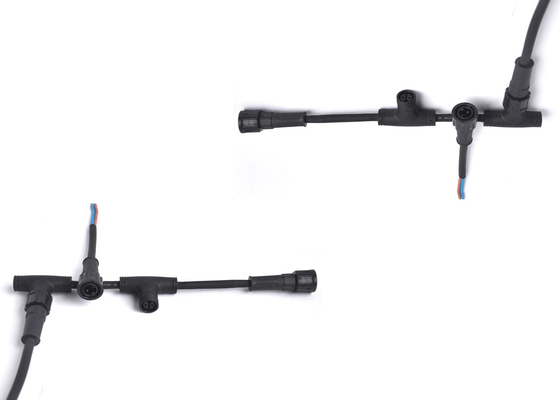

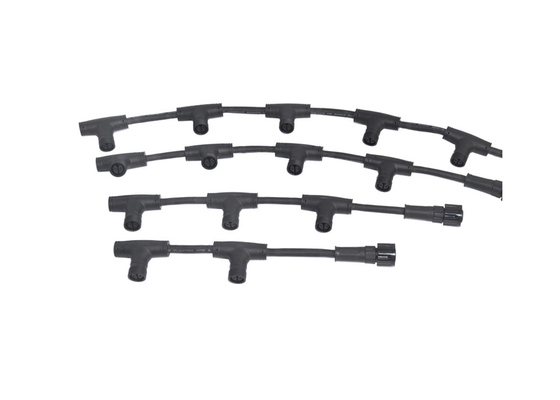

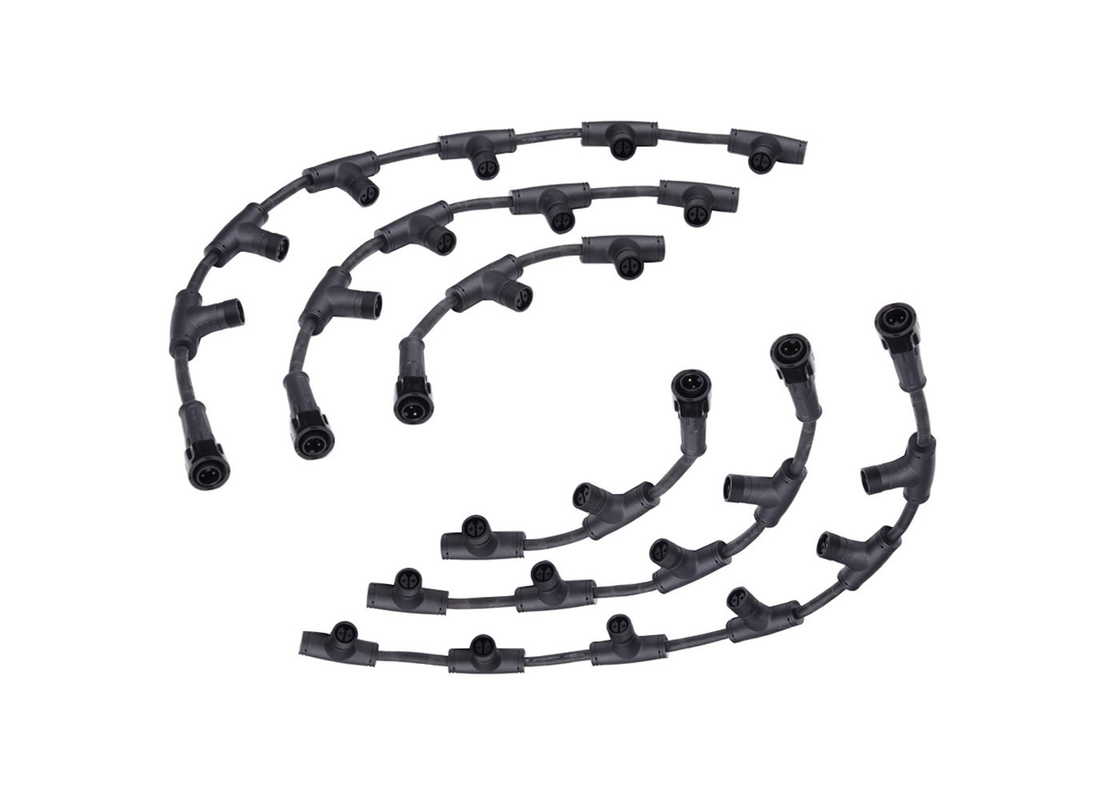

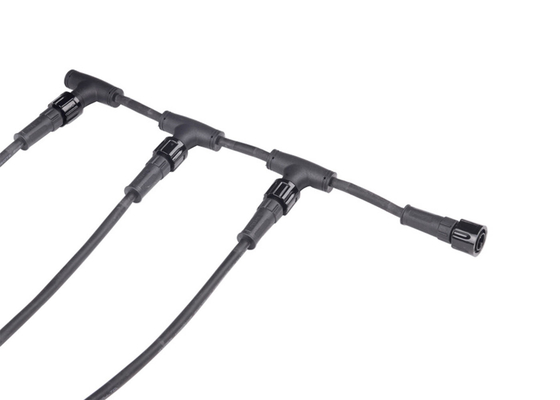

IP67 Waterproof Connector T-Shaped Street Light Module M14 Male And Female Butt Plug

Product introduction

​

Waterproof cable: The outer skin is made of waterproof rubber, and the filling of the cable is also made of waterproof rubber. The jacket of the cable is made of waterproof rubber. It is suitable for submersible pumps, coal mines, underwater operations, water scene lights and other water treatment equipment.

Specification​:

Cable waterproof test method, the longitudinal water resistance of the cable can be tested and judged by the water penetration test of IEC 60502-1997 ANNEX D (normative) or GBT 12706.2-2002 Appendix D (standard catalog); At present, it is mainly determined by indirect methods, such as checking whether the HDPE non-metallic sheath or non-metallic sheath is defective. If these sheaths are determined to be intact, then the cable is considered to have good radial water resistance. However, many users have raised some questions about this method, and caused some disputes and lack of persuasion. Therefore, cable manufacturers and users now urgently need a test method to determine the radial water resistance of the cable. It can avoid the controversy caused by the manufacturer and user due to the lack of the radial water resistance test method.

The waterproof method of cable is generally divided into two kinds of longitudinal water blocking and radial diameter water. Longitudinal water-blocking commonly used are water-blocking yarn, water-blocking powder and water-blocking tape, their water-blocking mechanism is that these materials contain a water-swellable material, when the water is from the cable end or from the sheath After entering the defect, this material will quickly expand with water to prevent the water from further spreading along the longitudinal direction of the cable, thus achieving the purpose of longitudinal waterproofing of the cable. Radial water blocking is mainly achieved by extruding HDPE non-metallic sheath or hot pressing, welding, cold drawing metal sheath.

Remarks:

1. Cable requirements: CCC/VOE/UL/ROHS and other certified cables can be used according to customer requirements;

2. According to customer requirements, R&D and design of unconventional joint products;

3. If there is no explanation, please refer to the company's corporate standards for production;

4. Special cable requirements can be provided by customers themselves, and our company carries out processing and injection molding of waterproof connectors.

FAQ:

Q:Do you accept to customize products(OEM)?

A:Yes,we custom wire harness for clients,just send us samples and drawing about the products you need.

Q:Can you meet with UL,ISO etc.?

A:Yes,we have UL,ISO,ROHS,TUV certificates,also can meet with clients special required about other certificates.

Q:How about samples cost?

A:We charge samples based on the products,but most samples are free.

Q:Any requirement about the MOQ?

A:Our MOQ based on products.But most products MOQ are about 100-300pcs.

If you can't find the exact product you need in the pictures,please don't go away.Just contact me freely or send your sample and drawing to us.We will reply you as soon as possible.
