| Place of Origin: | JIANGSU,CHINA |
| Brand Name: | Sanyouhe |
| Certification: | UL、IATF、ISO |
| Model Number: | SYH-CW015 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 100/200/300/500pcs per bag , then outside carton |
| Delivery Time: | 3-15 days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 50000 PCS/per week |
| Product Name: | Outdoor Underground Waterproof Connecting Wires | Terminal: | Copper |
|---|---|---|---|
| Outer Diameter: | 3.0mm | PIN: | 5pins Or Customized |
| Pitch: | 1.0mm Or Customized | Wire Gauge: | 26AWG Or Customized |
| Wire Color: | Customized | Wire Length: | 400mm Or Customized |
| Highlight: | 400mm custom cable harness,UL 26 AWG Custom Wiring Harness |
||

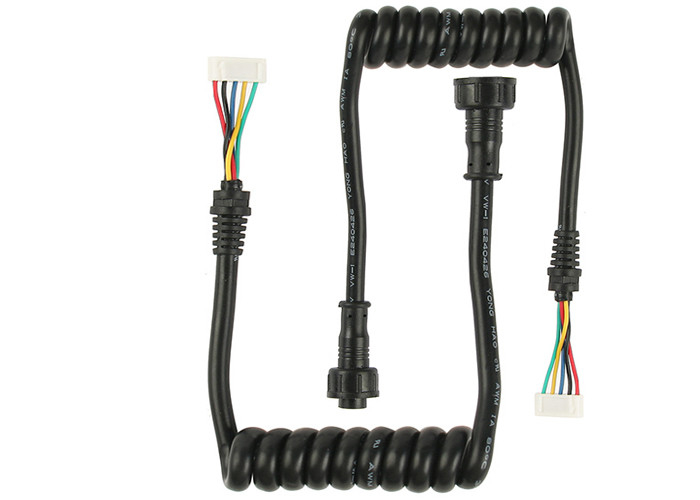

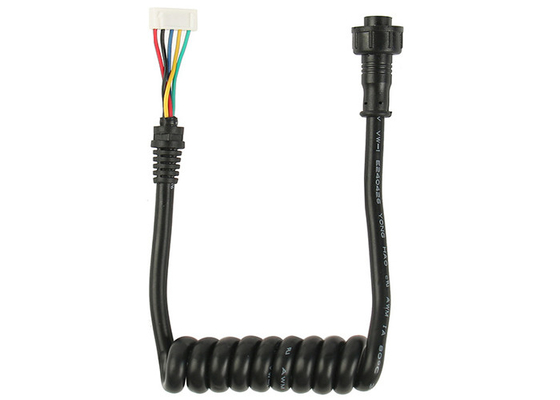

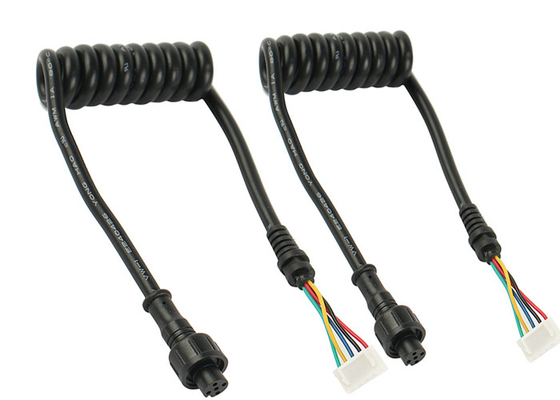

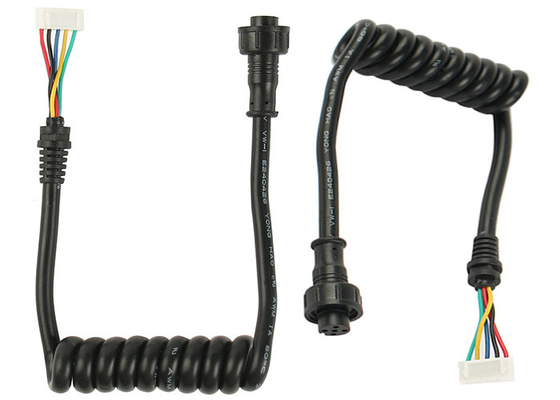

UL 26AWG Custom Wiring Harness Waterproof Black 400mm Outdoor Underground Waterproof Connecting Wires
Product information :
Waterproof cable: The outer skin is made of waterproof rubber, and the filling of the cable is also made of waterproof rubber. The jacket of the cable is made of waterproof rubber. It is suitable for submersible pumps, coal mines, underwater operations, water scene lights and other water treatment equipment.
Parameter:
| Product name | Outdoor Underground Waterproof Connecting Wires |
| Waterproof degree | IP65 |
| Terminal | Copper |
| Outer diameter | 3.0mm |
| Rated temperature | 80℃ |
| Interface type | AC/DC or customized |
| Insulation material | PVC or customized |
| Resistance | 0.03 |
| Features | Waterproof |
| Connectors | Customized |
| Work frequency | Low frequency or customized |
| Shape | Strip or customized |
| PIN | 5pins or Customized |
| Pitch | 1.0mm or customized |
| Wire gauge | 26AWG or customized |
| Wire length | 400mm or Customized |
| Wire Color | Customized |
| Certificates | RoHS,CE,UL,TUV,ISO |
| MOQ | Small quantity can be accepted |
| Sample | Samples confirmed first before mass production |
| Sevice | OEM ODM accepted |
| Delivery Time | 3-15 days upon receipt of payment |
| Packaging | 00/200/300/500pcs per bag , then outside carton |
| Test | Professional breakover and pulling force test before goods sent out |
| Lead time | 3-15 days |
Cable waterproof test method, the longitudinal water resistance of the cable can be tested and judged by the water penetration test of IEC 60502-1997 ANNEX D (normative) or GBT 12706.2-2002 Appendix D (standard catalog); At present, it is mainly determined by indirect methods, such as checking whether the HDPE non-metallic sheath or non-metallic sheath is defective. If these sheaths are determined to be intact, then the cable is considered to have good radial water resistance. However, many users have raised some questions about this method, and caused some disputes and lack of persuasion. Therefore, cable manufacturers and users now urgently need a test method to determine the radial water resistance of the cable. It can avoid the controversy caused by the manufacturer and user due to the lack of the radial water resistance test method.
SYH manufactures high quality custom wiring harness . Irrespective of the length and purpose, SYH can make custom low voltage differential cable assemblies to fit your needs. Each custom cable assembly is built to our customers’ specifications and is 100% quality tested. Our Engineers have designed over 10,000 unique cables and are part of the design process from start to finish, ensuring that each and ever customer receives exactly what they are looking for.
Our Advantages:
1. Factory and trade integration,
2. Competitive price;
3. Timely delivery;
4. Technical support;
5. Samples for free;
6. High Trade Assurance Level
Our Services
1. Design and provide drawings service
2. Free sample service
3. Respond in time
4. OEM, ODM service
5. After sales guarantee service
