| Place of Origin: | Jiangsu,China |
| Brand Name: | Sanyouhe |
| Certification: | UL、IATF、ISO |
| Model Number: | SYH-CW004 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 100/200/300/500pcs per bag , then outside carton |
| Delivery Time: | 3-15 days after payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500000 Piece/Pieces per week |
| Product Name: | XH2.54 Connector Custom Wiring Harness | Connector: | XH2.54 Connector |
|---|---|---|---|
| Pin: | 2pins | Wire Gauge: | 22AWG |
| Wire Length: | 60mm Or Customized | Wire Color: | Black Red Or Customized |
| Quality: | 100% Testing Before Shipment | Service: | OED ODM Accepted |
| Highlight: | XH2.54 Custom Wiring Harness,60mm custom wire harness assembly |
||

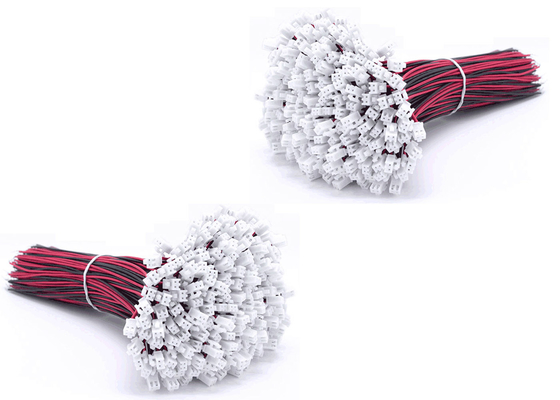

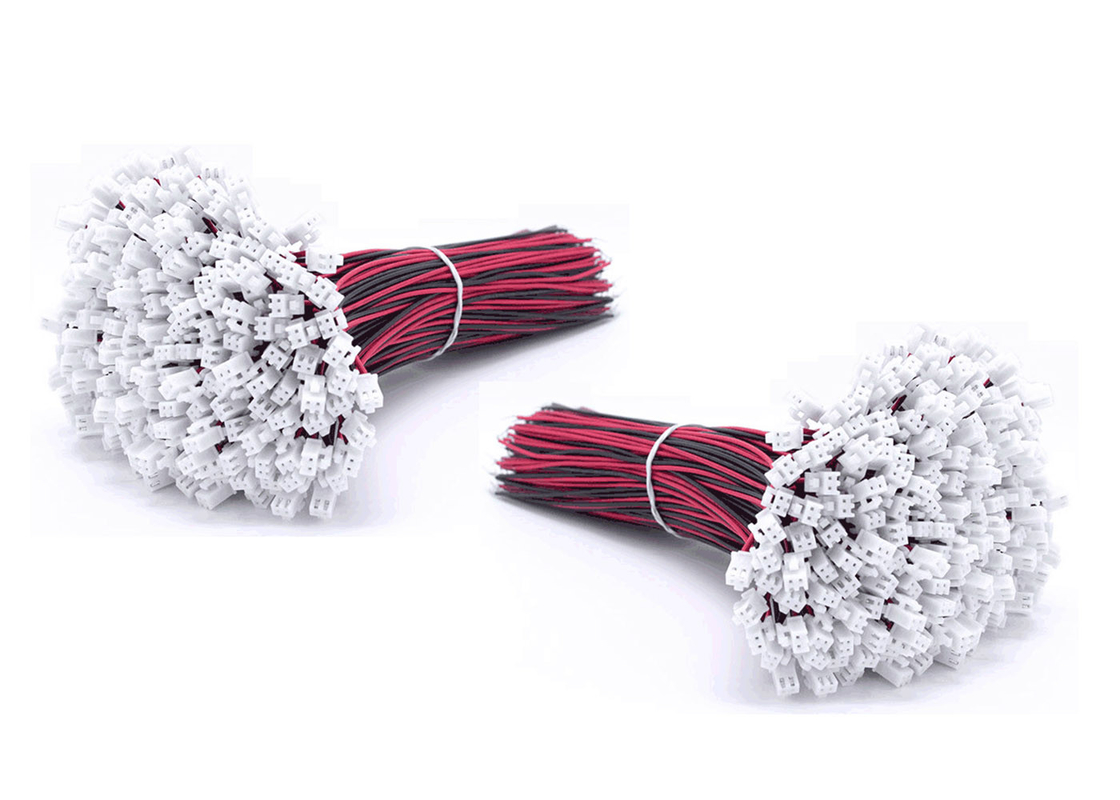

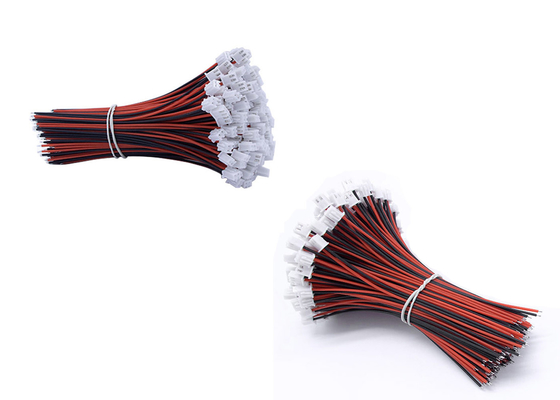

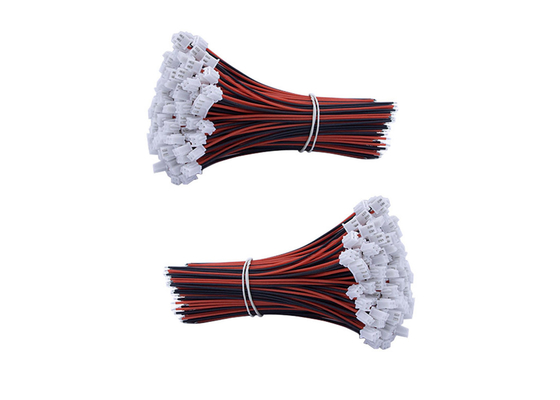

2P Red And Black Custom Wiring Harness XH2.54 Single Connector Environmental Protection PVC Wire
Product introduction
Harness material selection
The quality of the wire harness material directly affects the quality of the wire harness. The choice of wire harness material is related to the quality and service life of the wire harness. Remind you all, don't be greedy for the choice of wire harness products. Cheap wire harness products may use inferior wire harness materials.
The wire diameter specifications of commonly used regular wires are shown in the table below:
| Type | Wire gauge | wire number/diameter(/mm) | OD (mm) | Insulation thickness (mm) | Complete OD (mm) |
| UL1007 | 30AWG | 7/0.1 | 0.3mm | 0.41mm | 1.12mm |
| UL1007 | 28AWG | 7/0.127 | 0.38mm | 0.41mm | 1.20mm |
| UL1007 | 26AWG | 7/0.16 | 0.48mm | 0.41mm | 1.30mm |
| UL1007 | 24AWG | 11/0.16 | 0.61mm | 0.41mm | 1.43mm |
| UL1007 | 22AWG | 17/0.16 | 0.76mm | 0.41mm | 1.58mm |
| UL1007 | 20AWG | 26/0.16 | 0.94mm | 0.41mm | 1.76mm |
| UL1007 | 18AWG | 41/0.16 | 1.18mm | 0.41mm | 2.00mm |
| UL1007 | 16AWG | 16/0.254 | 1.49mm | 0.41mm | 2.32mm |
Parameters:
| Place of Origin | Jiangsu,China |
| Brand Name | SYH |
| Model Number | SYH-CW004 |
| Application | Automotive,Electrical,Industry,Home application |
| Connectors | XH2.54 Connector 2pins |
| Wire | 22awg |
| Wire length | 60mm or According to the customers' requirements |
| Wire Color | black red or According to the customers' requirements |
| MOQ | Small quantity can be accepted |
| Sample | Sample can be provided for evaluating |
| Sevice | OED ODM accepted |
| Delivery Time | 3-15 days upon receipt of payment |
| Packaging | 100/200/300/500pcs per bag , then outside carton |
| Test | Professional breakover and pulling force test before goods sent out |
How to distinguish the quality of the harness? Understand the material of the wiring harness. The following is the material of wire harness selection.
The wiring harness is generally composed of wires, insulating sheaths, terminal blocks and packing materials. As long as you understand these materials, you can easily distinguish the quality of the harness.
1. Material selection of terminal
The copper used for terminal materials (copper parts) is mainly brass and bronze (brass is slightly lower in hardness than bronze), of which brass accounts for a larger proportion. In addition, different coatings can be selected according to different needs.
2. the choice of insulating sheath
The commonly used materials of sheath material (plastic parts) are PA6, PA66, ABS, PBT, pp, etc. According to the actual situation, flame retardant or reinforcing materials can be added to the plastic to achieve the purpose of reinforcing or flame retardant, such as adding glass fiber reinforcement.
3. the choice of wire harness
According to the different use environment, choose the corresponding wire material.
4. the choice of dressing materials
The wire harness bandage plays the role of wear resistance, flame retardant, anticorrosion, interference prevention, noise reduction, and beautification. Generally, the bandage material is selected according to the working environment and the size of the space. There are usually adhesive tapes, corrugated pipes, PVC pipes, etc. in the choice of packing materials.
