Hard work, integrity, win-win cooperation
 |
| Place of Origin: | Jiangsu,China |
| Brand Name: | Sanyouhe |
| Certification: | UL、IATF、ISO |
| Model Number: | SYH-CW007 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 100/200/300/500pcs per bag , then outside carton |
| Delivery Time: | 3-15 days after payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500000 Piece/Pieces per week |
| Product Name: | 1.25mm Connector Custom Wiring Harness | Connector: | 1.25mm Pitch Connector |
|---|---|---|---|
| Pin: | 5pins Or Customized | Wire Gauge: | 24AWG Or Customized |
| Wire Length: | 100mm Or Customized | Wire Color: | Black Red Or Customized |
| Quality: | 100% Testing Before Shipment | Service: | OED ODM Accepted |
| Highlight: | 1.25mm custom cable harness,100mm Custom Wiring Harness |
||

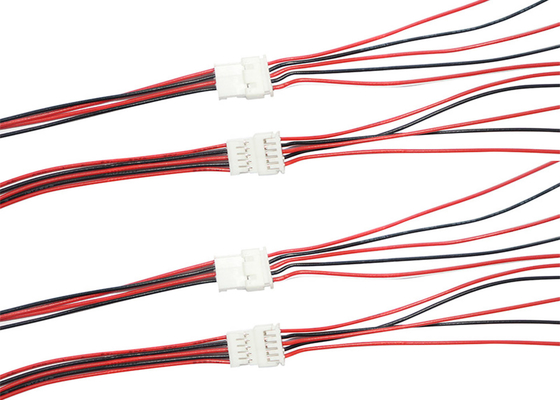

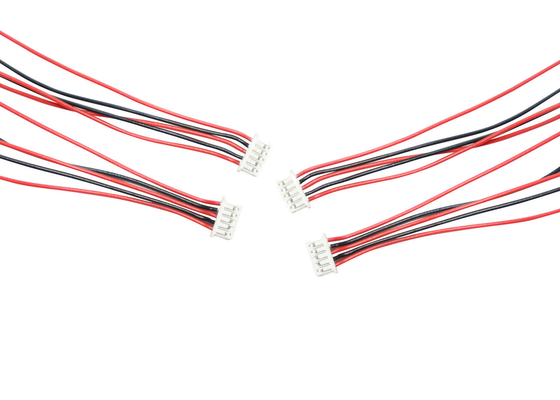

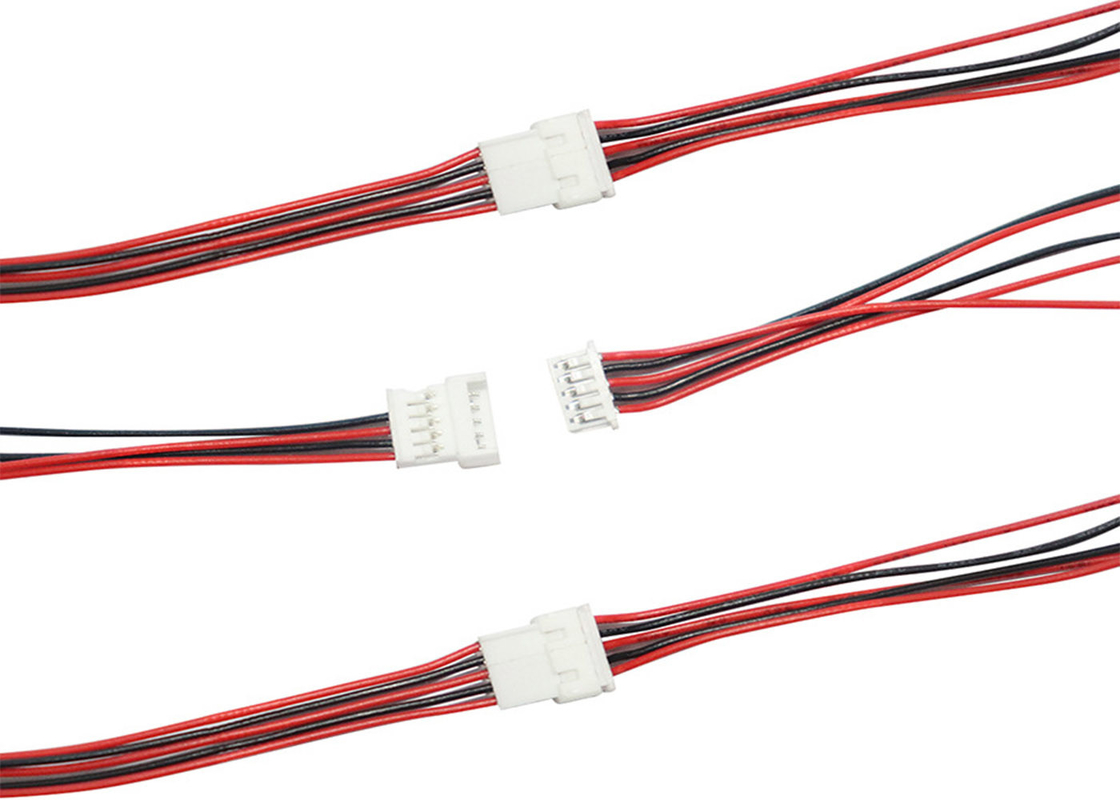

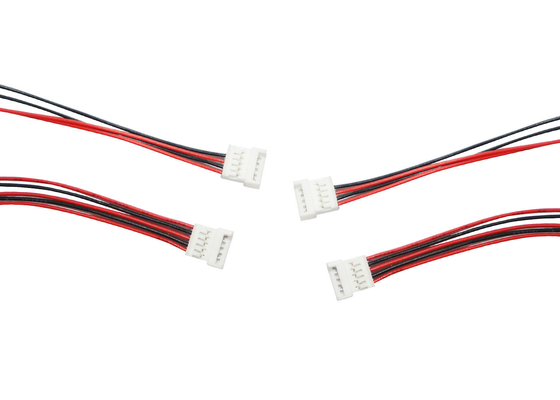

1.25mm Custom Wiring Harness Male And Female Connector Wiring 1.25mm Pitch Terminal Wire
Product introduction
AWG(AMERICAN WIRE GANGE) specification:
| AWG | Outer diameter (mm) | Cross-sectional area(mm²) | Resistance (MΩ) | AWG | Outer diameter (mm) | Cross-sectional area(mm²) | Resistance (MΩ) |
| 4/0 | 11.684 | 107.2193 | 0.16 | 27 | 0.3607 | 0.1022 | 198.74 |
| 3/0 | 10.4038 | 85.0114 | 0.2 | 28 | 0.3200 | 0.0804 | 214.32 |
| 2/0 | 9.2659 | 67.4321 | 0.26 | 29 | 0.2870 | 0.0647 | 266.47 |
| 1/0 | 8.2525 | 53.4880 | 0.32 | 30 | 0.2540 | 0.0507 | 640.26 |
| 1 | 7.3482 | 42.4086 | 0.41 | 31 | 0.2261 | 0.0401 | 429.56 |
| 2 | 6.5430 | 33.6240 | 0.51 | 32 | 0.2302 | 0.0324 | 531.65 |
| 3 | 5.8268 | 26.6652 | 0.65 | 33 | 0.1803 | 0.0255 | 674.98 |
| 4 | 5.1892 | 21.1492 | 0.82 | 34 | 0.1600 | 0.0201 | 857.28 |
| 5 | 4.6203 | 16.7657 | 1.03 | 35 | 0.1422 | 0.0159 | 1085.00 |
| 6 | 4.1148 | 13.2980 | 1.63 | 36 | 0.1270 | 0.0127 | 1361.02 |
| 7 | 3.6652 | 10.5509 | 2.06 | 37 | 0.1143 | 0.0103 | 1680.27 |
| 8 | 3.2639 | 8.3669 | 2.6 | 38 | 0.1016 | 0.0081 | 2126.60 |
| 9 | 2.9058 | 6.6315 | 3.28 | 39 | 0.0889 | 0.0062 | 2777.60 |
| 10 | 2.5883 | 5.2615 | 4.14 | 40 | 0.0787 | 0.0049 | 3540.64 |
| 11 | 2.3038 | 4.1684 | 5.21 | 41 | 0.0711 | 0.0040 | 4339.99 |
| 12 | 2.0523 | 3.3081 | 6.56 | 42 | 0.0635 | 0.0032 | 5444.09 |
| 13 | 1.8288 | 2.6268 | 8.28 | 43 | 0.0559 | 0.0025 | 7030.07 |
| 14 | 1.6281 | 2.0820 | 10.44 | 44 | 0.0508 | 0.0020 | 8506.39 |
| 15 | 1.4503 | 1.6521 | 10.44 | 45 | 0.0447 | 0.0016 | 10984.5 |
| 16 | 1.2903 | 1.3076 | 13.18 | 46 | 0.0399 | 0.0012 | 138.04 |
| 17 | 1.1506 | 1.0398 | 16.58 | 47 | 0.0356 | 0.0010 | 17360.0 |
| 18 | 1.0236 | 0.8229 | 20.95 | 48 | 0.0315 | 0.0008 | 22129.0 |
| 19 | 0.9119 | 0.6530 | 26.40 | 49 | 0.0282 | 0.0006 | 27615.9 |
| 20 | 0.8128 | 0.5189 | 33.23 | 50 | 0.0251 | 0.0005 | 34716.4 |
| 21 | 0.7239 | 0.4116 | 41.89 | 51 | 0.0224 | 0.0004 | 43938.0 |
| 22 | 0.6426 | 0.3243 | 53.16 | 52 | 0.0198 | 0.0003 | 55926.3 |
| 23 | 0.5740 | 0.2588 | 66.62 | 53 | 0.0178 | 0.0002 | 69439.9 |
| 24 | 0.5105 | 0.2047 | 84.22 | 54 | 0.0157 | 0.0002 | 88516.0 |
| 25 | 0.4547 | 0.1624 | 106.19 | 55 | 0.0140 | 0.0002 | 112481.2 |
| 26 | 0.4039 | 0.1281 | 134.59 | 56 | 0.0124 | 0.0001 | 111714.1 |
Parameters:
| Place of Origin | Jiangsu,China |
| Brand Name | SYH |
| Model Number | SYH-CW007 |
| Application | Automotive,Electrical,Industry,Home application |
| Connectors | 1.25mm pitch connector |
| Wire | 24awg |
| Wire length | 100mm or According to the customers' requirements |
| Wire Color | Black red or According to the customers' requirements |
| MOQ | Small quantity can be accepted |
| Sample | Sample can be provided for evaluating |
| Sevice | OED ODM accepted |
| Delivery Time | 3-15 days upon receipt of payment |
| Packaging | 100/200/300/500pcs per bag , then outside carton |
| Test | Professional breakover and pulling force test before goods sent out |
FAQ:
Q: When will you start to help design?
A: We sketch simple solution for initial discussion, after quotation and order placed then start to drawing and double confirm with client for the design.
Q:How can i get the price?
A:We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
Q:Can I buy samples placing orders?
A:Yes.Please feel free to contact us.
Q:What is your lead time?
A:It depends on the order quantity and the season you place the order.
Usually we can ship within 7-15 days for small quantity,and about 30 days for large quantity.
Q:What is your payment term?
A:T/T,Western Union,MoneyGram,and Paypal.This is negotiable.
Q:What is the shipping method?
A:It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.
Q:How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q:Do you accept to customize products(OEM)?
A:Yes,we custom wire harness for clients,just send us samples and drawing about the products you need.
Q:Can you meet with UL,ISO etc.?
A:Yes,we have UL,ISO,ROHS,TUV certificates,also can meet with clients special required about other certificates.
Q:How about samples cost?
A:We charge samples based on the products,but most samples are free.
Q:Any requirement about the MOQ?
A:Our MOQ based on products.But most products MOQ are about 100-300pcs.
Contact Person: Mrs. Eda Han
Tel: +86-18234096310
