Hard work, integrity, win-win cooperation

|
| Place of Origin: | JIANGSU,CHINA |
| Brand Name: | Sanyouhe |
| Certification: | UL、IATF、ISO |
| Model Number: | SYH-CW029 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | PE bag and Carton |
| Delivery Time: | 3-15 days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 50000 PCS/per week |
| Product Name: | Low-loss Copper Cable | Length: | 30 Cm |
|---|---|---|---|
| Connector: | IPX | Color: | Color Or Customized |
| Sample: | Available | MOQ: | Small Qty Can Accept |
| Express: | DHL FEDEX UPS TNT | Delivery Time: | 3-7 Days |
| High Light: | 30cm Automotive Wire Harness,IPX4 Automotive Wire Harness,50ohms Automotive Wire Harness |
||

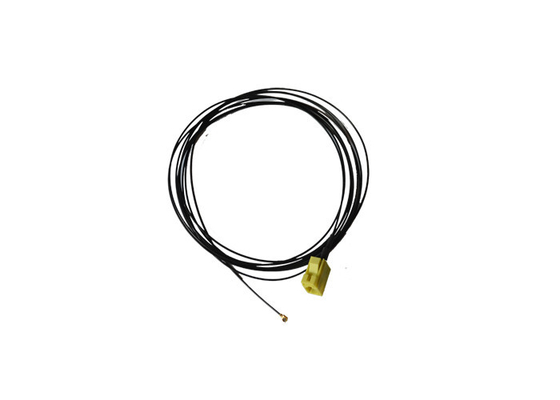

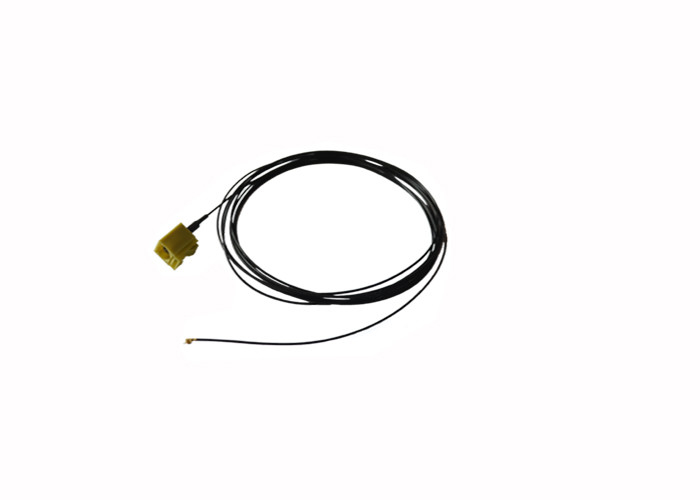

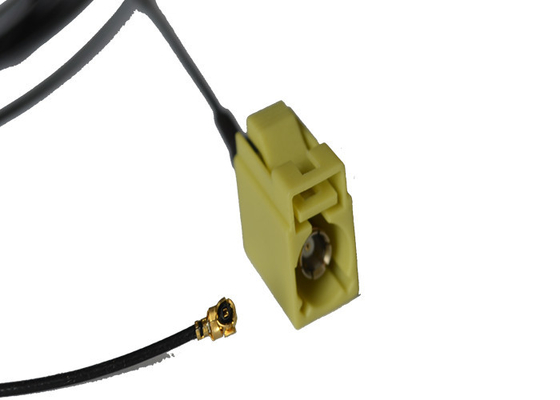

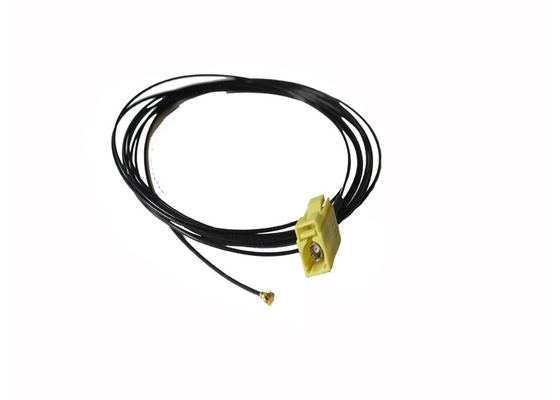

Signal Transmission IPX4 length 30cm Automotive Wire Harness for electronic equipment
Application:
Widely used in the electronic equipment production industry:
Communication equipment: communication monitoring video cable coaxial cable, radio frequency adapter cable, audio communication wire, network cable communication line,high-temperature shielded communication wire and cable, antenna feeder U.Fl Collect sensor data transmission cabinet identification module jumper.
GSM:
Gain(dBi) 3 dBi
Frequency 850/900/1800/1900/2100MHz
VSWR < 2.5
Polarization Linear Vertical
Cable Connector SMA PLUG
Coaxial Cable RG174 Length=3 (M)
Features:
1 for GPS/GSM wireless communications
2 RoHS compliant
3 Roof Screw mount
4 Multi Band
GPS :
Ceramic Path Specification:
Operating Frequency T1 1575.42±1.023 MHz
Output Impedance 50 ohms
Polarization R.H.C.P.
Bandwidth 10 MHz min. @S11<=-10 dB
Gain at 10° elevation -1 dBic Typ.
Axial Ratio 3.0 dB Typ.
LNA/Filter Specification:
Operating Frequency T1 1575.42±1.023 MHz
Gain 28 Db Typ.
Output VSWR 2.0 Max
Voltage 2.3~5.5V
Current 2.5V : 6.6mA Typical
3V : 8.6mA Typical
4V : 12.6mA Typical
5V : 16.6mA Typical
Description box :
| Model Number | SYH-C101 |
| Connector | IPX4 |
| Wire length | 10/20/30 CM |
| Wire color | Black |
| Drawing | Available |
| Sample | Available |
| MOQ | Small quantity can be accepted |
| Packaging | PE bag/carton |
| Delivery Time | 3-15 days |
| Application | Signal transmission |
| Place of Origin | Jiangsu,China |
| Certification | ISO9001/ISO14001/ROSH/Reach |
Target Markets :
FAQ :
Q1.Do you provide sample?
A1:Yes,After the drawing and quotation is confirmed, an appropriate amount of samples can be provided for testing..
Q2:Can some special treatment be done according to my requirements?
A2:In the case of ensuring product quality, try to meet these requirements
Q3:Can the color of the wire be customized?
A3:The wire is generally black, please consult for details
Q4:What channels can I use to get a quote?
A4:You can click the message box to chat with us,and tell us more details about the product you want,and we can offer an accurant quotation for you .
Other fields :
Application:
The wires are widely used in the electronic equipment production industry:
1. Medical equipment industry application: electronic blood pressure meter, electronic blood glucose meter display equipment, oxygen inhalation machine, blood oximeter, oxygen generator, surgical shadowless lamp and other equipment assembly.
2. Car assembly: speaker wire harness, car audio wire harness, car light group connection, navigation radar wire harness, car computer mainframe connection, cigarette lighter point power adapter wiring harness, etc.
3. Consumer electronics: personal computers, computer motherboards, game consoles, projection equipment, hair dryers, smart homes, stereos, range hoods, dishwashers, vacuum cleaners, etc.
4. Industrial control device: road and bridge control toll system, environmental protection monitoring equipment, intelligent traffic control system, building security monitoring system, call center, CNC machine tool and other assembly wiring harness.
5. Communication equipment: communication monitoring video cable coaxial cable, radio frequency adapter cable, audio communication wire, network cable communication line, high-speed network jumper RJ45 computer network broadband cable, high-temperature shielded communication wire and cable, antenna feeder U.Fl Collect sensor data transmission cabinet identification module jumper.
