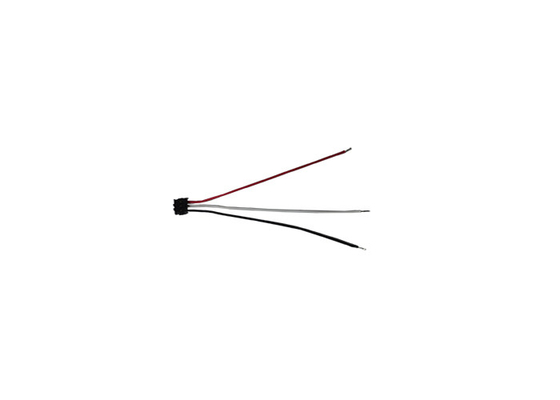

Warm-controlled radiator 3 Pin female plug connector 1.0 mm pitch length of 30 mm

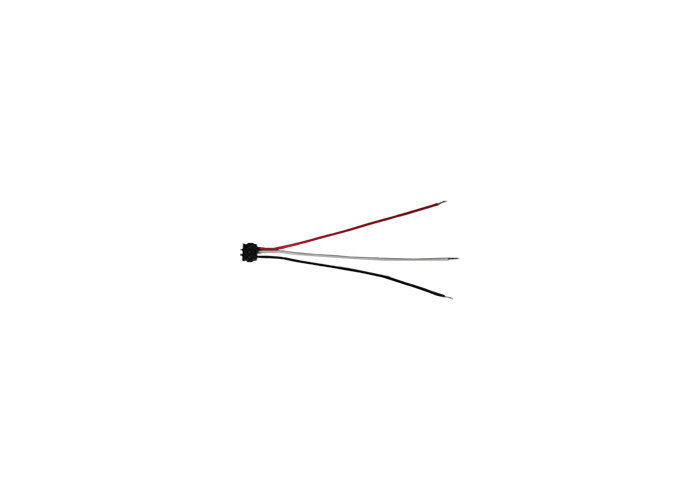

Warm-controlled radiator 3 Pin female plug connector 1.0 mm pitch length of 30 mm

Product composition :

Wire parts :

.

The composition of the wire:

Conductor: copper wire
Insulator: PVC, SR-PVC, PP, FOAM-SKIN
Isolation layer: aluminum foil, insulating tape, woven tape, etc.
Cover: PVC, PU, etc.

Plastic parts :

The sheath (plastic shell) is usually made of plastic. Insert the wire of the crimped terminal into it to ensure the reliability of the connection. The materials are mainly PA6, PA66, ABS, PBT, PP, etc.

The sheath (HSG) is divided into F (female) plastic shell and M (male) plastic shell. Most of these shells are equipped with a lock mechanism shared by F/M.

Termianal parts :

A shaped hardware component, crimped on the wires to connect different wires to transmit signals, divided into male terminals, female terminals, ring terminals and round terminals.

The materials are mainly brass and bronze (the hardness of brass is slightly lower than that of bronze), of which brass accounts for a larger proportion.

Annex :

Complicated wiring harness composition needs to be added: tape, cable tie, sleeve, sheath, label, Seal (sealing ring) , Waterproof plug , etc.

Customer groups :

manufacturing, electronics, communications and other electrical appliances manufacturing and assembly companies

Information that needs to be confirmed before order :

1. Pitch of the connector ;

2.Type of terminal ;

3.How to handle the sides of the wire;

4.How many pins is needed ;

5.Length of the wire ;

6.Color of the wire

Terms of payments :

Telegraphic Transfer；Documents against Payment；Documents against Acceptance.

Delivery timeframe :

Estimated according to the time and quantity of the order, the specific time will be given after the order is placed ,

usually 5-15 days, and the delivery time of complex products will be extended accordingly .

FAQ :

Q1.Can I use the connector I provided to make this harness?

A1.Yes, al of our wiring harnesses can be customized

Q2.There is only a preliminary idea. Can you help design it?

A2.Our designers have a wealth of circuit design plans, can inform us of the design drawings and requirements,

and we will provide you with circuit solutions.

Q3.What certificate does your product have ?

A3.We have ISO9001/ISO14001/ROSH/Reach certificate

About us :

  Our company is located in Kunshan City, Jiangsu Province, less than 2 hours drive from Shanghai Pudong International Airport and close to the port. Our company has been serving the electronics industry for 6 years and has provided circuit solutions for many domestic electronics industry manufacturers. We provide services to manufacturing, electronics, communications and other electrical appliances manufacturing and assembly companies.
