| Place of Origin: | JIANGSU,CHINA |
| Brand Name: | Sanyouhe |
| Certification: | UL、IATF、ISO |
| Model Number: | SYH-CW129 |
| Minimum Order Quantity: | 500 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | PE bag and Carton |
| Delivery Time: | 3-15 days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 5000 PCS/per week |
| Material: | Nylon, PBT, Copper，PVC | Pitch: | 2.54 Mm |
|---|---|---|---|
| Pins: | 5 Pins | Length: | Customized Length |
| Color: | Color Or Customized | Connector: | Customized |
| Sample: | Available | Express: | FedEx UPS EMS TNT DHL |
| Delivery Time: | 3-15 Days | Customized: | Available |
| Highlight: | 600V Flat Cable Wiring Harness,Pitch 1.2mm Cable Wiring Harness,PBT Cable Wiring Harness |
||

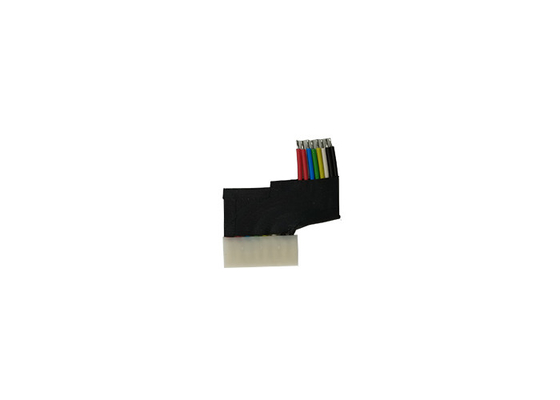

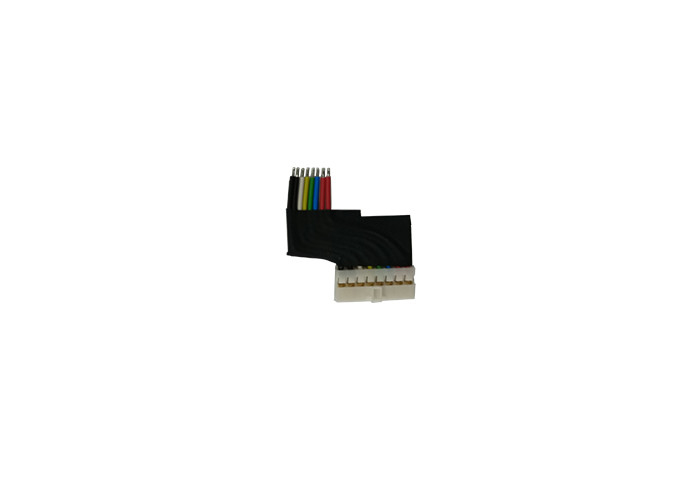

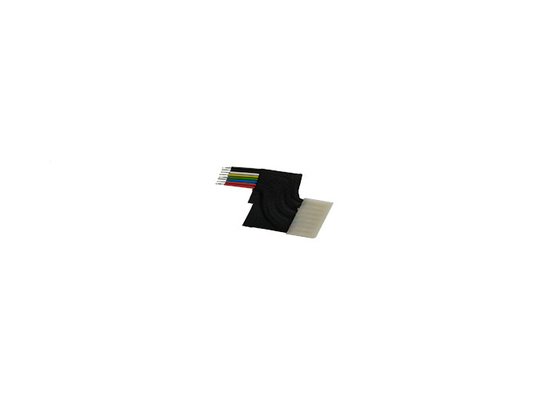

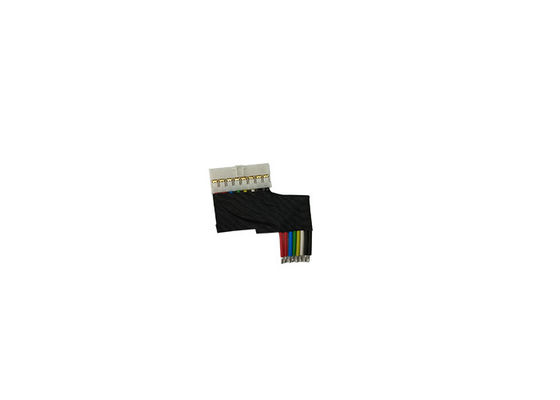

Pitch 1.2 mm flat cable 8 pins for Power supply connection customized size
Product property:
| Model No. | SYH-CW129 |
| Wire core material | Bare Copper Wire |
| Brand Name | Sanyouhe |
| Place of origin | Jiangsu,China |
| Plated | Customized |
| Wire | Customized |
| Material | Customized |
| Usage | Power supply connection |
| Connector type | SYH cables |
| Body | Brass |
| Length | Customized |
| Certification | RoHS,CE,ISO9001 |
Specification :
Rated temperature:150ºC
Rated voltage:600V
According to:UL Subject758,UL1581,C22.2
Nickel plating or tin/bare copper conductor
FEP Insulation
Passes UL VW-1&CSA FT1 vertical flame test
Uniform insulation thickness of wire to ensure
easy stripping and cutting
For general purpose internal wiring of appliance
Optional wire gauge:
| AWG | NO.of Cond | Conductor resistance 20ºC | Conductor Dia | Insulation Thickness | Overall Diameter | ||
| (mm) | (Ω/KM) | (mm) | (mm) | (mm) | |||
| Nom. | Min. | Nom. | Tol. | ||||
| 10 | 37/0.42 | 3.54 | 2.94 | 0.35 | 0.33 | 3.6 | ±0.15 |
| 12 | 37/0.374 | 5.64 | 2.62 | 0.35 | 0.33 | 3.32 | ±0.15 |
| 14 | 19/0.361 | 8.96 | 1.85 | 0.35 | 0.33 | 2.6 | ±0.10 |
| 16 | 19/0.287 | 14.6 | 1.5 | 0.35 | 0.33 | 2.2 | ±0.10 |
| 18 | 19/0.235 | 23.2 | 1.18 | 0.35 | 0.33 | 1.9 | ±0.10 |
| 20 | 19/0.19 | 36.7 | 0.95 | 0.35 | 0.33 | 1.65 | ±0.10 |
| 22 | 19/0.15 | 59.4 | 0.76 | 0.35 | 0.33 | 1.45 | ±0.10 |
| 24 | 7/0.2 | 94.2 | 0.61 | 0.35 | 0.33 | 1.3 | ±0.10 |
| 26 | 7/0.16 | 150 | 0.48 | 0.35 | 0.33 | 1.2 | ±0.10 |
| 28 | 1/0.32 | 227 | 0.32 | 0.35 | 0.33 | 1.02 | ±0.10 |
| 30 | 1/0.254 | 361 | 0.254 | 0.35 | 0.33 | 0.96 | ±0.10 |
FAQ :
1.Can you offer me a free sample?
Yes, after price confirmation, you can require for free samples but the freight should be paid.
2.How long to get the sample?
After you pay the freight and send us confirmed files, the samples will be ready for delivery in 3-7 days. Then they will be sent to you via express and arrive in 3~5 days.
3.What kinds of products does Sanyouhe make?
4. What kind of certifications do you have?
ISO9001:2015, IATF,UL,SGS
5. Which standards do you comply with when you produce the electrical wires and cables?
We are able to produce electrical wires and cables based on GB, JB, IEC,UL/CSA,BS,DIN,EN,ASTM,AS/NZS. Meanwhile, we can design and manufacture the cables according to the samples and technical specification you supply.
Supplementary information :
SYH cables are widely used in DVD,VCD,TV,Radio, Tape recorder, CD player with speakers, Amplifier machine connection and transmission of Audio and Video signals. Renhotec offers a varity of selections of SYH cabLes.Besides standard cables, we also offer customized cable. If you have any need for SYH cables, please do not hesitate to contact us!
