CONNECTING US TO BUILD OUR FUTURE

|
| Place of Origin: | JIANGSU,CHINA |
| Brand Name: | Sanyouhe |
| Certification: | UL、IATF、ISO |
| Model Number: | SYH-C122 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | PE bag and Carton |
| Delivery Time: | 3-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 50000 PCS/per week |
| Product Name: | Medical And Automation Equipment Wire Harness | Interface Type: | Rectangle |
|---|---|---|---|
| Shape: | Rectangular | Pitch: | 1.0 Mm |
| Color: | Nature Or Customized | Length: | Customized |
| Matreial: | PVC Copper | Sample: | Available |
| MOQ: | Small Qty Can Accept | Express: | Fedex UPS DHL TNT EMS |
| High Light: | 60mm Medical Wire Harness,4 Pin Medical Wire Harness,PVC Copper Medical Wire Harness |
||

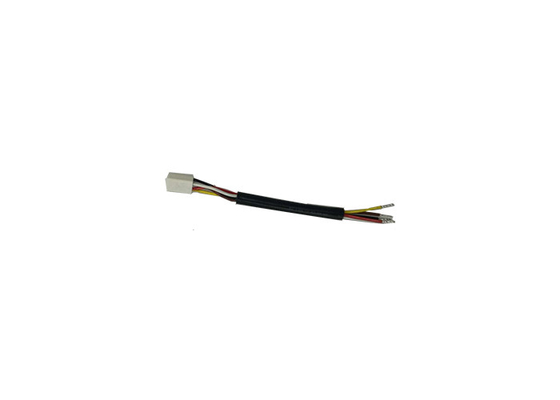

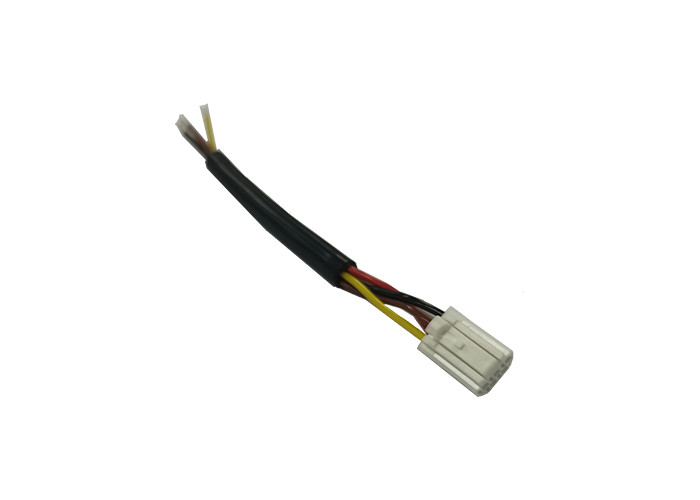

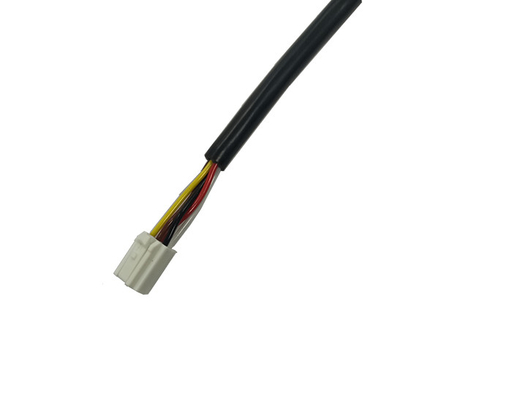

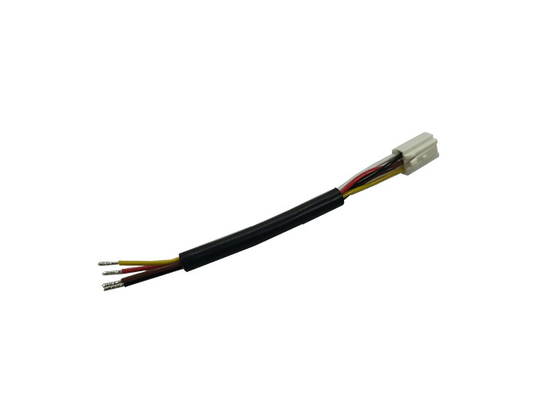

4 pin 60 mm length Medical and Automation Equipment Wire Harness
Consistent performance and the greatest possible prevention of equipment failure are very important in the medical field. These medical devices must be connected to the high reliability of the wire harness and cable, Sanyouhe wiring harness products has in this has a most stringent regulatory requirements and the most demanding requirements of industry repeatedly proved his.
Related Info.
| Product name | Industrial Wiring Harness |
| R&D ability | Customized wiring according to your samples or drawings. |
| Cable materials | Wire harness can be UL/CSA,CE, VDE,SAA,CB etc |
| Cable certificate | UL, CSA, VDE, CE, RoHS, ISO9001 |
| Connector Type Range | Deutch, JAE, Hirose, Molex, AMP, LEMO, etc, base on customer's request |
| Application | Industrial, Automation, Medical, Automotive, Consumer Electronics etc. |
| Cable preparation | Trimmings, Stripping, Tin coating, Twisting |
| Cable color,length | According to the customers' requirements |
| Application | Automotive,Electrical, Industry, Medical |
| Service | OEM and ODM products are acceptable |
| Design ability | We can supply sample,OEM&ODM is welcome |
| MOQ | Small MOQ and trial order are welcome |
| Samples | Samples confirmed first before mass production |
| Engineering service | Development and early Design in support, analysis 2D or 3D drawings |
| Final assembly | Bolting,Binding,Shrinking,Extruding,StrainRelief Molding,Inner and Outer Molding |
| Quality Control | 100% inspected before dispatching. |
| Packaging | Inner PE bags with label, outside carton |
| Delivery Time | 10- 20 days |
| Payment | PayPal, Western Union, L/C, T/T |
REFERENCE INFORMATION
Packaging: Tray
UL File No.: UL-94 HB Flame Rating
Mates With: 160013 Header mates with 160014
Receptacle
Designed In: Millimeters
Keying Options: 4
Color:
Header: Grey
Receptacle: Dark Grey, Light Green,
Light Grey and Black
ELECTRICAL
Voltage (max.): 500V DC
Current (max.):
0.50mm: 4.0A
1.20mm: 12.0A
Contact Resistance (max.):
0.50mm: 25mΩ
1.20mm: 13mΩ
Isolation Resistance (min.): 100MΩ
MECHANICAL
Mating Force (max.): 75N
Polarization Effectiveness (min.): 185N
Terminal Retention (min.):
0.50mm: 15N
1.20mm: 50N
Durability: 10 cycles
PHYSICAL
Housing: 30% Glass-Filled SPS
Cable Jacket: TPU
Metal: C26000 Brass
Contact Plating:
0.50mm: Tin (Sn) over Nickel (Ni)
1.20mm: Tin (Sn - Matte for PCB) over Nickel (Ni)
Operating Temperature: -40 to +85°C
Vibration: GMW3191 (On-Body)
FAQ :
Q: Is the product in stock? How long production cycle?
A: Some products are in stock, Small batch production for 1-2 weeks,Mass production for 3-4 weeks.
Q: How long is the product warranty and service?
A: The product is valid for 1 year and is a lifetime technical support service.
Q: Can you customize the product? what do you need?
A: We can customize as needed, and the quantity has a minimum order quantity requirement.
Q: Can you provide drawings and related procedures?
A: We can provide drawings and procedures for customers to confirm.
Q: Are you a trader or a factory?
A: We are manufacturers, have production trademark and production workers.
Q: Can you produce on the OEM?
A: Yes, we can.
Q: How do you manage product quality?
A: The products are baked, aging, electrical measurement and other procedures for testing.
