| Place of Origin: | JIANGSU,CHINA |
| Brand Name: | Sanyouhe |
| Certification: | UL、IATF、ISO |
| Model Number: | SYH-CW106 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 100/200/300/500pcs per bag , then outside carton |
| Delivery Time: | 3-15 days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 35000 PCS/per week |
| Product Name: | Wire Harness For Assembly | Material: | PBT |
|---|---|---|---|
| Terminal: | C2680 | Contact: | Silver Alloy |
| Bracket: | C2680 | Color: | Red Or Customized |
| Length: | Customized Length | MOQ: | Small Qty Can Accept |
| Sample: | Available | Express: | Fedex UPS DHL TNT EMS |
| High Light: | Dustproof Wire Harness,Microswitch Wire Harness,250V Wire Harness |
||

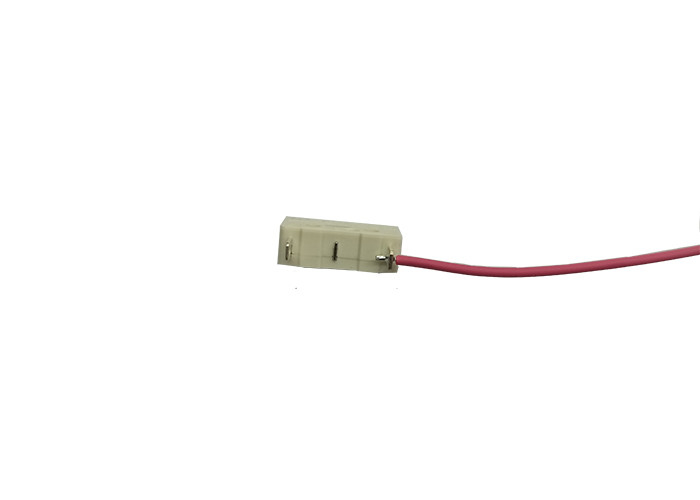

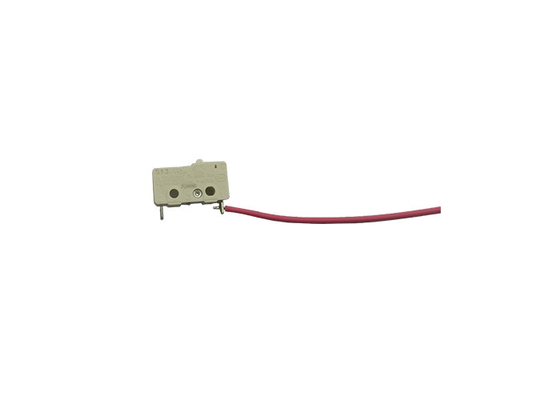

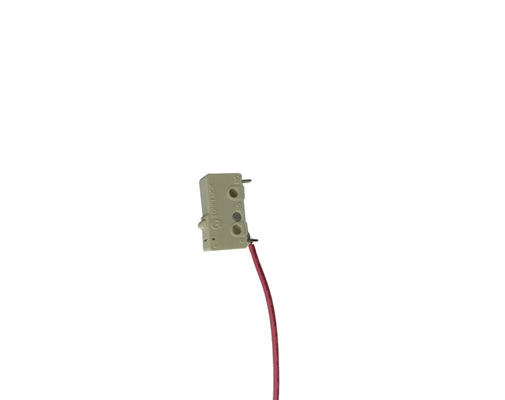

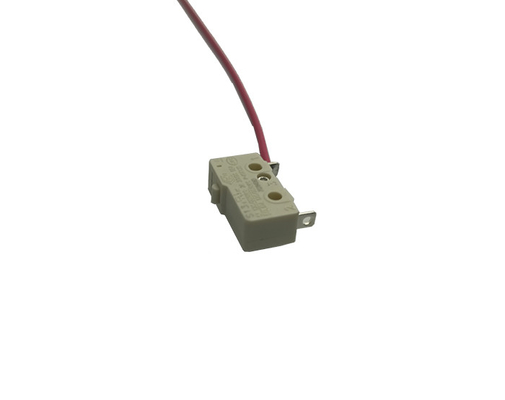

125-250V Microswitch Dustproof Harness for Game machine and household appliances
Product description:Microswitch Dustproof Harness
| Rating | 3A, 8A, 16A/250VAC, 125VAC 0.6A/125VDC 0.3A/250VDC | |
| Initial contact resistance | ≤25mΩ | |
| Initial insulation resistance ( At 500V DC) | ≥100mΩ | |
| Dielectric strength | Between non-consecutive terminal | 1000Vrms, 50/60Hz, 1min |
| Between current carrying and non-carry metal parts | 1500Vrms, 50/60Hz, 1min | |
| Between ground and each terminal | 1500Vrms, 50/60Hz, 1min | |
| Max. Shock resistance | Mechanical durable | 1000m/s2 |
| Malfunction | 300m/s2 | |
| Vibration resistance | 10-55Hz, 1.5mm double amplitude | |
| Expected life | Mechanical | 20000000 |
| Electrical | 100000 | |
| Ambient temperature | -25 to +85 | |
| Ambient humidity | 85%RH max | |
| Operating frequency | Mechanical | 60 times/min |
| Electrical | 25 times/min | |
| Operation speed | 0.01mm-1m/s | |
Technical Specifications:
| Operating Speed | 0.1mm-1m/s | Operating frequency | Mechanical | 600times/min |
| Insulation resistance | 100MΩAbove DC500V | Electrical | 30times/min | |
| Contact resistance | 25mΩ initial value | Withstand voltage | Non-connection wire | 1000VAC |
| Protection degree | IP40 | Every terminal | 1500VAC | |
| Operating temperature | -25~+80ºC | Impact | Durable | 1000m/s² |
| Operating humidity | <85% | Misoperation | 300m/s² | |
| Vibration Misoperation | 10-55Hz Amplitude 1.5mm | Life | Electrical | 100,000 above |
| Mechanical | 1,000,000 above |
Characteristic & Using :
1. Sate, reliable basic switch ;
2. Nice appearance,tight contiguration.Charactenistic:small contact dlearance,quick action, high sensitivity and small 3.operating travel ;
4. Long lite, high reliablity ;
5. A variety of contact terminals ;
6. A varnety of temperature degree ;
7. A variety of levers ;
8. Adopt themosetting plastic or themoplastic ;
9. Widely usedinhome apliane elecroninc equipmentautomatic machine communication equioncar electron,apparatus and instument,electric motion tool etc.
About us :
Suzhou Sanyouhe Electronic Technology Co.,Ltd. is located in Kunshan City,Jiangsu Province, southeast coast of China. It is a professional wire harness manufacturer integrating product R & D, production, sales and after-sales service. Its products cover more than 10 countries and regions all over the country and internationally.The products are widely used in TV sets, soymilk machines, microwave ovens, rice cookers, fruit Juicers and other household appliances, automobiles, electric tools .
The company's main products are customized products. It is a high-tech enterprise integrating R & D, production and sales. The company attaches great importance to the construction of quality management system, and has passed ISO9001 system certification, some products have passed UL, CQC, CE, VDE certification, and has RoHS product testing room and product reliability testing laboratory.
