| Place of Origin: | JIANGSU,CHINA |
| Brand Name: | Sanyouhe |
| Certification: | UL、IATF、ISO |
| Model Number: | SYH-CW026 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 100/200/300/500pcs per bag , then outside carton |
| Delivery Time: | 3-15 days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 35000 PCS/per week |
| Product Name: | Custom Wiring Harness | Pitch: | 1.0 Mm |
|---|---|---|---|
| Pins: | 20 Pins | Length: | 120 Mm Or Customized Length |
| Wire Color: | Color Or Customized | Wire Gauge: | From 18AWG-48AWG |
| Cover: | Acetate Tape | Cable Color: | Cable Color |
| Connectors: | JAE, HRS, JST, AMP, Dupont, I-pex, Molex, YH, ACES, FCI, DDK, UJU, JWT, Panasonic Connectors. | Sample: | Available |
| High Light: | 30AWG Flat Flexible Wire Harness,20 Pin Flexible Wire Harness,1.0mm Pitch Wire Harness |
||

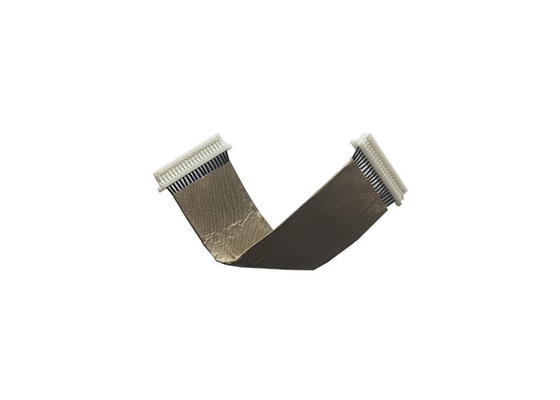

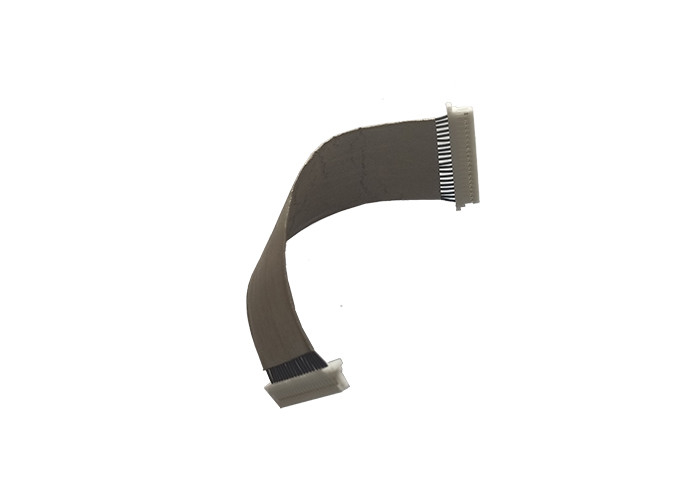

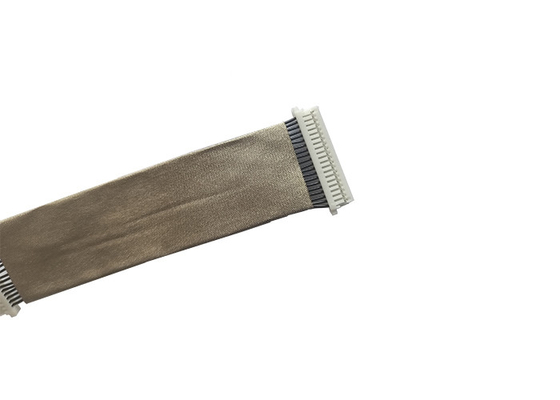

20 pin 30AWG Small Resistance Flat Flexible Wire Harness for LED and Computer
Basic Information :
| Cable type | 22AWG,24AWG,26AWG,28AWG,30AWG,32AWG |
| For Micro Coaxial Cable 34AWG,36AWG,38AWG,40AWG,42AWG,46AWG | |
| Cable color | Any colors |
| Connectors | JAE, HRS, JST, AMP, Dupont, I-pex, Molex, YH, ACES, FCI, DDK, UJU, JWT, Panasonic connectors. |
| Cable Length | As requested |
| Processing ways | Crimping, pressing and soldering types. |
| Pin out connection | As per customer's request(customer can send the datasheets of LCD and mainboard to us). |
| Connector pitch range | 0.25mm-5.08mm |
| Features | Good transferring, clearly pictures, no shaking, and transfer issues |
| Advantages | Manufacturing factory; |
| Competitive price and quality; | |
| Short lead time. | |
| Applications | LCD/Display/Advertising machine/Phone/Laptop/Computer/PDA |
| Camera/LCM/Notebook/tablet PC/ HDD | |
| ISO certificate | ISO9001:2008 |
| Service | OEM/ODM products are acceptable. |
| More information | ISO/RoHS/UL |
| Performance Test: | 100% electrical and electricity performance test |
| Rohs of wire harness | All parts and processing is compliant with ROHS |
| Wire Harness Materials | wire harness can be UL/CSA,CE, VDE,SAA,CB etc; |
| Color of Wire harness | According to the requirements of customers |
| Length of Wire harness | As per customer's request |
| Connector Type | TYCO/DELPHI/Bosch/Deutsch/Yazaki/Sumitomo/FCI replacements |
| OEM | Large and small OEM's custom wire harness |
| Service | OEM and ODM products are acceptable. |
| More information | Sample confirm first before mass production |
Wire Type: UL 1007, UL1015, UL 2725, etc.
Length: Customized
Color: white, black or customized
Connector Brand: MOLEX, Tyco, JST, JAE, AMP or Equivalent
Connector pitch: 0.1mm-4.2mm
Application: Automotive, Electrical, Industry, Home appliance
MOQ: Small order can be accepted,Even Trial order less than 100pcs.
Sample Will provide the sample for confrim before mass production
Lead Time: Small order under 500pcs is 7-10 days,exceed 1000pcs is 2 weeks
ISO certificate: ISO9001:2015 /ISO14001
RoHS Directive-compliant
Solder acceptance criteria per IPC-A-610
Why choosing us :
1)Professional wire harness manafacturer for automotive, home appliance, Electronic, industrial control, medical and so on.welcome OEM/ Custom spefications too.
2)Our wire can be UL/VDE/CEA/CCC/CE cerficates, all Rohs. Our production line have got TS16949/ ISO2000 certificates.
3) We accept OEM/ODM design, welcome any customized cable too, whenever you have 100pcs or 100K pcs demand, we will reply you fastly and quote you best prices we can.
4) Strict quality control, Passed TS 16949 Quality control system, All the products are 100% test before delivery.
Scope of application :
1. Displayer；2. PC and Computer；3. Flat screen TV
4. Printer, Scanner, FAX machine, Copier.；5. Sound Box
6. MP3, MP4；7. CD/ DVD
8. Digital camera；9. Fax machine and copier
10.Scanner；11. Acoustics
12. Tablet PC；13.toy for children
If you can't find the exact product you need in the pictures,please don't go away.Just contact me freely or send your sample and drawing to us.We will reply you as soon as possible.
