Hard work, integrity, win-win cooperation

|
| Place of Origin: | JIANGSU,CHINA |
| Brand Name: | Sanyouhe |
| Certification: | UL、IATF、ISO |
| Model Number: | SYH-CW113 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 100/200/300/500pcs per bag , then outside carton |
| Delivery Time: | 3-15 days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 35000 PCS/per week |
| Length: | 30 Cm | Color: | Yellow |
|---|---|---|---|
| Rating Voltage (V): | 30V | Rated Temperature(ºC): | 105 ℃ |
| Specification: | PVC | UL Rating: | UL2896 |
| Flat Cable:: | 15 Way | Pitch: | 1 Mm |
| High Light: | Ribbon FFC Flat Flexible Cable,1.00mm Pitch FFC Flat Flexible Cable,AWM 21016 Wire Harness Assembly |
||

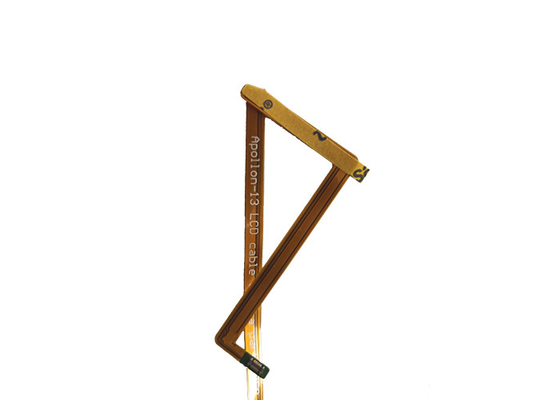

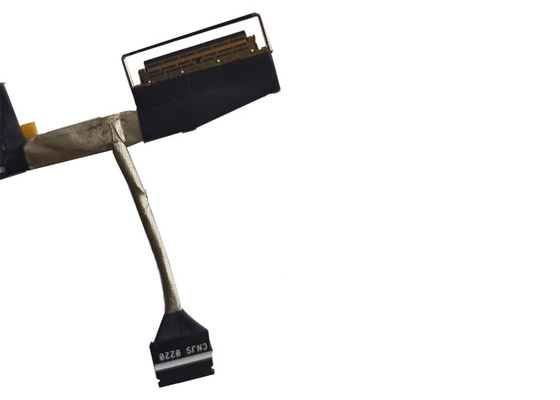

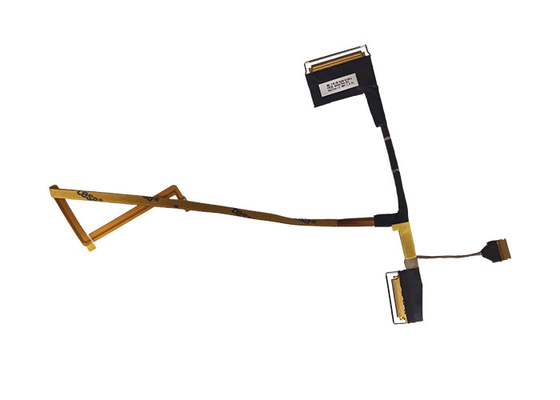

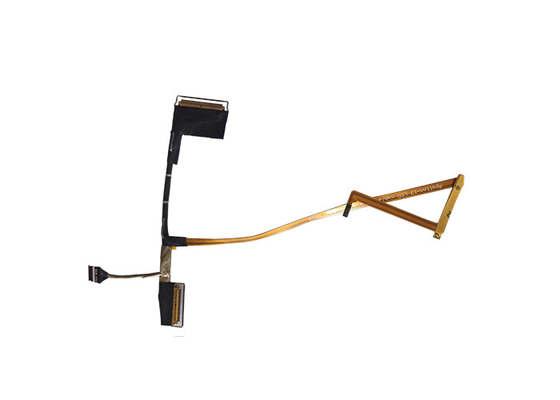

1.00 mm Pitch Custom Ribbon FFC Flat Flexible Cables Awm 21016 105º C 30V
Flat ribbon cable classification
According to the purpose of use:
●Flame-retardant flexible cables for film and television lighting equipment are widely used in theaters, stadiums, stages, KTV, theatrical performance venues, theaters, studios, demonstration halls, smart conference rooms, multimedia conference rooms, exhibition halls, booths, theaters, television stations, concert halls , Great Hall, Mobile Performance Place, Multimedia Distance Education Institute, Stadium, Intelligent Building Intercom System, Karaoke Entertainment Place, Electroacoustic Control System, Public Address System.
●Flame-retardant flexible cables for stage lighting equipment
●Fire-retardant flexible cable for photographic light source
Infomation table :
| Range of Application | Electronic and Electrical Equipment and Appliance |
| Certification | ISO9001, UL, CCC, RoHS, cUL,IATF 16949 |
| Rating Voltage (V) | 300V |
| Rated Temperature(ºC) | 105ºC |
| Flame Test | VW-1 & FT1 |
| Standard | UL758, UL1581, CSA C22.2 No.210 |
| Specification | UL21016 |
| Origin | China |
Avaliable for choose :
| Conductor | Insulation | Max. Cond Resistance at 20°C | ||
| AWG | Construction | Diameter | Diameter | (Ω/km) |
| (No./mm) | (mm) | (mm) | ||
| 2 | 28 | 7/0.127 | 0.90x1.90 | 239 |
| 3 | 28 | 7/0.127 | 0.90x2.90 | 239 |
| 4 | 28 | 7/0.127 | 0.90x3.90 | 239 |
| 5 | 28 | 7/0.127 | 0.90x4.90 | 239 |
| 2 | 26 | 7/0.16 | 1.00x2.10 | 150 |
| 3 | 26 | 7/0.16 | 1.00x3.20 | 150 |
| 4 | 26 | 7/0.16 | 1.00x4.30 | 150 |
| 5 | 26 | 7/0.16 | 1.00x5.40 | 150 |
| 2 | 24 | 7/0.20 | 1.12x2.34 | 94.2 |
| 3 | 24 | 7/0.20 | 1.12x3.56 | 94.2 |
| 4 | 24 | 7/0.20 | 1.12x4.78 | 94.2 |
| 5 | 24 | 7/0.20 | 1.12x6.00 | 94.2 |
| 2 | 22 | 17/0.16 | 1.28x2.66 | 59.4 |
| 3 | 22 | 17/0.16 | 1.28x4.04 | 59.4 |
| 4 | 22 | 17/0.16 | 1.28x5.42 | 59.4 |
| 5 | 22 | 17/0.16 | 1.28x6.80 | 59.4 |
| 2 | 20 | 26/0.16 | 1.46x3.02 | 36.7 |
Main Products :
UL/cUL AWM Wires&Cables, Automotive Wire, Industrial Wire, Hook-up&Lead Wire, Solar Cable(PV Wire), Heating Wire, FFC Wire, Flat Ribbon Cable, BV, RV, BVR, RVV, RVB, AVVR, RVVP, USB Cable, HDMI, DVI, VGA, Cable Assembly, Wire Harness and so on.
Packing & Shipping :
Customize branded packaging can be provided,safe packing or any other requested package.
Shipping: We will do the aging testing before send out the goods. Use high quality package to make sure it can deliver perfectly.
Our Service :
1. Custom preparations and packaging are available.
2. Free samples can be offered for testing.
3. ONE YEAR warranty.
4. We have our own factory in Suzhou Hunan,we can enhance you good quality and competitive price.
5. We insist on that your satisfaction is first, we are keeping on high Efficiency and Instant Response.
FAQ :
1. How could I buy the products I need if there is no price in the website?
Buyers need to send required product details via e-mail, and then a reasonable quotation as request would be provided.
2. How long could I get reply of my inquiry?
Buyers will get a reply within 24 hours.
3. How is the after sales service?
Buyers updated market information regularly.
4. What are the terms of payments you offer?
Payment of the goods should be set in USD or other Currency on the basis of goods exchanging.Payment of T/T, Western Union, PayPal,Cash,HSBC etc. would be accepted.
5. What kind of transportation methods you offer?
A. For spare-parts, using express delivery like DHL, UPS, FedEx, TNT and EMS, these companies would offer us very good discounts. But if buyers provide us accounts of their own,transportation fee paid by such accounts are also welcomed.
B. For goods with large package, transportation would be offered by air and sea, and freight with buyers' prior delivery would be confirmed
