| Place of Origin: | JIANGSU,CHINA |
| Brand Name: | Sanyouhe |
| Certification: | UL、IATF、ISO |
| Model Number: | SYH-CW025 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 100/200/300/500pcs per bag , then outside carton； Inner packing : PE bag / Bubble paper / plastic box ； Outer packaging : Carton Box / Custom packaging / Pallet / Wooden box |
| Delivery Time: | 3-15 work days |
| Payment Terms: | L/C, T/T, D/P, D/A |
| Supply Ability: | 35000 PCS/per week |
| Conductor Material: | Copper | Insulation Material: | PE,PVC |
|---|---|---|---|
| Service: | OEM ODM Accept | Jacket: | Copper/pa66/pbt/high Temp |
| Color: | Color Or Customized | Core: | Multi-core |
| Type: | Low Voltage | Application: | Electronic |
| Length: | Customized Length | ||
| High Light: | AWM 2464 PVC Shielded Cable,Stranded 300V PVC Shielded Cable,300V Double Insulated Wire |
||

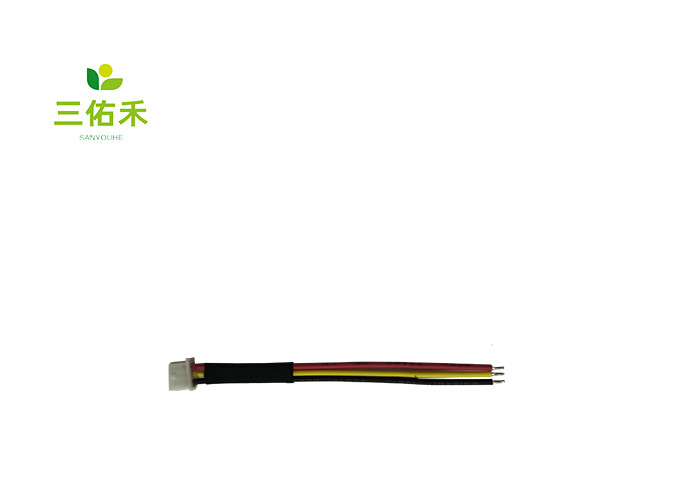

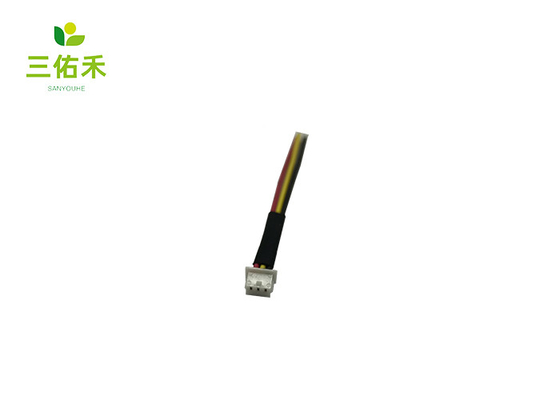

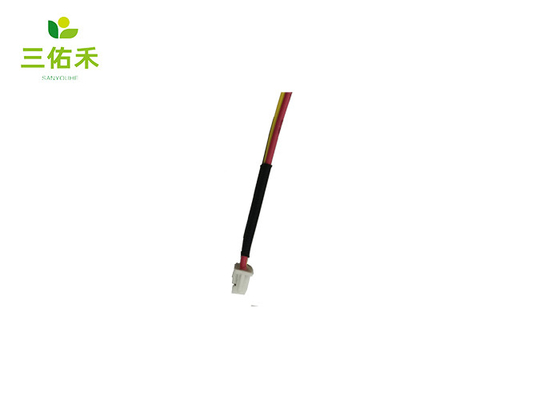

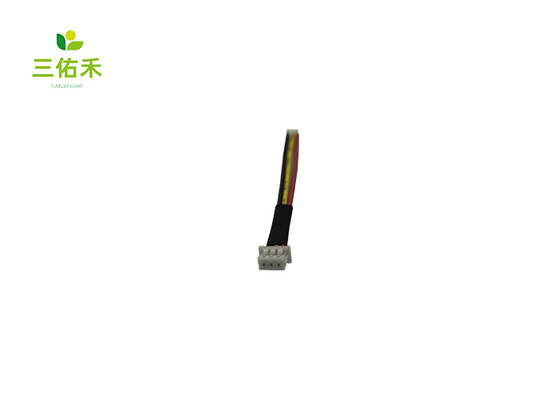

UL Wire Solid or Stranded, Multi Core 300V UL Awm 2464 Flexible Double Insulated PVC Shielded Wire Cable
| Basis Information : | |
| Model Number | SYH-C151 |
| Connector | 1.25mm pitch 6 pins or Customized |
| Wire | 26AWG or Customized |
| Wire length | 70mm or According to the customers' requirements |
| Wire color | Color or Customized |
| Drawing | available |
| Sample | available |
| MOQ | Small quantity can be accepted |
| Packaging | 100/200/300/500pcs per bag , then outside carton |
| Delivery Time | 3-15 days upon receipt of payment and quantity |
| Application | Automotive,Electrical,Industry,Home application |
| Brand Name | SYH(Suzhou Sanyouhe Electronic Technology Co.,Ltd.) |
| Place of Origin | Jiangsu,China |
| Certification | ISO9001/ISO14001/ROSH/Reach |
| Model Number | SYH-C101 |
| Connector | IPX4 |
| Wire length | 10/20/30 CM |
| Wire color | |
| Drawing | available |
| Sample | available |
| MOQ | Small quantity can be accepted |
| Packaging | PE bag/carton |
| Delivery Time | 3-15 days |
| Application | Signal transmission |
| Place of Origin | Jiangsu,China |
| Certification | ISO9001/ISO14001/ROSH/Reach |
PRODUCT DESCRIPTION
★Rated temperature:80ºC
★Rated voltage:300V
★According to:UL Subject758,UL1581,C22.2
★Solid or stranded,tinned or bare copper conductor
★PVC insulation
★Cores cabled under AL-MYLAR shield
★Tinned or bare stranded copper drain wire
★Tinned or bare stranded copper wire overall more
than 80% coverage braided shield
★PVC jacket
★Passes UL VW-1&CSA FT1 vertical flame test
★Uniform insulation thickness of wire to ensure
easy stripping and cutting
★Sound broadcast,audio,instrumentation & computer
| Conductor | Finished product | ||||
| AWG/NO.OFCOND | NO.of Cond | Insulated Thick. | Braid shield | Jacket Thick. | Outside Thick. |
| No./mm | mm | m/n/d | mm | mm | |
| 24×2C | 11/0.16 | 0.25 | 16/4/0.10 | 0.80 | 4.35 |
| 24×3C | 11/0.16 | 0.25 | 16/4/0.10 | 0.80 | 4.50 |
| 24×4C | 11/0.16 | 0.25 | 16/5/0.10 | 0.80 | 4.80 |
| 24×5C | 11/0.16 | 0.25 | 16/6/0.10 | 0.80 | 5.10 |
| 24×6C | 11/0.16 | 0.25 | 16/6/0.10 | 0.80 | 5.45 |
| 24×7C | 11/0.16 | 0.25 | 16/6/0.10 | 0.80 | 5.50 |
| 22×2C | 17/0.16 | 0.25 | 16/5/0.10 | 0.80 | 4.75 |
| 22×3C | 17/0.16 | 0.25 | 16/6/0.10 | 0.80 | 4.95 |
| 22×4C | 17/0.16 | 0.25 | 16/6/0.10 | 0.80 | 5.30 |
| 22×5C | 17/0.16 | 0.25 | 16/7/0.10 | 0.80 | 5.65 |
| 22×6C | 17/0.16 | 0.25 | 16/8/0.10 | 0.80 | 6.05 |
| 22×7C | 17/0.16 | 0.25 | 16/8/0.10 | 0.80 | 6.10 |
FAQ :
1.Q: How could I buy the products I need if there is no price in the website?
Since our products are basically customized products, please tell us what you need for product connectors, terminals, wiring harness lengths and specifications, etc. We can all produce and process.
2.Q: Can you provide sample for test ?
Yes , we can make some sample for approval before mass production . The sample is free within a reasonable range,the buyer only needs to pay the freight fees.
3. Q: What if quality issues occur when customer discover?
A: Our quality and engineer team will positively respond for the quality issues with 72 hours, as we are intend to make long-stand strategy with customer and the value is to provide better service.
4. Q: Do you have any standard products to cut down customers lead time for prototype and tooling cost?
A: Yes, we have developed over 1000 sets of molds and some of them can be used for customer directly. Besides, we specialize in wire harness over 20 years with more than 5000 products
