| Place of Origin: | JIANGSU,CHINA |
| Brand Name: | Sanyouhe |
| Certification: | UL、IATF、ISO |
| Model Number: | SYH-N023 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 100/200/300/500pcs per bag , then outside carton |
| Delivery Time: | 3-15 days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 50000 PCS/per week |
| Connector: | PBT-HI-GF(10) Or Customized | Wire: | 8AWG Or Customized |
|---|---|---|---|
| Voltage: | AC600V DC600V | Lead Time: | 3-15 Days |
| Certificate: | RoHS,CE,UL,TUV,ISO | Color: | Customized |
| Wire Length: | 1000MM Or Customized | Feature: | Waterproof /Flame Retardant |

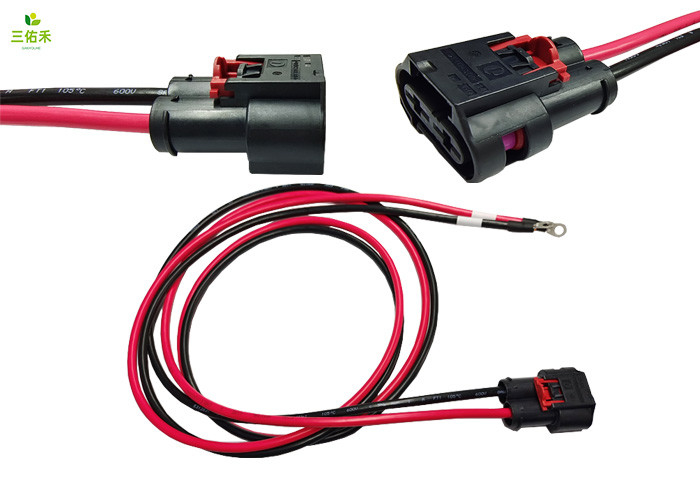

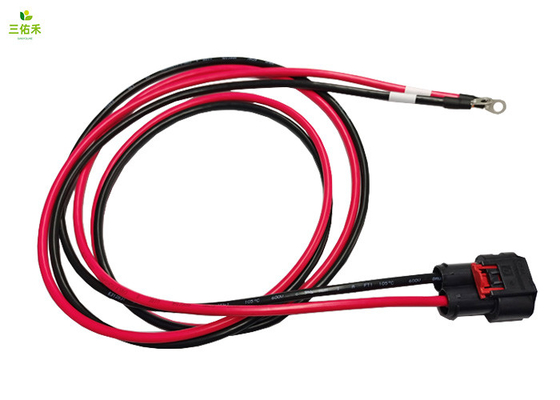

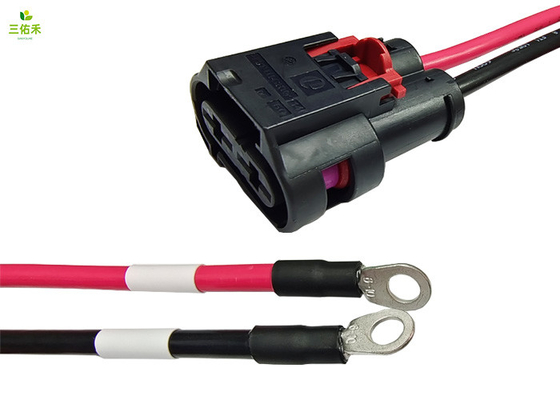

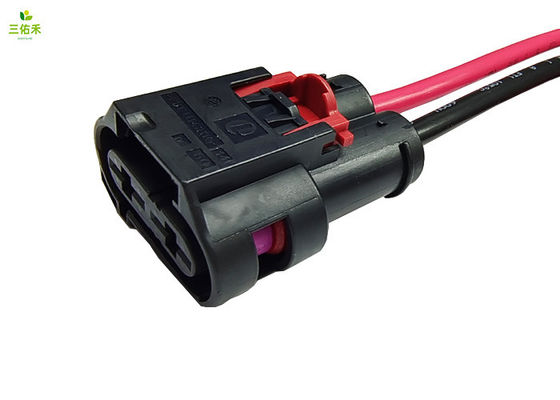

AC600V DC600V High Voltage Wire Harness PBT-HI-GF(10) Connector to O-ring Wire Harness New Energy Vehicle Wire Harness 8AWG Energy Storage Power Wire Harness
This customized wire harness is a new energy gas high-voltage wire harness. The connector uses PBT-HI-GF(10), and the wires are all 8AWG German standard high-voltage wires. Metallographic testing is required for terminal crimping, and all materials meet the requirements. ROSH requirements, in strict accordance with IPC620 standard processing, product performance is excellent and durable.
Application areas:
Renewable resources such as power systems, photovoltaic systems, wind power plants, and urban rail transit
Product performance:
The manufacturer selects high-quality materials, the product has strong flexibility, acid and alkali resistance, oil resistance, moisture resistance, mildew resistance, flame resistance, wear resistance, corrosion resistance, oxidation resistance, waterproof, dustproof, UV resistance and other characteristics, using high-quality environmental protection TPU material, strong insulation performance, wear-resistant and corrosion-resistant, long service life; high-quality wire core, high temperature resistance, fire and flame retardant, the wire body is strong and not easy to break.
About customization:
Similar wiring harnesses can be customized—the length, specifications, colors, etc. of the wiring harness can be customized according to your drawings or sample requirements, and one-to-one service for technical research and development; provide customers with free samples
Parameters:
| Shape | Strip |
| Insulation Material | PVC |
| IP waterproof degree | IP67 68 |
| Fire-proof degree | UL94 |
| MOQ | Small quantity can be accepted |
| Lead time | 3-15 days |
| Certificate | RoHS,CE,UL,TUV,ISO |
| Test | Professional breakover and pulling force test before goods sent out |
|
Color
|
Customized |
| Wire length | 1000mm or customized |
| Customized | Yes |
| Feature | Waterproof /Flame retardant |
| Insulation material | PVC / TPE / silicone or customized |
How to distinguish the quality of the harness? Understand the material of the wiring harness. The following is the material of wire harness selection.
The wiring harness is generally composed of wires, insulating sheaths, terminal blocks and packing materials.
1. Material selection of terminal
The copper used for terminal materials (copper parts) is mainly brass and bronze (brass is slightly lower in hardness than bronze), of which brass accounts for a larger proportion. In addition, different coatings can be selected according to different needs.
Second, the choice of insulating sheath
The commonly used materials of sheath material (plastic parts) are PA6, PA66, ABS, PBT, pp, etc. According to the actual situation, flame retardant or reinforcing materials can be added to the plastic to achieve the purpose of reinforcing or flame retardant, such as adding glass fiber reinforcement.
Third, the choice of wire harness
According to the different use environment, choose the corresponding wire material.
Fourth, the choice of dressing materials
Wire harness bandaging plays the role of wear resistance, flame retardant, anticorrosion, interference prevention, noise reduction, and beautification of appearance. Generally, the bandage material is selected according to the working environment and the size of the space. There are usually adhesive tapes, corrugated pipes, PVC pipes, etc. in the choice of packing materials.
Production Capacity:
We Make Around Five Million Crimps Per Month and We Have Ambitious Expansion Plans to Make Around Ten Million Crimps Per Month .
Competitivenes…
We Maintain Competitiveness with the Following Steps
Production equipment :
Fully Automatic Wire Cutting Striping and Crimping Machine
Wire Cutting and Stripping Machine
Multi Core Cable Cutting and De-sheathing Machine
Pneumatic Core Stripper
Wire Cutting Stripping and Twisting Machine
Microprocessor Based Battery Cable Cutting Machine
Pneumatic Cable Outer Jacket Removal Machine
Pneumatic Crimping Machine for Scattered Terminals
Semi Automatic Crimping Machines
Electronic Crimping Presses
Applicators
Toggle Crimping Machines
Wire Stripping and Twisting Machines
Soldering Station
Coupler Assembly Station
Air Compressor ( 3 Hp and 5 Hp)
25 Kva Generator
Microprocessor Based Harness Tester
