Place of Origin: | JIANGSU,CHINA |
Brand Name: | Sanyouhe |
Certification: | UL、IATF、ISO |
Model Number: | SYH-H016 |
Minimum Order Quantity: | Negotiable |
---|---|
Price: | Negotiable |
Packaging Details: | 100/200/300/500pcs per bag , then outside carton |
Delivery Time: | 3-15 days |
Payment Terms: | T/T, L/C, D/A, D/P |
Supply Ability: | 50000 PCS/per week |
Cable Length: | 3000mm Or Customized | Frequency: | 2400-2600MHZ |
---|---|---|---|
Standing Wave Ratio: | 1.5DB | Output Impedance: | 50(Ω) |
Connector Type: | SMA Or Customized | Gain: | 5DB |
Highlight: | 5DBI high dbi wifi antenna,2.4G high gain wireless antenna |

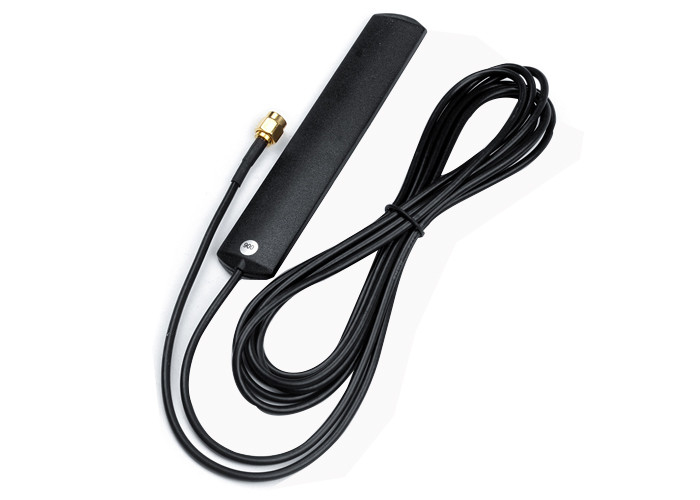

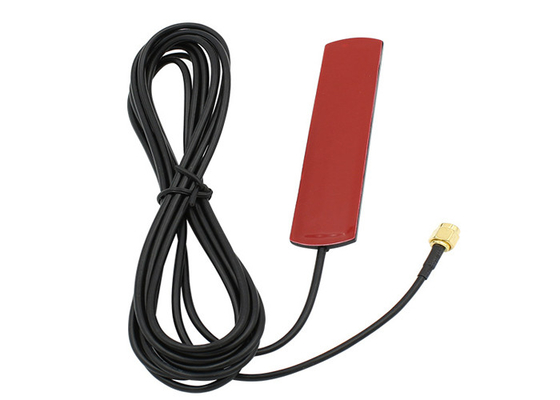

3000MM High Gain Wifi Antenna 5DBI SMA 2.4G SMD Wireless Antenna Car Navigation Wifi Antenna
Product information:
High-gain antennas can also be produced from parabolic antennas, phased arrays and yagi antennas. Antenna gains are defined with respect to hypothetical antennas that radiate equally in all directions – the isotropic radiator. This gain can be measured in decibels (dBi) or, in certain cases, decibels compared to the maximum intensity of the direction of half-wave dipoles (dBd).
Parameter:
Gain | 5DB |
Connector Type | SMA or customized |
Cable length | 3000mm or customized |
Wire color | Customized |
Frequency | 2400-2600MHZ or customized |
Standing wave ratio | ≤1.5DB |
Output impedance | 50(Ω) |
Material | Cooper |
MOQ | Small quantity can be accepted |

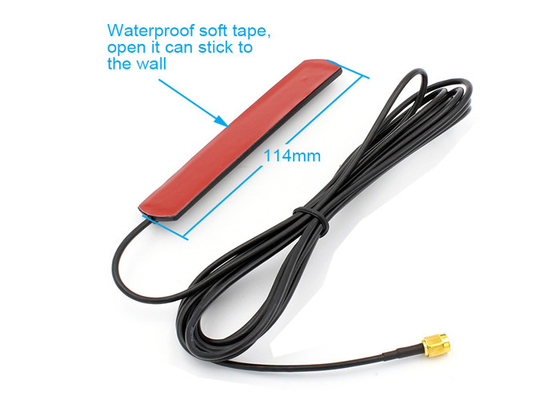

Dimension | 116*22*4MM |
Lead time | 3-15 days |
Certificate | RoHS,CE,UL,TUV,ISO |
Test | Professional breakover and pulling force test before goods sent out |
Customized | Yes |
Production Capacity:
We Make Around Five Million Crimps Per Month and We Have Ambitious Expansion Plans to Make Around Ten Million Crimps Per Month .
Competitivenes…
We Maintain Competitiveness with the Following Steps
Antenna gain refers to the ratio of the power density of the signal generated by the actual antenna and the ideal radiating element at the same point in space under the condition of equal input power. It quantitatively describes the degree to which an antenna radiates concentrated input power. The gain is obviously closely related to the antenna pattern. The narrower the main lobe of the pattern, the smaller the side lobe and the higher the gain. Antenna gain is used to measure the ability of the antenna to send and receive signals in a specific direction. It is one of the most important parameters for selecting a base station antenna.
The difference between a high-gain antenna and an ordinary antenna is that the high-gain antenna has a higher gain and the distance can be farther, but sacrifices the lobe width; the ordinary antenna has a lower gain and the distance is closer, but the lobe width, that is, the coverage area around bigger. The typical one is a satellite antenna with high gain, but it is almost effective only in front of it, the angle is very small, and the directional antenna of the base station can cover 120 degrees.
FAQ
Q: When will you start to help design?
A: We sketch simple solution for initial discussion, after quotation and order placed then start to drawing and double confirm with client for the design.
Q:How can i get the price?
A:We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
Q:Can I buy samples placing orders?
A:Yes.Please feel free to contact us.
Q:What is your lead time?
A:It depends on the order quantity and the season you place the order.
Usually we can ship within 7-15 days for small quantity,and about 30 days for large quantity.
Q:What is your payment term?
A:T/T,Western Union,MoneyGram,and Paypal.This is negotiable.
Q:What is the shipping method?
A:It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.
Q:How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q:Do you accept to customize products(OEM)?
A:Yes,we custom wire harness for clients,just send us samples and drawing about the products you need.
Q:Can you meet with UL,ISO etc.?
A:Yes,we have UL,ISO,ROHS,TUV certificates,also can meet with clients special required about other certificates.
Q:How about samples cost?
A:We charge samples based on the products,but most samples are free.
Q:Any requirement about the MOQ?
A:Our MOQ based on products.But most products MOQ are about 100-300pcs.
