| Place of Origin: | JIANGSU,CHINA |
| Brand Name: | Sanyouhe |
| Certification: | UL、IATF、ISO |
| Model Number: | SYH-H018 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 100/200/300/500pcs per bag , then outside carton |
| Delivery Time: | 3-15 days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 50000 PCS/per week |
| Gain: | 28±2dB | Inpendance: | 50Ω |
|---|---|---|---|
| Axial Ratio: | 3dB(max) | Noise Figure: | ≤1.5 |
| V.S.W.R: | 1.5/3.0/2.0（dB） | Frequency Range: | 698-960MHZ/1710-2700MHZ |
| High Light: | 28DBI High Gain Wifi Antenna,1575MHZ high gain wireless antenna |
||

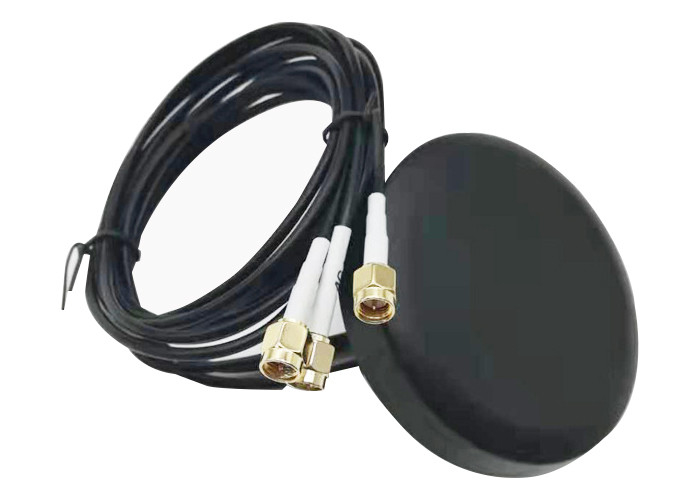

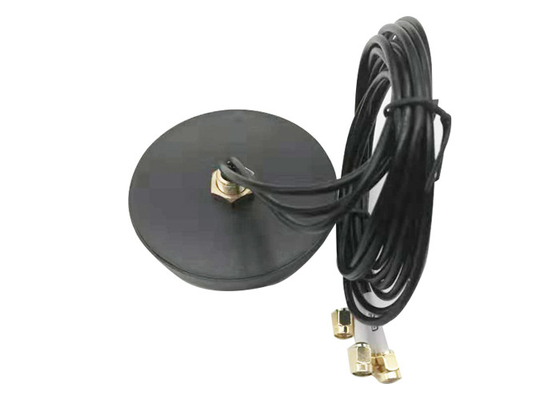

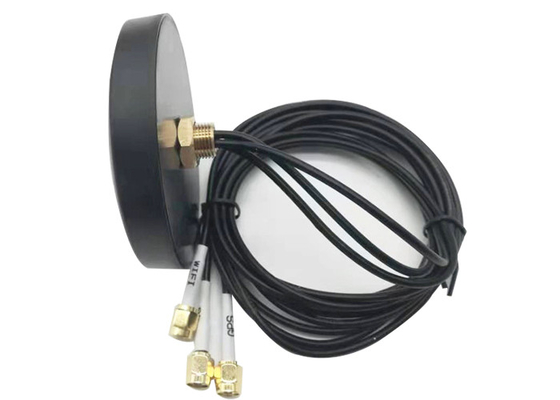

28DBI High Gain Wifi Antenna 50Ω 1575MHZ GPS Wifi 4G Waterproof Combined Antenna
Product information:
High-gain antennas are focused antennas with narrow radio beams, allowing for precise targeting of radio signals. This antenna is used in space missions as well as in flat, open areas where the geography won'tdisrupt radio waves.
Parameter:
| Item | Specifications | ||
| GPS antenna | Dielectric antenna | Center frequency | 1575.43+3MHZ |
| Band width | CF+5MHZ | ||
| Polarization | RHCP | ||
| Gain | 2dBic(Zenith) | ||
| V.S.W.R | ≤1.5 | ||
| Inpendance | 50Ω | ||
| Axial ratio | 3dB(max) | ||
| LNA | Gain | 28+2dBic | |
| Noise figure | ≤1.5 | ||
| V.S.W.R | ≤2.0 | ||
| Supply voltage | 2.2-5V DC | ||
| Current consumption | 5~15mA | ||
| LTE antenna | Frequency range | 698-960MHZ/1710-2700MHZ | |
| V.S.W.R | ≤3.0 | ||
| Polarization | Linear | ||
| Gain | 2.0dBic | ||
| Inpendance | 50Ω | ||
| WIFI antenna | Frequency range | 2400-2483.5MHZ | |
| Polarization | Linear | ||
| Gain | 32.0dBic | ||
| V.S.W.R | ≤2.0 | ||
| Inpendance | 50Ω | ||
| Mechanical | Cable | RG174 | |
| Connectors | SMA/FAKRA or customized | ||
| Material | ABS | ||

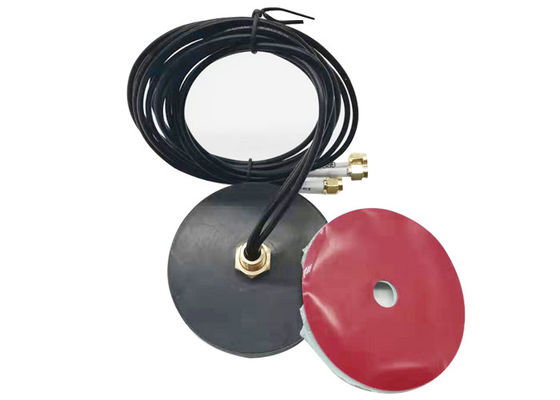

| Mounting method | Adhesives /magnet | ||
| Environment | Operation temperature | - 40 °C ~ + 85 °C | |
| Relative humidity | Up to 95% | ||
| Ingress protection | IP67 | ||
High-gain antennas can also be produced from parabolic antennas, phased arrays and yagi antennas. Antenna gains are defined with respect to hypothetical antennas that radiate equally in all directions – the isotropic radiator. This gain can be measured in decibels (dBi) or, in certain cases, decibels compared to the maximum intensity of the direction of half-wave dipoles (dBd).
Antenna gain refers to the ratio of the power density of the signal generated by the actual antenna and the ideal radiating element at the same point in space under the condition of equal input power. It quantitatively describes the degree to which an antenna radiates concentrated input power. The gain is obviously closely related to the antenna pattern. The narrower the main lobe of the pattern, the smaller the side lobe and the higher the gain. Antenna gain is used to measure the ability of the antenna to send and receive signals in a specific direction. It is one of the most important parameters for selecting a base station antenna.
