| Place of Origin: | JIANGSU ,CHINA |
| Brand Name: | Sanyouhe |
| Certification: | UL、IATF、ISO |
| Model Number: | SYH-W001 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 100/200/300/500pcs per bag , then outside carton |
| Delivery Time: | 3-15 days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 50000 PCS/per week |
| IP Code: | IP67 | Length: | Customized |
|---|---|---|---|
| Color: | Customized | Pin: | Can Be Selected |
| Connection Mode: | Threaded | Interface Type: | AC/DC |
| Highlight: | 110VAC Waterproof Cable Wire,Multi Pin waterproof power cable |
||

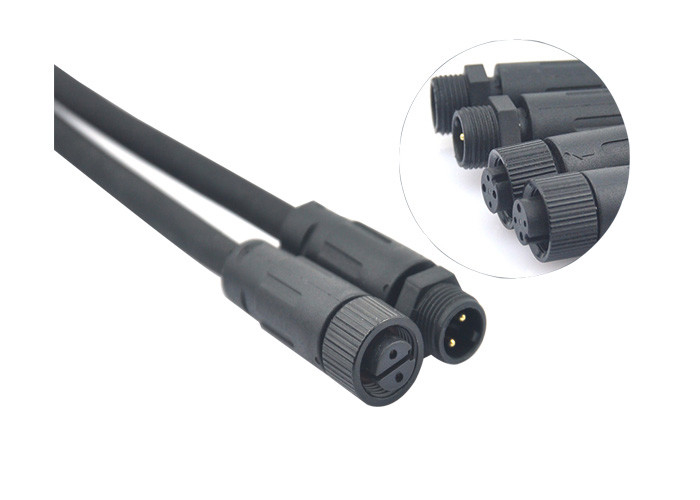

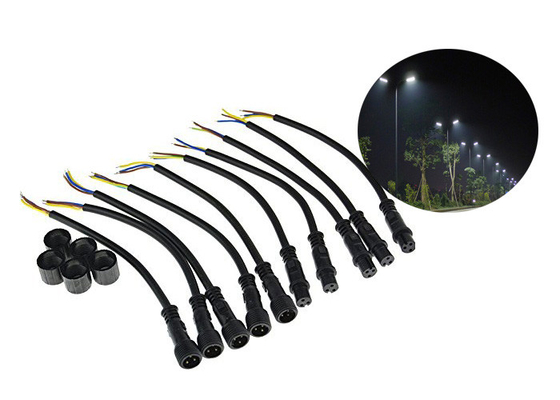

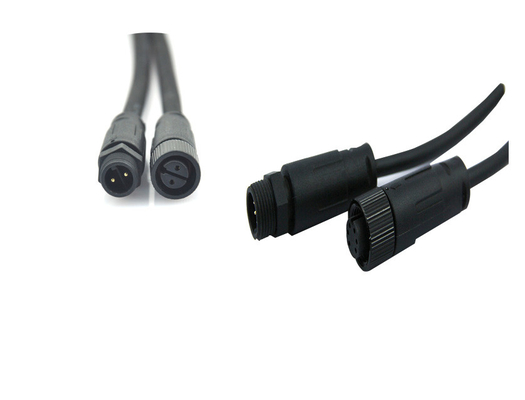

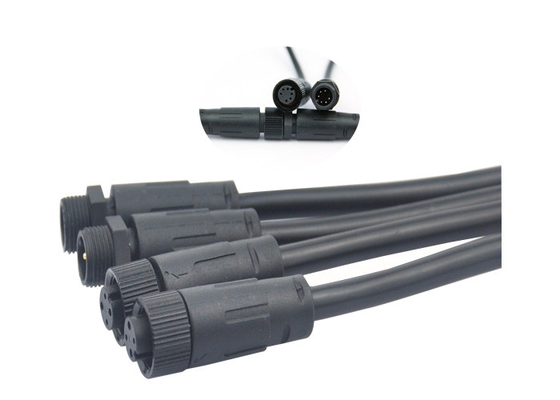

IP67 Waterproof Cable Multi Pin 110VAC LED Light Connection Wire With Ring Connector
Product introduction
This Waterproof Cable is most used in the led and outside for proof water connections . the pins can be selected ,the wire length and colors can be customized according to customer requirements . Before deliver the products will have professional breakover and pulling force test .We can provide sample for evaluating and testing . The sample is free charge ,but customer should pay for the sample shipping cost .(Except for complex samples).All our products can be pass the ISO9001 certificate .
Parameter:
| Pins number |
Reted current |
Reted voltage |
Contact resistance |
Insulation resistance |
IP-Code | Cable Specifications |
Cable range |
| 2 | 8A | 110V AC | 10mΩ | 200MΩ | IP67 | ≦1.0mm² | 0-7.5mm |
| 3 | 8A | 110V AC | 10mΩ | 200MΩ | IP67 | ≦1.0mm² | 0-7.5mm |
| 4 | 5A | 80V AC | 10mΩ | 200MΩ | IP67 | ≦0.75mm² | 0-7.5mm |
| 5 | 5A | 80V AC | 10mΩ | 200MΩ | IP67 | ≦0.5mm² | 0-7.5mm |
| 6 | 4A | 60V AC | 10mΩ | 200MΩ | IP67 | ≦0.5mm² | 0-7.5mm |
| Operating temperature | PA66:-40～105℃ | ||||||
| Connection mode | Threaded | ||||||
| Operation frequency | Low frequency | ||||||
| Interface Type | AC/DC | ||||||
| Contact material | Gold-plated copper | ||||||
Our advantage
1. 100% Tested Before Delivery.
2. Prompt Delivery
3. Free Samples .
4. Favorable And Competive Price
5. Short lead time
6. Professional design ability.
7. Provide a full set of connection solutions
8. High performance
9. After-sales guarantee
FAQ
Q: When will you start to help design?
A: We sketch simple solution for initial discussion, after quotation and order placed then start to drawing and double confirm with client for the design.
Q: How can i get the price?
A: We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
Q: Can I buy samples placing orders?
A: Yes.Please feel free to contact us.
Q: What is your lead time?
A: It depends on the order quantity and the season you place the order.
Usually we can ship within 7-15 days for small quantity,and about 30 days for large quantity.
Q: What is your payment term?
A: T/T,Western Union,MoneyGram,and Paypal.This is negotiable.
Q: What is the shipping method?
A: It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.
Q: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
