Hard work, integrity, win-win cooperation
 |
| Place of Origin: | JIANGSU,CHINA |
| Brand Name: | Sanyouhe |
| Certification: | UL、IATF、ISO |
| Model Number: | SYH-M015 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 100/200/300/500pcs per bag , then outside carton |
| Delivery Time: | 3-15 days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 50000 PCS/per week |
| Wire Length: | 20mm Or Customized | Pitch: | 0.5mm Or Customized |
|---|---|---|---|
| Color: | 6 Colors Or Customized | Contact Material: | Copper |
| Customized: | Yes | Service: | OEM,ODM |
| Highlight: | 0.5mm medical wire cable,20mm Medical Transfer Cable |
||

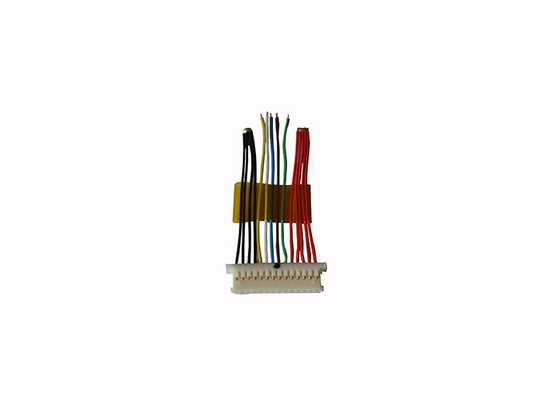

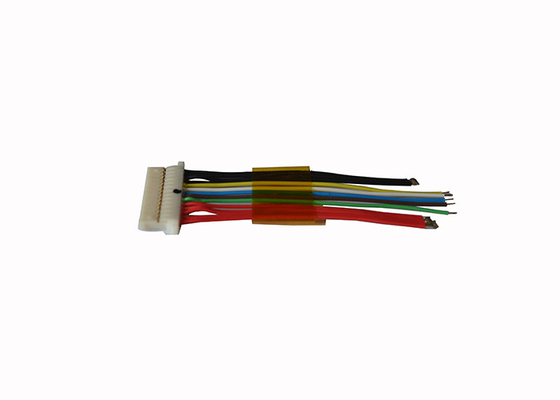

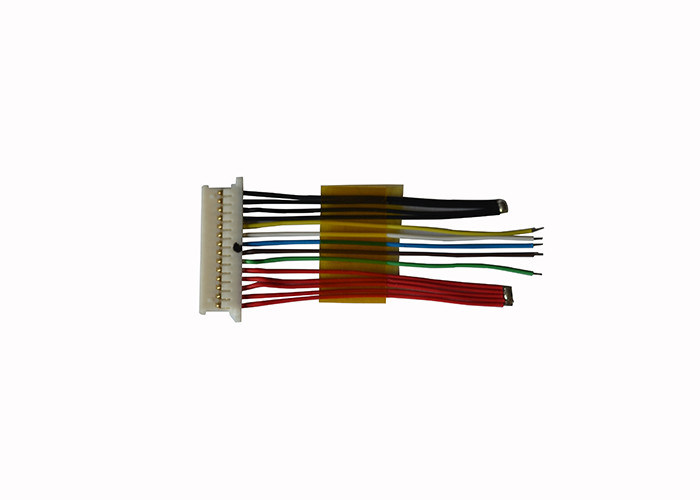

Tinned End Medical Wiring Harness 6Colors 0.5mm Pitch Cooper Medical Transfer Cable
Product introduction
The quality of the wire harness material directly affects the quality of the wire harness. The choice of wire harness material is related to the quality and service life of the wire harness. In the selection of wire harness products, don't be greedy for cheap, cheap wire harness products may use poor quality wire harness materials.
Parameters:
| Pin | 14 pins or customized |
| End | Tinned |
| Tinned length | 2mm or customized |
| Work frequency | Low frequency |
| Feature | Flame retardant |
| MOQ | Small quantity can be accepted |
| Pitch | 0.5mm or customized |
| Lead time | 3-15 days |
| Certificate | RoHS,CE,UL,TUV,ISO |
| Test | Professional breakover and pulling force test before goods sent out |
| Interface Type | AC/DC |
| Shape | Strip |
| Wire gauge | 16-24AWG or customized |
|
Color
|
Black or customized |
| Wire length | 200mm or customized |
| Customized | Yes |
| Feature | Flame retardant,can pass the UL758,VW-A and CSA RT1 vertical burning test. |
| Insulation material | PVC / TPE / silicone or customized |
| Conductor material | Pure copper tin plating |
How to distinguish the quality of the harness? Understand the material of the wiring harness. The following is the material of wire harness selection.
The wiring harness is generally composed of wires, insulating sheaths, terminal blocks and packing materials.
1. Material selection of terminal
The copper used for terminal materials (copper parts) is mainly brass and bronze (brass is slightly lower in hardness than bronze), of which brass accounts for a larger proportion. In addition, different coatings can be selected according to different needs.
Second, the choice of insulating sheath
The commonly used materials of sheath material (plastic parts) are PA6, PA66, ABS, PBT, pp, etc. According to the actual situation, flame retardant or reinforcing materials can be added to the plastic to achieve the purpose of reinforcing or flame retardant, such as adding glass fiber reinforcement.
Third, the choice of wire harness
According to the different use environment, choose the corresponding wire material.
Fourth, the choice of dressing materials
Wire harness bandaging plays the role of wear resistance, flame retardant, anticorrosion, interference prevention, noise reduction, and beautification of appearance. Generally, the bandage material is selected according to the working environment and the size of the space. There are usually adhesive tapes, corrugated pipes, PVC pipes, etc. in the choice of packing materials.
Sanyouhe manufactures custom flat panel display cables and cable harness assemblies for a wide range of medical devices. Because medical equipment can mean the difference between life and death, these devices must be built to the highest standards of quality. Our products meet or exceed the quality standards of the medical industry.
We have the manufacturing capability to meet the close tolerances and tight spacing requirements that medical equipment requires, with spacing from 2.0 mm down to 0.5 mm pitch. We offer complete lot traceability for all of our products, parts, and components, and every cable and assembly we produce is tested for shorts and continuity prior to shipping.
