| Place of Origin: | Jiangsu,China |
| Brand Name: | Sanyouhe |
| Certification: | UL、IATF、ISO |
| Model Number: | SYH-H002 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | One product with one PE bag packaging , then outside carton |
| Delivery Time: | 3-15 days after payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000000 Piece/Pieces per week |
| Frequency Range: | 2400-2500mhz | Connector: | SMA Male |
|---|---|---|---|
| Gain: | 1.5-2Dbi | VSWR: | ≤ 1.5 |
| Antenna Size: | 28mm | Impedance: | 50Ω |
| Polarization: | Vertical | Color: | Black Or Customized |
| High Light: | 3.6V high gain sma antenna,2.4G high dbi wifi antenna |
||

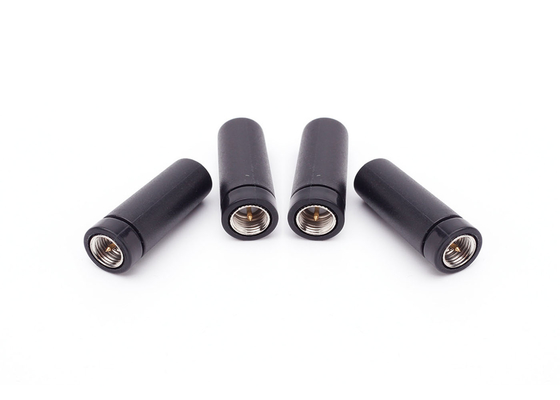

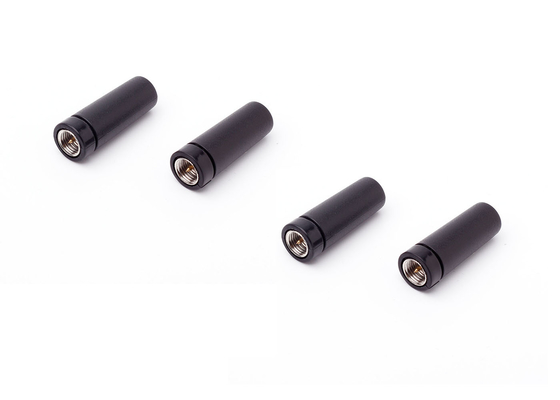

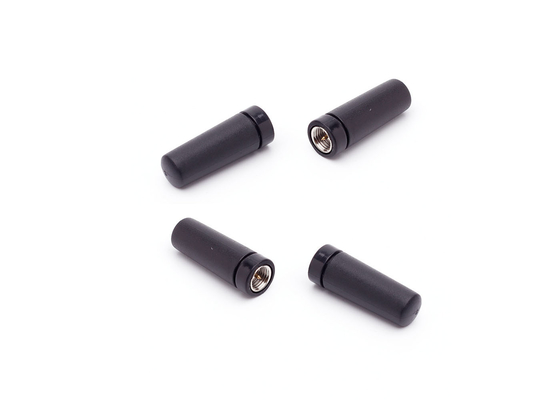

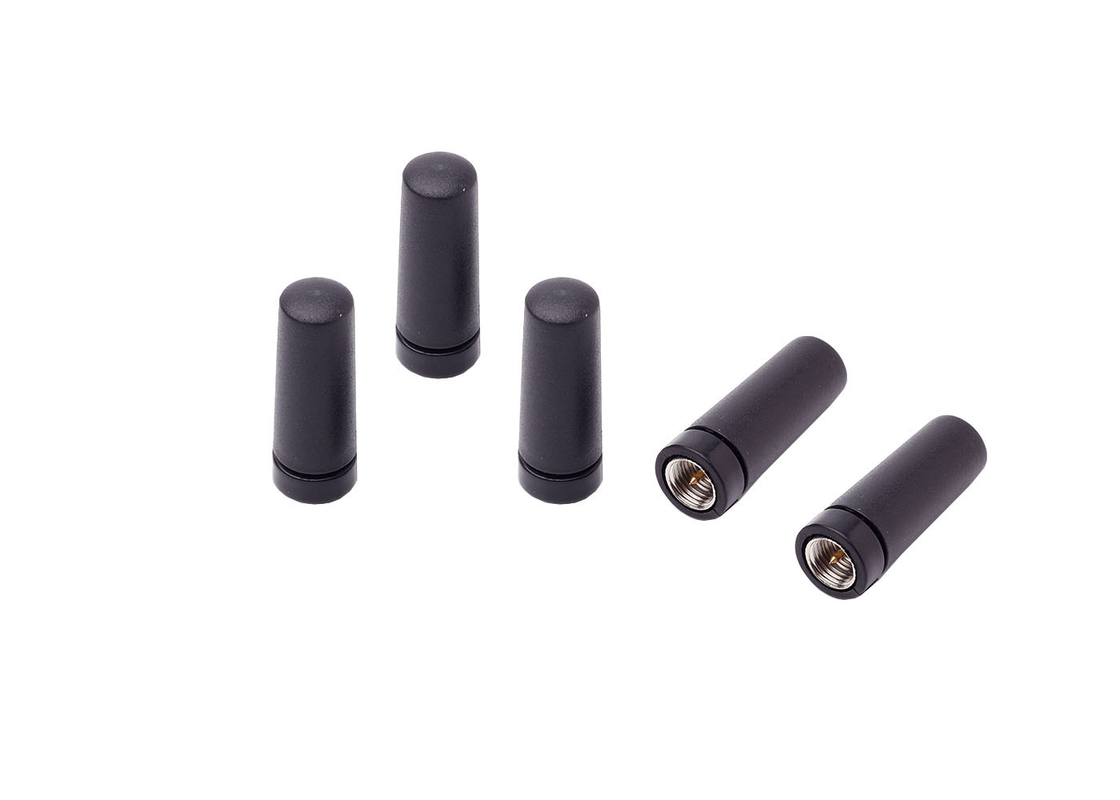

2.4G Small Glue Stick Antenna High Gain SMA Antenna Wifi Bluetooth Zigbee Module IOT Antenna High Gain Wifi Antenna
Product introduction
Commonly used antenna types:
(1) External glue stick antenna: good performance, no need to debug, easy to replace, high gain, suitable for various terminal equipment.
(2) SMT patch type: The commonly used ceramic antenna has a small footprint, high integration, and is easy to replace. It is suitable for products with small space requirements, but this type of antenna is slightly more expensive and has a smaller bandwidth.
(3) On-board PCB antenna: It is etched by PCB, with low cost, but with limited performance and good adjustability. It can be used in large quantities for Bluetooth and WiFi wireless communication modules.
(4) FPC antenna: connected by feeder, it is free to install and has high gain. It can usually be pasted on the non-metal casing of the machine by using adhesive.
Parameters:
| Place of Origin | Jiangsu,China |
| Brand Name | SYH |
| Model Number | SYH-H002 |
| Frequency | 2400-2500Mhz |
| Connector | SMA male |
| V.S.W.R | ≤1.5 |
| Gain | 1.5-2dbi |
| Antenna length | 28mm |
| MOQ | Small quantity can be accepted |
| Sample | Sample can be provided for evaluating |
| Sevice | OED ODM accepted |
| Delivery Time | 3-15 days upon receipt of payment |
| Packaging | One product with one PE bag packaging , then outside carton |
| Test | 100% tested before goods sent out |
The impact of metal on the antenna:
If there are objects of metallic material near the antenna, the metal can reflect electromagnetic waves, which will not only affect the actual space of the antenna, increase the loss resistance of the antenna, reduce the radiation efficiency, but also cause the deterioration of the antenna radiation performance. When installing the antenna, pay attention to:
a: The antenna must be at least 5mm away from the battery;
b: The antenna must be at least 4mm away from the shielding shell;
c: When it is necessary to install the shell, do not use spray paint or plating with metal components on the surface of the shell.
Our advantage:
1. 100% Tested Before Delivery.
2. Prompt Delivery
3. Free Samples .
4. Favorable And Competive Price
5. Short lead time
6. Professional design ability.
7. Provide a full set of connection solutions
☀ Our wifi antennas can be made in different gains and frequency, if you need, we can accept customized.
☀ Our wifi antennas can be made with different connectors such as sma connectors, tnc connectors and n connectors.
☀ We can also produce GSM antennas, indoor or out door panel antennas, sucker antenna and so on.
☀ If you need, we can also customized cable assembly used in antnna like sma to IPEX/UFL cable assemblies. For this product, please contact our sales deparment and get more details.
☀ If you require a special antenna not found here, you can create your own antenna by calling our sales department.
