| Place of Origin: | JIANGSU,CHINA |
| Brand Name: | Sanyouhe |
| Certification: | UL、IATF、ISO |
| Model Number: | SYH-H013 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 100/200/300/500pcs per bag , then outside carton |
| Delivery Time: | 3-15 days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 50000 PCS/per week |
| Frequency: | 1575.42MHZ | Gain: | 28-30db |
|---|---|---|---|
| Polarization: | Omni Directional | Standing Wave Ratio: | 1.92：1 Max |
| Work Voltage: | 3-5V | Output Impedance: | 50（Ω） |
| Highlight: | 28DB high dbi wifi antenna,High Gain Omnidirectional Wifi Antenna |
||

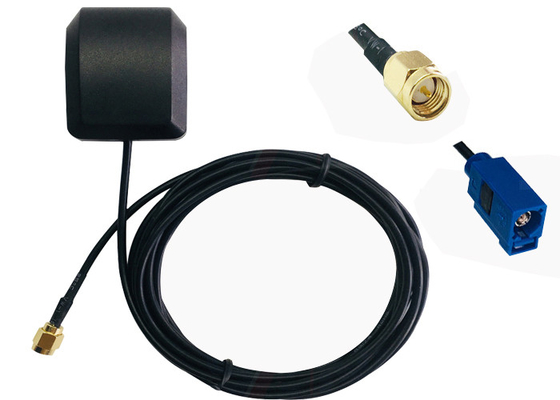

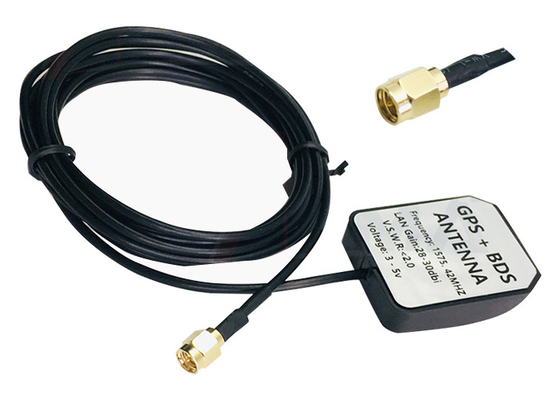

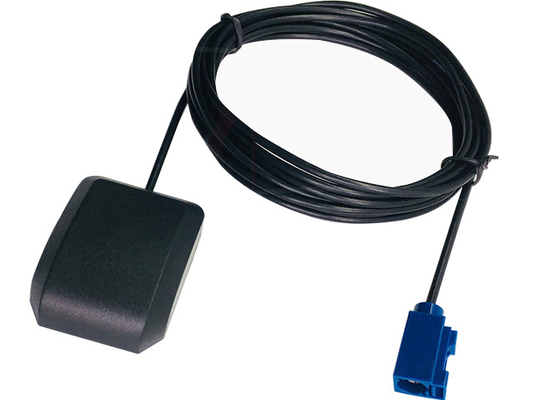

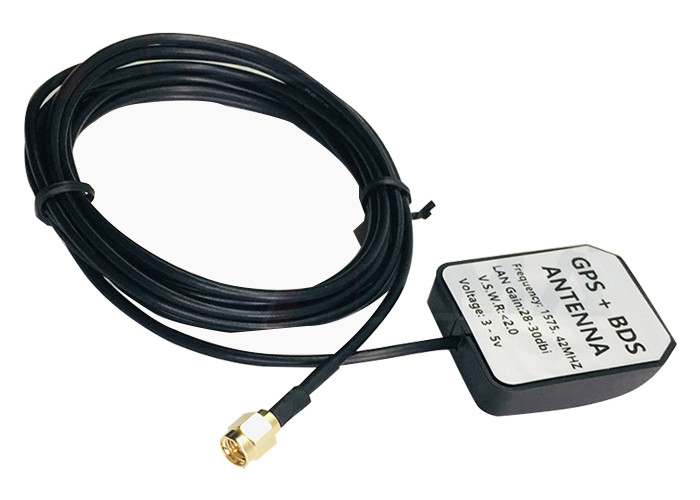

1575.42MHZ High Gain Wifi Antenna 28DB 3000mm Vehicle Positioning Navigation Antenna
Product information:
Antenna gain refers to the ratio of the power density of the signal generated by the actual antenna and the ideal radiating element at the same point in space under the condition of equal input power. It quantitatively describes the degree to which an antenna radiates concentrated input power. The gain is obviously closely related to the antenna pattern. The narrower the main lobe of the pattern, the smaller the side lobe and the higher the gain. Antenna gain is used to measure the ability of the antenna to send and receive signals in a specific direction. It is one of the most important parameters for selecting a base station antenna.
The difference between a high-gain antenna and an ordinary antenna is that the high-gain antenna has a higher gain and the distance can be farther, but sacrifices the lobe width; the ordinary antenna has a lower gain and the distance is closer, but the lobe width, that is, the coverage area around bigger. The typical one is a satellite antenna with high gain, but it is almost effective only in front of it, the angle is very small, and the directional antenna of the base station can cover 120 degrees.
Parameter:
| Wire color | Black or Customized |
| Frequency | 1575.42MHZ |
| Gain | 28-30db |
| Polarization | Omni directional |
| Lingtning Protection | None |
| Connector Type | SMA ,FARKA or customized |
| Cable length(mm) | 3000mm or customized |
| Frequency | 2400HZ-2500HZ |
| Work voltage | 3-5V |
| Standing wave ratio | 1.92:1 Max |
| Operating Temperature(°C) | -20°C~70°C |
| Output impedance | 50(Ω) |
| Material | Cooper |
| MOQ | Small quantity can be accepted |
| Lead time | 3-15 days |
| Certificate | RoHS,CE,UL,TUV,ISO |
| Test | Professional breakover and pulling force test before goods sent out |
| Customized | Yes |
FAQ:
Q:How can i get the price?
A:We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
Q:Can I buy samples placing orders?
A:Yes.Please feel free to contact us.
Q:What is your lead time?
A:It depends on the order quantity and the season you place the order.
Usually we can ship within 7-15 days for small quantity,and about 30 days for large quantity.
Q:What is your payment term?
A:T/T,Western Union,MoneyGram,and Paypal.This is negotiable.
Q:What is the shipping method?
A:It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.
Q:What is wire harness manufacturing?
A:Wire harness manufacturing entails creating a custom set-up of electrical wires and/or cables based on the task needed by our client. You can imagine this can run a pretty large gambit of different applications. As custom wire harness manufacturers, it is our job to fully understand the client’s needs, examine where the cable harness will be used, and consider a host other factors that determine the material types and attributes needed for the wiring harness to perform under even the harshest of conditions for years of faithful, continued service. At SYH, we have the tools and experience to create just about any wiring harness application a client can think of. We usually produce a small number of prototypes to ensure our engineers have everything perfect for the unique application our client is intending before we move on to larger-scale production.
Q:What are wiring harnesses used for?
A:Wiring harnesses are used in everything from remote control cars to jumbo jets. For example, the desktop computer you may be using currently has a myriad of different harnesses for data and power transfer, all to let you view a page like this one. Inside your vehicle are reams of cables, wires, terminals, and connectors that have to run through the entire vehicle in order to connect all the different components that allow you to simply drive from A to B. The harness itself sounds simple, but it can be rather complex when different connections, terminations, conductor sizes, sheathing, strain reliefs, and many other considerations have to come into play depending on the needs of the project. Our engineers design a complete system around the wires and cables needed to power electrical systems, transfer high speed data, and send and receive signals. If you’re ready to discuss your project’s unique requirements, talk over your options with a knowledgeable representative now.
