| Place of Origin: | JIANGSU,CHINA |
| Brand Name: | Sanyouhe |
| Certification: | UL、IATF、ISO |
| Model Number: | SYH-FI021 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 100/200/300/500pcs per bag , then outside carton |
| Delivery Time: | 3-15 days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 50000 PCS/per week |
| Product Name: | Rainbow Integrated Circuit Flat Cabl | Shape: | Flat Cable |
|---|---|---|---|
| Tensile Strength: | 1-999N | Outer Diameter: | 1mm Or Customized |
| Pitch: | 1.27mm Or Customized | Rated Voltage: | 220-230V |
| PIN: | 40 Pins Or Customized | Application: | Integrated Circuit |
| High Light: | 36 AWG FFC flat cable,1.27P fPC flat cable |
||

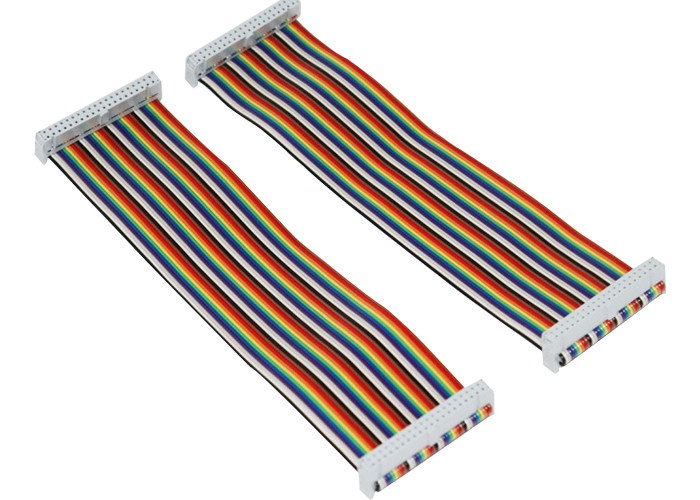

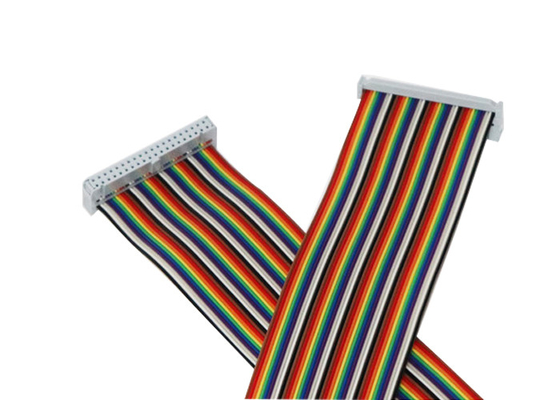

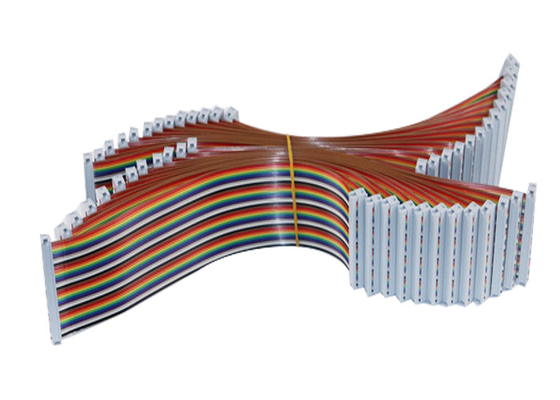

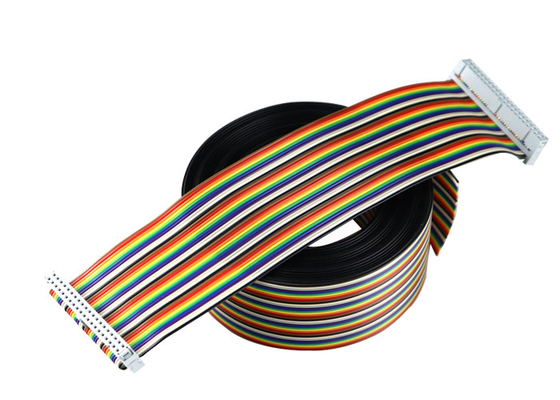

1.27P FFC Flexible Flat Cable 36AWG 40Pins UL Rainbow Integrated Circuit Flat Connection Wires
Product information:
FFC technical parameters:
1. Number of conductors N: the number of copper conductors in the cable;
2. Pitch P: the distance between the centerlines of two adjacent conductors;
3. Margin M: the distance between the center line of the outermost conductor and the edge of the cable:
4. Full pitch TP: the distance between the outermost two conductor centerlines, TP=P*(N-1);
5. Total width W: the distance between the two edges of the cable, W=P*(N+1);
6. Total length TL: the distance between the two ends of the cable;
7. Insert thickness TT: the thickness of the two connecting ends of the cable;
Parameter:
| Product name | Rainbow Integrated Circuit Flat cable |
| Shape | Flat cable |
| Sheath material | PE |
| Tensile Strength | 1-999N |
| Outer diameter | 1mm or customized |
| Resistance | 0.1Ω |
| Pitch | 1.27mm or customized |
| Rated voltage | 220-230V |
| Work frequency | Low frequency |
| PIN | 40 pins or customized |
| Application | Integrated circuit |
| Insulation thickness | 0.12mm or Customized |
| Wire gauge | 36 AWG or Customized |
| Wire Color | Rainbow or Customized |
| Wire lenght | 100mm or According to the customers' requirements |
| Certificates | RoHS,CE,UL,TUV,ISO |
| MOQ | Small quantity can be accepted |
| Sample | Samples confirmed first before mass production |
| Sevice | OEM ODM accepted |
| Delivery Time | 3-15 days upon receipt of payment |
| Packaging | 00/200/300/500pcs per bag , then outside carton |
| Test | Professional breakover and pulling force test before goods sent out |
| Lead time | 3-15 days |
Because of their smooth, compact design, flat cables are more flexible than their round counterparts, especially in high-flex applications such as robots, festoon and automated processing equipment. They are also suitable for military, aerospace, medical and clean room systems. This flexibility can be attributed to the fact that flat cables flex equally and in the same plane, reducing the twisting and stress put on round cables. Offering small bend radii, flat cables are able to fit into tight and compact spaces and are designed for up to tens of millions of cycles.
FAQ for FFC flexible flat cable :
Q:How can i get the FFC flexible flat cable price?
A:We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
Q:What is your lead time of FFC flexible flat cable?
A:It depends on the order quantity and the season you place the order.
Usually we can ship within 7-15 days for small quantity,and about 30 days for large quantity.
Q:What is the shipping methodfor FFC flexible flat cable?
A:It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.
Q:Can you meet with UL,ISO etc.?
A:Yes,we have UL,ISO,ROHS,TUV certificates,also can meet with clients special required about other certificates.
Q:How about samples cost about the FFC flexible flat cable?
A:We charge samples based on the products,but most samples are free.
Q:Are there any disadvantages to choosing flexible flat cable?
A:This type of cable does not allow for sideways flexing, so it may only be used in straight-run applications.
Q:Why is there a red stripe on the edge of my flexible flat cable ?
A:The red stripe located on one edge of the gray flat cable serves as an identification strip during the installation process. It is used to prevent reversed connections, which could be damaging to electronics. Generally, the red conductor is paired with pin 1 on a connector.
Q:Do the colors used in rainbow flexible flat cable have any significance?
A:The colors of rainbow flexible flat cable are used to make conductor identification easier. The cables follow the standard color code of brown, red, orange, yellow, green, blue, violet, gray, white, and black. After that, colors repeat.
