| Product Name: | Double Head Terminal Transmission Flat Connecting Wires | Sheath Material: | PVC |
|---|---|---|---|
| Shape: | Flat Cable | Tensile Strength: | 18% |
| Maximum Outer Diameter: | 0.9mm | Insulation Thickness: | 0.23mm |
| Pitch: | 2.54mm | Wire Gauge: | 28AWG Or Customized |
| High Light: | 200mm IDC Ribbon Cable,2.54mm 20 pin IDC cable |
||

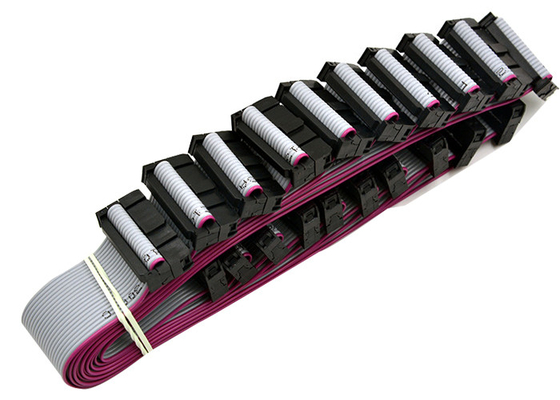

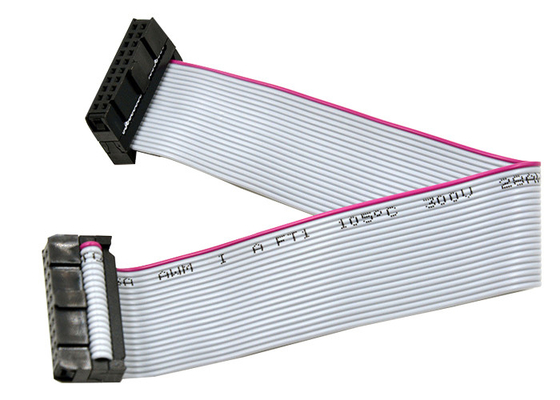

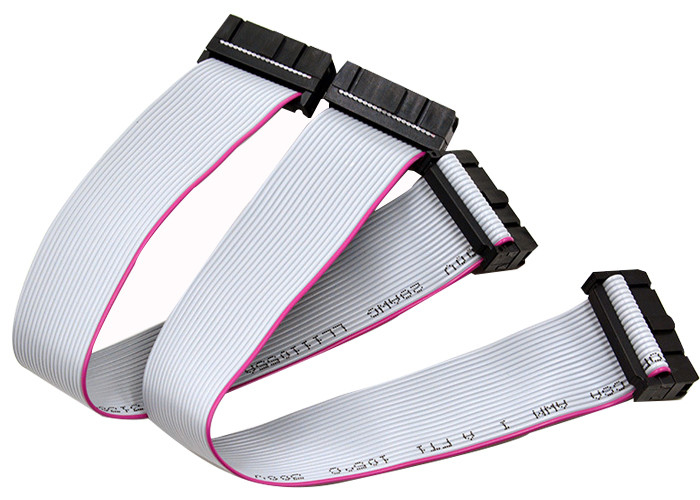

20pins IDC Ribbon Cable 2.54mm Pitch PVC 200mm Double Head Terminal Transmission Flat Connecting Wires
Product description :

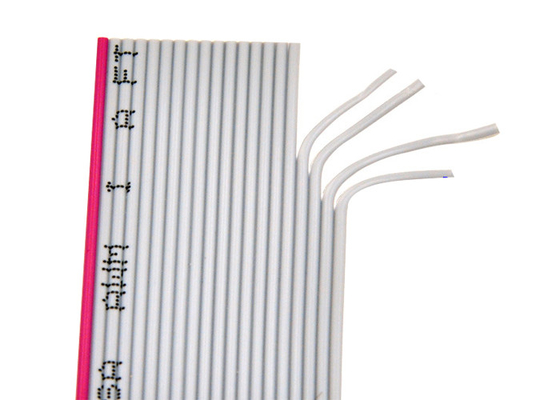

A ribbon cable is a flat, thin cable composed of multiple small-grade cables placed parallel to each other. With each core situated side by side, they form a wide-flat cable resembling a piece of ribbon, hence its name. This type of cable is mostly used in electronic systems that require multiple data buses to link internal peripherals, such as disk drives to their respective drive controllers.
Parameter:
| Product name | Double Head Terminal Transmission Flat Connecting Wires |
| Sheath material | PVC |
| Shape | Flat cable |
| Tensile Strength | 18% |
| Maximum outer diameter | 0.9mm |
| Insulation thickness | 0.23mm |
| Application | Industrial Control ,Display Signal ,Transmission wire |
| Resistance | ≤237Ω |
| Converter | Horn connector |
| PIN | 20pins |
| Pitch | 2.54mm |
| Wire gauge | 28AWG or customized |
| Wire length | 200mm or Customized |
| Interface | USB |
| Wire Color | Black or Customized |
| Certificates | RoHS,CE,UL,TUV,ISO |
| MOQ | Small quantity can be accepted |
| Sample | Samples confirmed first before mass production |
| Sevice | OEM ODM accepted |
| Delivery Time | 3-15 days upon receipt of payment |
| Packaging | 00/200/300/500pcs per bag , then outside carton |
| Test | Professional breakover and pulling force test before goods sent out |
| Lead time | 3-15 days |
Feature:
1. The copper core wire of the flat cable adopts the international standard seven-core stranded copper wire. The copper core can be stranded first and then plated, or plated and then stranded. The standard is 7/0.12, and 7/0.1, 7/0.09, 7/0.08, 7/0.16 and other seven-core stranded copper wires are also provided.
2. Choose high temperature resistant, environmentally friendly, fireproof PVC insulation materials,
3. Adopt 100% high quality tinned copper (full copper) raw materials, and can also customize copper clad steel, aluminum magnesium wire and other highly conductive cores according to customer needs to ensure that the production conductivity reaches 99.9% or more.
1. Pitch: 1.27MM (otherwise: 0.635MM 1.0MM 2.0MM 2.54MM)
2. Specification: 28AWG (Another: 32AWG 30AWG 26AWG 24AWG)
3. Copper wire structure material: tinned copper wire after plating first
4. Copper conductor: 7/0.12MM
4. Cable color: gray with red border and printing (otherwise black, yellow and red, need to be customized!)
5. Conductor diameter: 0.12±0.005mm
6. Conductor elongation: 18℅↑
7. Conductor cross-sectional area: 0.36mm2
8. Conductor pitch: 10.7mm↓
9. Insulator thickness: minimum 0.10mm average 0.23mm
10. Wire thickness: 0.9±0.05mm
11. Insulator elongation: 100.00℅
12. Tensile strength of insulator: 1.066Kg/m㎡↑
13. Spark test: 3.0KV/0.15SPC↑
14. Withstand voltage: 2KV 10mA/
15. Conductor resistance: ≤237 ohm/RM↓
16. Insulation resistance: ≥100m ohm/RM↑
17. Capacitance: 40PF/M
18. Impedance: 100 ohms
19. Time delay: 4
20. Working temperature: -40°C~+105°C
21. Insulation cover: environmental protection PVC 45P (RoHS) 8058 gray
22. Test requirements:
Good appearance, plastic parts must not have injection defects, etc.
Metal parts must not have defects such as scratches and deformations
On-off performance meets specified requirements
