| Place of Origin: | JIANGSU,CHINA |
| Brand Name: | Sanyouhe |
| Certification: | UL、IATF、ISO |
| Model Number: | SYH-FI012 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 100/200/300/500pcs per bag , then outside carton |
| Delivery Time: | 3-15 days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 50000 PCS/per week |
| Product Name: | Tinned Copper Flat Connecting Wires | Sheath Material: | PVC |
|---|---|---|---|
| Shape: | Flat Cable | Maximum Outer Diameter: | 1mm |
| Insulation Thickness: | 0.2mm | Rated Voltage: | 300V |
| Tensile Strength: | 100 | PIN: | 10pins |
| Highlight: | 200mm IDC Ribbon Cable,1.27mm 10 pin IDC cable |
||

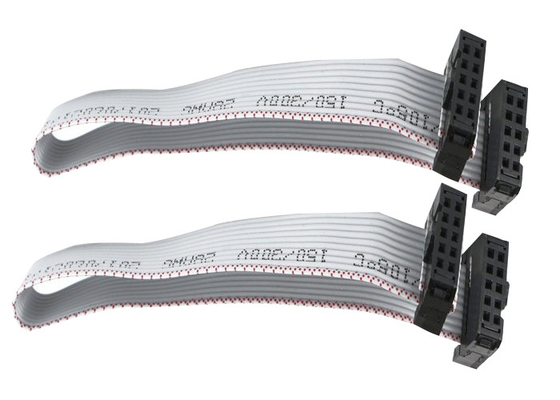

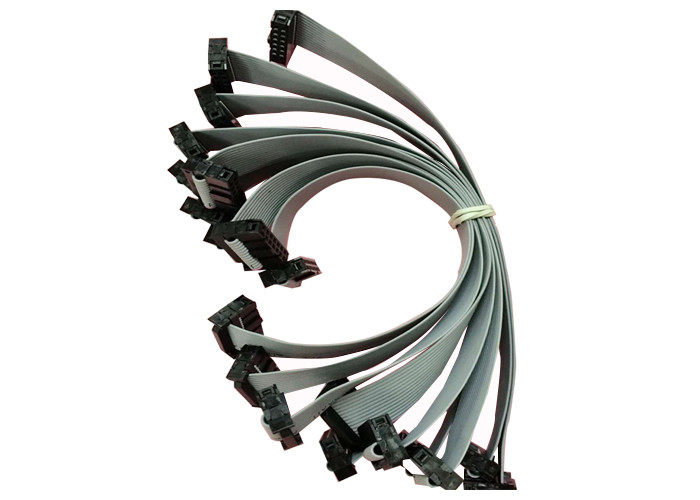

1.27mm Pitch IDC Ribbon Cable RoHS PVC 200mm Tinned Copper Flat Connecting Wires
Product description :
Ribbon cables are also known as multiplanar cables.

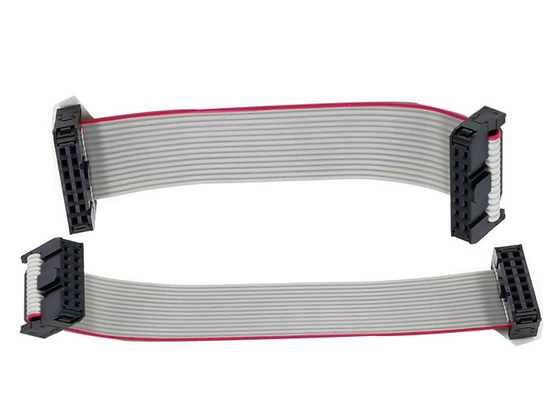

The distinct multi-cable arrangement in a ribbon cable allows an insulation displacement connector (IDC) to be easily attached on its ends. Color coding is practiced and implemented in ribbon cables to avoid reverse connections, and, as a rule, the edge of the cable marked with a red stripe is connected to pin 1 on the connector. Also, different colored cables have been made available for easier identification of each conductor. They are often called hippie cables; conversely, they have remained specialized and comparatively pricey. The connectors at the ends of the cable are also specially notched so that they can only fit in a specific way, effectively preventing reverse connections.
Parameter:
| Product name | Tinned Copper Flat Connecting Wires |
| Sheath material | PVC |
| Shape | Flat cable |
| Maximum outer diameter | 1mm |
| Insulation thickness | 0.2mm |
| Rated voltage | 300V |
| Tensile Strength | 100 |
| PIN | 10pins |
| Pitch | 1.27mm |
| Wire gauge | 28AWG or customized |
| Wire length | 200mm or Customized |
| Wire Color | Gray or Customized |
| Certificates | RoHS,CE,UL,TUV,ISO |
| MOQ | Small quantity can be accepted |
| Sample | Samples confirmed first before mass production |
| Sevice | OEM ODM accepted |
| Delivery Time | 3-15 days upon receipt of payment |
| Packaging | 00/200/300/500pcs per bag , then outside carton |
| Test | Professional breakover and pulling force test before goods sent out |
| Lead time | 3-15 days |
Features:
1. Small size and light weight is the only solution to meet the requirements of miniaturization and movement;
2. It can be moved, bent and twisted without damaging the wire, and can meet different shapes and special package sizes;
3. The IDC Ribbon cables has excellent electrical properties, dielectric properties and heat resistance;
4. The IDC Ribbon cables has higher assembly reliability and quality.
Our Services
1. Design and provide drawings service
2. Free sample service
3. Respond in time
4. OEM, ODM service
5. After sales guarantee service
What we can produce :We can produce series of iso wire harnesses:Our products are as follows:
1. Industrial Wiring Harness
2. Ffc Flexible Flat Cable
3. Idc Ribbon Cable
4. Lvds Cable
5. Custom Wiring Harness
6. Overmolded Cable Assemblies
7. Communication Wires And Cables
8. High Gain Wifi Antenna
9. New Energy Vehicle Wiring Harness
10. Medical Wiring Harness
11. Automotive Wiring Harness
12. Electronic Wiring Harness
13. Industrial Wiring Harness
14. Converter Adapter Cable
15. Waterproof Cable Wire
Shipping:
1.FedEx/DHL/TNT/UPS/EMS/Aramex/SF for samples, Door-to-Door;
2. By Air or by Sea for batch goods;Airportport receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 3-7 days for samples; 10-30 days for batch goods.
