CONNECTING US TO BUILD OUR FUTURE
 |
| Place of Origin: | JIANGSU,CHINA |
| Brand Name: | Sanyouhe |
| Certification: | UL、IATF、ISO |
| Model Number: | SYH-FI013 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 100/200/300/500pcs per bag , then outside carton |
| Delivery Time: | 3-15 days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 50000 PCS/per week |
| Product Name: | Tinned Copper Flat Connecting Wires | Sheath Material: | PVC |
|---|---|---|---|
| Shape: | Flat Cable | Maximum Outer Diameter: | 0.9mm |
| Rated Voltage: | 300V | PIN: | 7PINS |
| Wire Length: | 150mm Or Customized | Wire Gauge: | 30AWG Or Customized |
| High Light: | 2.54P IDC flat ribbon cable,150MM IDC Ribbon Cable |
||

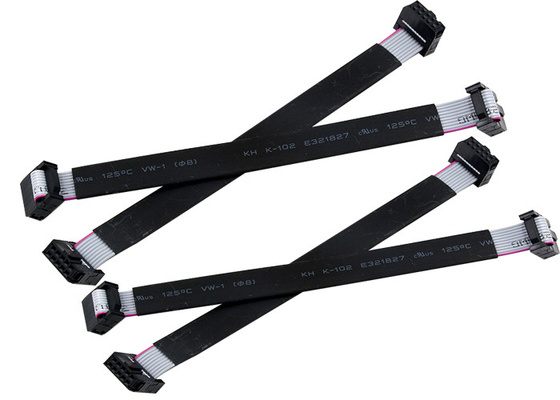

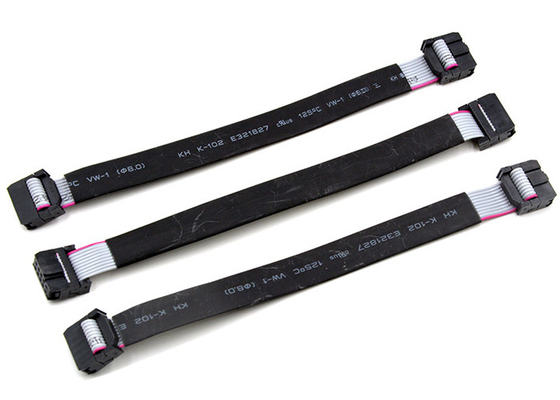

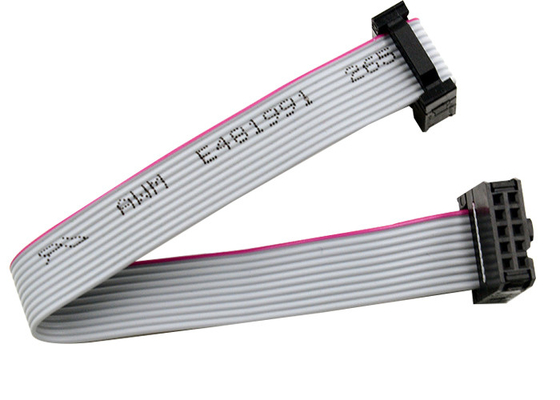

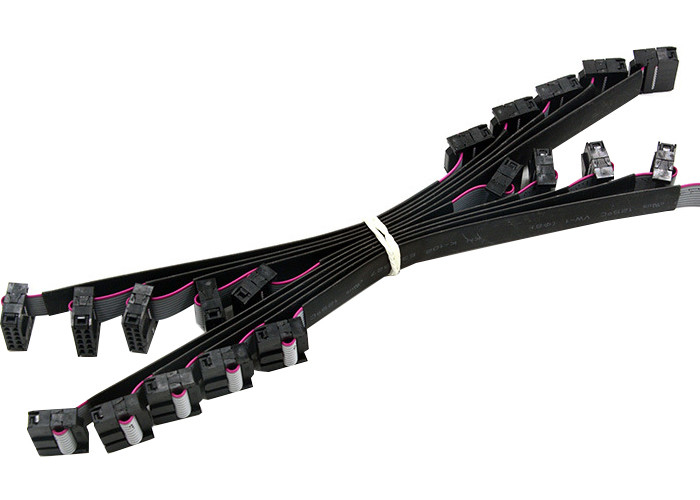

30AWG IDC Ribbon Cable UL 2.54P PVC 150MM Casing Pipe Flat Cables
Product description :
Ribbon cables are typically used in computers with IDE interfaces for connecting IDE components and are also used for connecting moving components to controllers such as print heads.
The IDC Ribbon cables is small in size and light in weight. The original design of the cable board was used to replace the larger wire harness wire. The IDC Ribbon cables is currently the only processing method to meet the requirements of miniaturization and mobile on the assembly board of the plug-in electronic sub-device. The IDC Ribbon cables is etched copper circuit or printed polymer thick film circuit on the polymer substrate. For devices that are thin, light, and have a compact and complex structure, their design and processing plans range from single-sided conductive circuits to complex multi-layer three-dimensional assembly. The total weight and volume of the gray cable is 70% less than the traditional round wire harness method.
Parameter:
| Product name | Tinned Copper Flat Connecting Wires |
| Sheath material | PVC |
| Shape | Flat cable |
| Maximum outer diameter | 0.9mm |
| Insulation thickness | 0.23mm |
| Rated voltage | 300V |
| Tensile Strength | 100 |
| PIN | 7pins |
| Pitch | 2.54mm |
| Wire gauge | 30AWG or customized |
| Wire length | 150mm or Customized |
| Wire Color | Gray or Customized |
| Certificates | RoHS,CE,UL,TUV,ISO |
| MOQ | Small quantity can be accepted |
| Sample | Samples confirmed first before mass production |
| Sevice | OEM ODM accepted |
| Delivery Time | 3-15 days upon receipt of payment |
| Packaging | 00/200/300/500pcs per bag , then outside carton |
| Test | Professional breakover and pulling force test before goods sent out |
| Lead time | 3-15 days |
FAQ:
Q: When will you start to help design?
A: We sketch simple solution for initial discussion, after quotation and order placed then start to drawing and double confirm with client for the design.
Q:How can i get the price?
A:We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
Q:Can I buy samples placing orders?
A:Yes.Please feel free to contact us.
Q:What is your lead time?
A:It depends on the order quantity and the season you place the order.
Usually we can ship within 7-15 days for small quantity,and about 30 days for large quantity.
Q:What is your payment term?
A:T/T,Western Union,MoneyGram,and Paypal.This is negotiable.
Q:What is the shipping method?
A:It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.
Q:How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q:Do you accept to customize products(OEM)?
A:Yes,we custom wire harness for clients,just send us samples and drawing about the products you need.
Q:Can you meet with UL,ISO etc.?
A:Yes,we have UL,ISO,ROHS,TUV certificates,also can meet with clients special required about other certificates.
Q:How about samples cost?
A:We charge samples based on the products,but most samples are free.
Q:Any requirement about the MOQ?
A:Our MOQ based on products.But most products MOQ are about 100-300pcs.
Contact Person: Mrs. Eda Han
Tel: +86-18234096310
