| Place of Origin: | Jiangsu,China |
| Brand Name: | Sanyouhe |
| Certification: | UL、IATF、ISO |
| Model Number: | SYH-FI004 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 100/200/300/500pcs per bag , then outside carton |
| Delivery Time: | 3-15 days after payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500000 Piece/Pieces per week |
| Product Name: | 2.54IDC To D-SUB IDC Ribbon Cable Rainbow Cable | Connector: | 2.54IDC To D-SUB Connector Or Customization |
|---|---|---|---|
| Pin: | 10pins | Sheath Material: | PVC |
| Color: | Grey,red And Black. | Maximum OD Of Wire: | 1 (mm) |
| Quality: | 100% Testing Before Shipment | Express: | DHL FEDEX UPS TNT |
| Highlight: | FC10P To DB9P IDC Ribbon Cable,2.54mm 10 pin IDC cable |
||

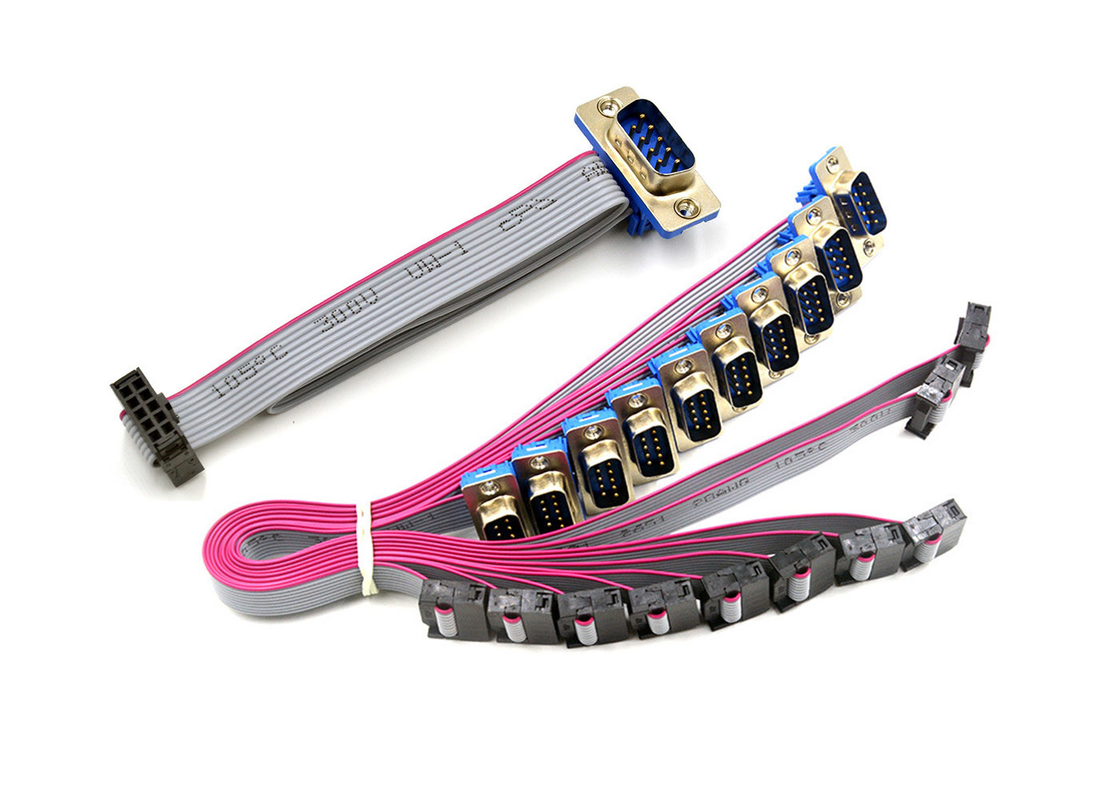

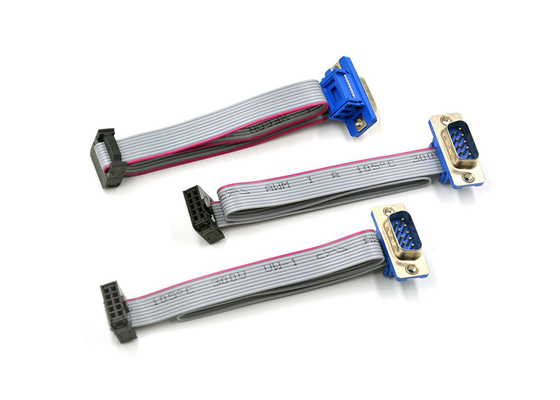

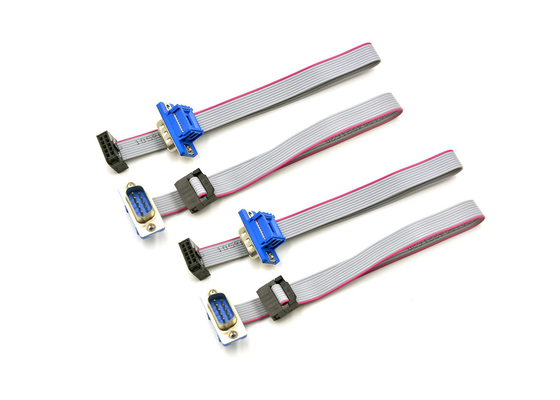

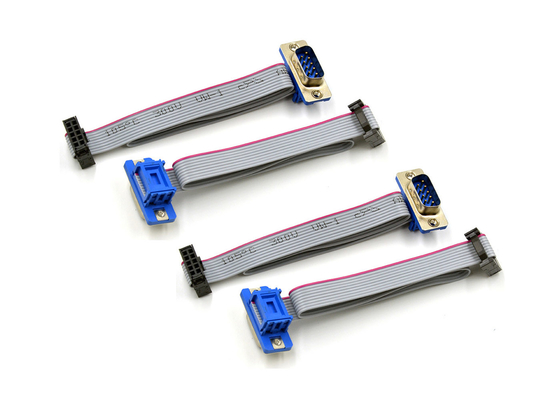

2.54IDC To D-SUB Pressure Extruded Male Head Finished Cable FC10P To DB9P Two Or Three Piece Cable
Product introduction
Among the many connector products, IDC connectors are of two-piece and three-piece types, of which three-pieces are with reverse bending, its purpose and advantage are to protect the cable used on the IDC connector It is safe, because the assembly life of the IDC connector may affect the service life of the interface of the IDC connector product due to the pulling or improper operation of the cable. In the production of general conventional products, the interface of the IDC connector is usually used together with the cable, so sometimes we will also call the IDC connector the IDC pressure cable.
Parameters:
| Place of Origin | Jiangsu,China |
| Brand Name | SYH |
| Model Number | SYH-FI004 |
| Application | Electronic,Automotive,Electrical,Industry,Home application |
| Connectors | 10pins or Customized |
| Wire | 28AWG |
| Wire length | 100mm or According to the customers' requirements |
| Wire Color | Colorful or Customized |
| Certification | ISO9001, T/S16949, Rohs |
| MOQ | Small quantity can be accepted |
| Sample | Sample can be provided for evaluating |
| Sevice | OED ODM accepted |
| Delivery Time | 3-15 days upon receipt of payment |
| Packaging | 00/200/300/500pcs per bag , then outside carton |
| Test | Professional breakover and pulling force test before goods sent out |
Product name: 2.54IDC-DB male finished gray cable-9P
Gray cable spacing: 1.27MM (Another: 0.635MM 1.0MM 2.0MM 2.54MM)
Gray cable specification: 28AWG (Another: 32AWG 30AWG 26AWG 24AWG)
Copper wire structure material: first plated and then stranded (Another: first stranded and then plated copper-clad steel aluminum magnesium wire 7--12 strands of copper wire)
Copper conductor: 7/0.12MM [Conventional 7/0.08MM 7/0.09MM 7/0.1MM 7/0.16MM 7/0.2MM (7 is 7 strands of copper wire)]
Outer cover color: regular gray with red border and printing, and black and yellow, need to be customized!
Packing: 10 bars per bundle, 10 bags per bag
Conductor diameter 0.12±0.005mm
Conductor elongation 18℅↑
Conductor cross-sectional area 0.36mm2
Conductor pitch 10.7mm↓
Insulator thickness minimum 0.10mm average 0.23mm
Wire diameter thickness 0.9±0.05mm
Insulation elongation 100.00℅
Insulator tensile strength 1.066Kg/m㎡↑
Spark test 3.0KV/0.15SPC↑
Withstand voltage 2KV 10mA/
Conductor resistance ≤237 Ohm/RM↓
Insulation resistance ≥100m ohm/RM↑
Capacitance 40PF/M
Impedance 100 ohm
Time delay 4
Working temperature: -40°C~+105°C
Insulation cover: environmental protection PVC 45P (RoHS) 8058 gray
Testing requirements:
Good appearance, plastic parts must not have injection defects, etc.
Metal parts must not have defects such as scratches and deformations
On-off performance meets specified requirements
Widely used in various connectors and connectors such as computers, instruments, machines, appliances, automobiles, color TVs, air conditioners, LED displays, DVDs, VCDs, etc.
