CONNECTING US TO BUILD OUR FUTURE
 |
| Place of Origin: | Jiangsu,China |
| Brand Name: | Sanyouhe |
| Certification: | UL、IATF、ISO |
| Model Number: | SYH-FI005 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 100/200/300/500pcs per bag , then outside carton |
| Delivery Time: | 3-15 days after payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500000 Piece/Pieces per week |
| Product Name: | UL2651 28AWG IDC Ribbon Cable Rainbow Cable | Connector: | 2.54IDC To D-SUB Connector Or Customization |
|---|---|---|---|
| Pin: | 12pins | Wire: | UL2651 28AWG |
| Sheath Material: | PVC | Color: | Grey,red And Black. |
| Quality: | 100% Testing Before Shipment | Express: | DHL FEDEX UPS TNT |
| High Light: | UL2651 28AWG 12 pin ribbon cable,2*6 Pin IDC Ribbon Cable |
||

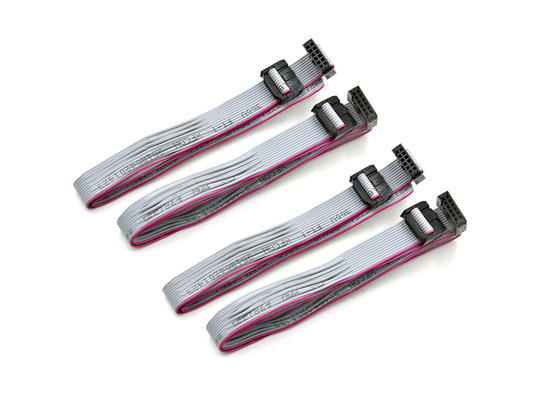

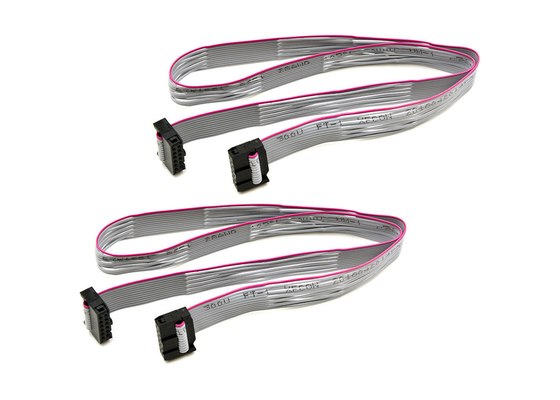

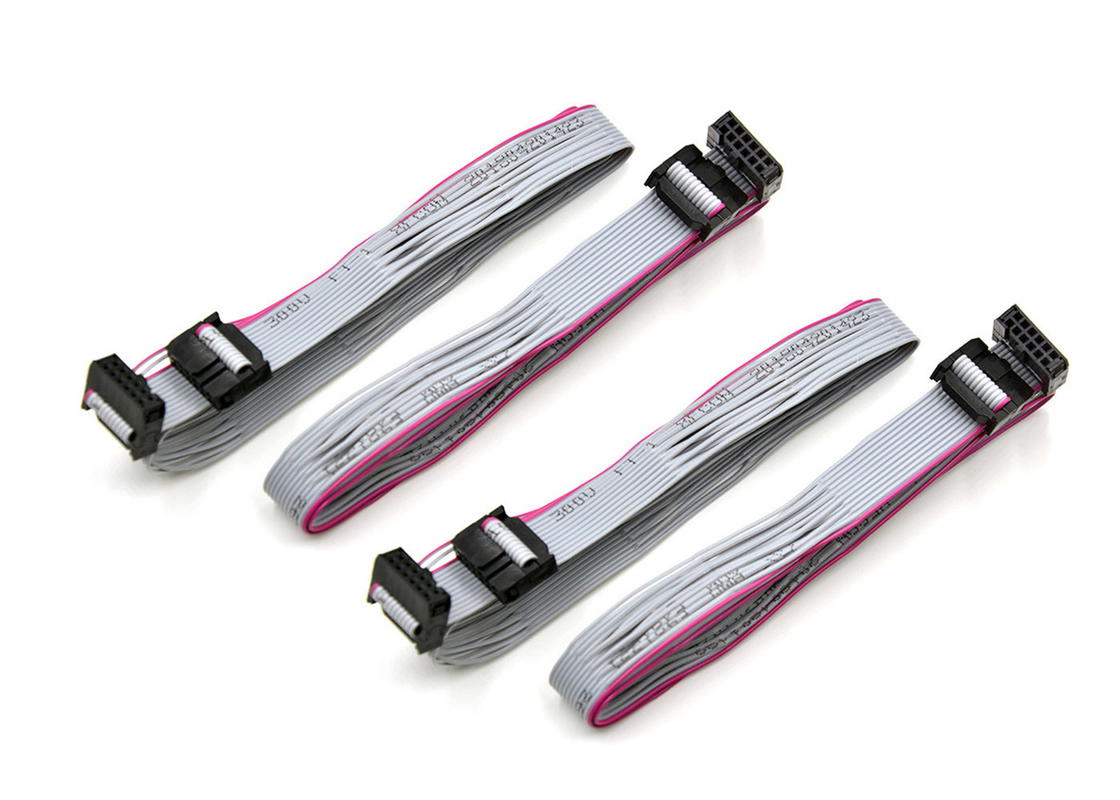

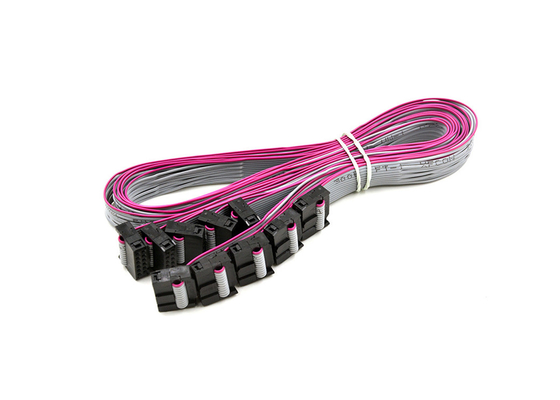

2*6Pin IDC Ribbon Cable 2.54IDC Punctured Cable UL2651 28AWG Tinned Oxygen-Free Copper Core Wire
Product introduction
Among the many connector products, IDC connectors are of two-piece and three-piece types, of which three-pieces are with reverse bending, its purpose and advantage are to protect the cable used on the IDC connector It is safe, because the assembly life of the IDC connector may affect the service life of the interface of the IDC connector product due to the pulling or improper operation of the cable. In the production of general conventional products, the interface of the IDC connector is usually used together with the cable, so sometimes we will also call the IDC connector the IDC pressure cable.
Parameters:
| Place of Origin | Jiangsu,China |
| Brand Name | SYH |
| Model Number | SYH-FI005 |
| Application | Electronic,Automotive,Electrical,Industry,Home application |
| Connectors | 12pins or Customized |
| Wire | UL2651 28AWG |
| Wire length | 150mm or According to the customers' requirements |
| Wire Color | Grey red or Customized |
| Certification | ISO9001, T/S16949, Rohs |
| MOQ | Small quantity can be accepted |
| Sample | Sample can be provided for evaluating |
| Sevice | OED ODM accepted |
| Delivery Time | 3-15 days upon receipt of payment |
| Packaging | 00/200/300/500pcs per bag , then outside carton |
| Test | Professional breakover and pulling force test before goods sent out |
All crimping methods at both ends of the IDC cable:
(1) In the same direction, the convex points are consistent
The direction du of the two baiIDC crimping heads is the same, and the direction of the bumps is also the same. The conventional pressing method of three zhi angles to the red edge is also called dao one-to-one pressing method. Eighty-five percent of customers use this pressing method! 6-34P can be crimped with an automatic pressing machine.
(2) In the same direction, the convex points are opposite
The direction of the two IDC crimping heads is the same, and the direction of the bumps is opposite. Everyone will ask how the bumps are different. The two-piece buckle is the direction of the three-piece buckle! The conventional method is to make three-piece, so here we are talking about the three-piece directional bump!
(3) In the same direction, the convex points are opposite
The direction of the two IDC crimping heads is the same, and the direction of the bumps is opposite. The upper one is a three-piece type, and the lower one is a two-piece type with no reverse buckle! The three-piece direction bumps are subject! If you need a two-piece type, pay attention!
(4) Positive and negative, the convex points are consistent
The direction of the two IDC crimping heads is opposite, and the direction of the bumps is the same. The upper one is a three-piece type, and the lower one is a two-piece type without a back buckle! The conventional is to make a three-piece type, so here we are talking about the three-piece direction bumps!
(5) Positive and negative, convex points are opposite
The directions of the two IDC crimping heads are opposite, and the directions of the bumps are opposite, which means the opposite. The upper one is a three-piece type, and the lower one is a two-piece type without a back buckle! The conventional is to make a three-piece type, so here we are talking about the three-piece direction bumps!
(6) One positive and one negative, the convex points are relative
The direction of the two IDC crimping heads is opposite, and the direction of the bumps is opposite. The upper one is a three-piece type, and the lower one is a two-piece type without a back buckle! The conventional is to make a three-piece type, so here we are talking about the three-piece direction bumps!
The above six crimping methods are all crimping methods at both ends of the finished IDC cable. These six crimping methods are used in IDC gray cables with different positioning!
