CONNECTING US TO BUILD OUR FUTURE
 |
| Place of Origin: | Jiangsu,China |
| Brand Name: | Sanyouhe |
| Certification: | UL、IATF、ISO |
| Model Number: | SYH-L006 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | One product with one PE bag packaging , then outside carton |
| Delivery Time: | 3-15 days after payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000000 Piece/Pieces per week |
| Product Name: | LVDS LCD Display Cable LVDS Cable | Application: | Display |
|---|---|---|---|
| Pin: | 30pins | Wire: | UL1571 28AWG |
| Insulation Material: | Rubber, Silica Gel, PE, PVC | Connector: | ASB+DF14-20P Or Customized |
| Length: | Customized | Color: | Customized |
| High Light: | 30 Pins LVDS Cable,DF14-20P LVDS LCD Cable |
||

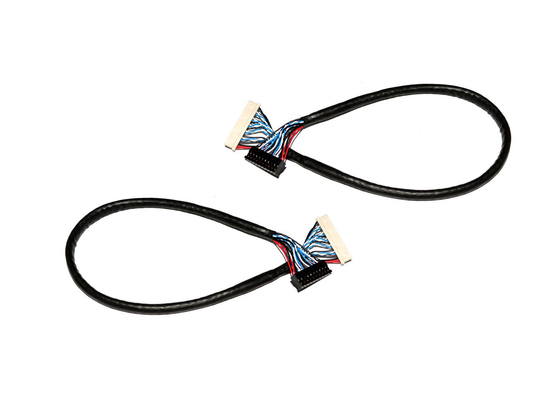

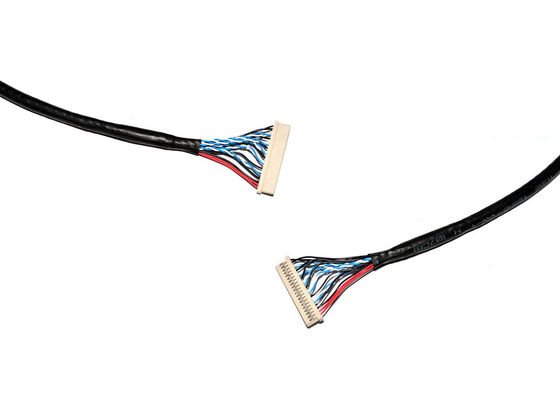

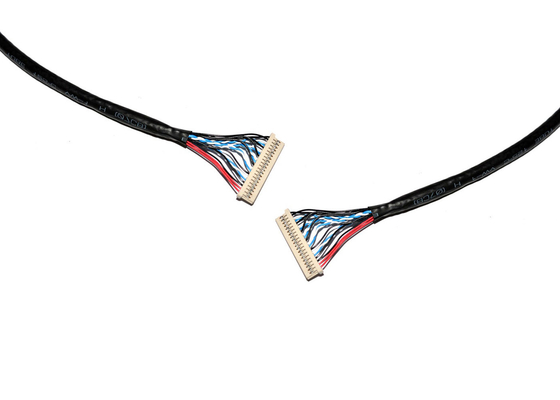

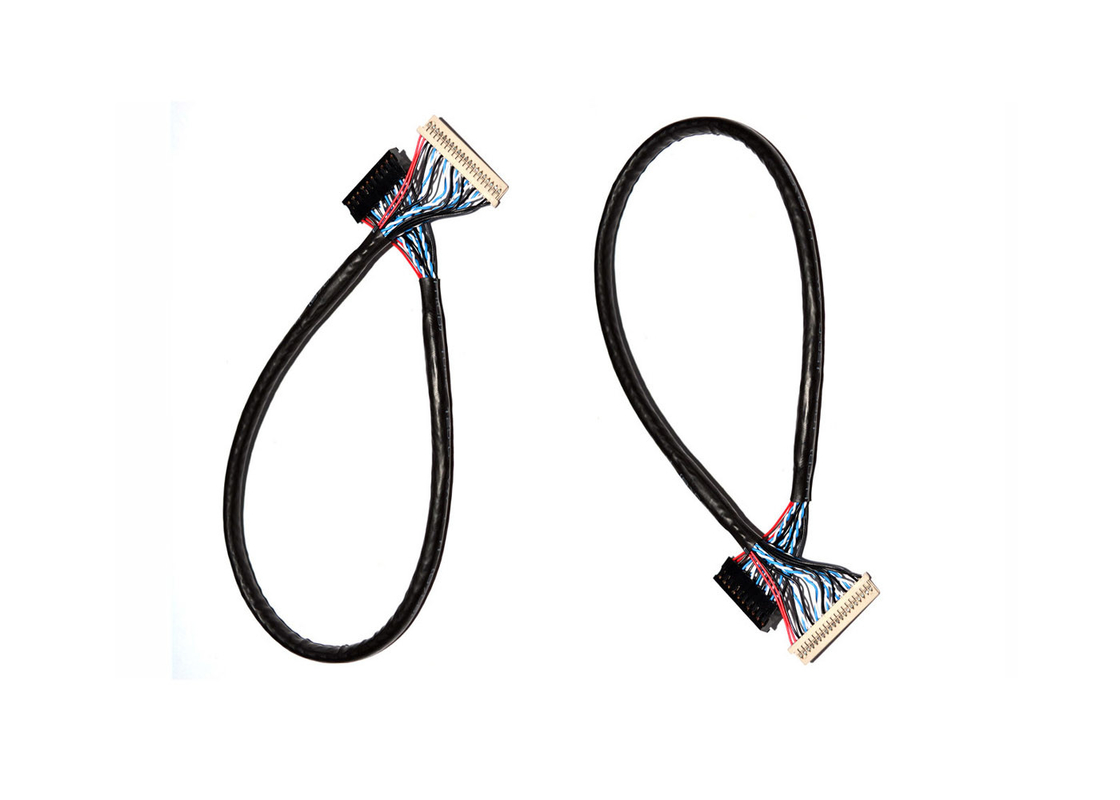

LVDS LCD Display Cable ABS Imported Terminal Cable LVDS Cable DF14-20P LCD Screen Cable
Product introduction
☀ We have IPEX LVDS CABLE, KEL LVDS CABLE, HIROSE LVDS CABLE, ACES LVDS CABLE,JAE LVDS CABLE, MOLEX LVDS CABLE, STARCONN LVDS CABLE,FFC LVDS CABLE, JST LVDS CABLE etc.
☀ Our Lvds cables can be made in different connector/length/pitch/pins etc., if you need, we can accept customized.
☀ We can produce Lvds cable,LED cable,Flat IDC cable,FFC,Waterproof cable,Wire harness and so on.
☀ If you require a special Lvds cable not found here, you can create your own Lvds cable by calling our sales department.
Parameters:
| Place of Origin | Jiangsu,China |
| Brand Name | SYH |
| Model Number | SYH-L006 |
| Conductor Materials | Copper, Aluminum, Customized |
| Wire |
UL1571 28AWG or Customized |
| Insulation Material | Rubber, Silica gel, PE, PVC |
| Connector Type | ASB+DF14-20P or Customized |
| Length | 300mm or Customized |
| Application | Electronic, Automotive, Vehicles, Home application etc. |
| MOQ | Small quantity can be accepted |
| Sample | Sample can be provided for evaluating |
| Sevice | OED ODM accepted |
| Delivery Time | 3-15 days upon receipt of payment |
| Packaging | One product with one PE bag packaging , then outside carton |
| Test | 100% tested before goods sent out |
Characteristic
It provides a high data transfer rate while having very low power consumption. In addition, it has many other advantages:
1. Power supply voltage compatibility as low as 2V
2. Low noise
3. High noise suppression capability
4. Reliable signal transmission
5. Can be integrated into system-level IC
6. The data rate of products using LVDS technology can be from several hundred Mbps to 2Gbps.
7. It is driven by current. The voltage is obtained by placing a load on the receiving end. When the current flows in the forward direction, the output of the receiving end is 1, and otherwise it is 0.
8. Its swing range is 250mv-450mv.
9. This technology is based on ANSI/TIA/EIA-644LVDS interface standard.
20PIN single 6 definition:
1: Power supply 2: Power supply 3: Ground 4: Ground 5: R0-6: R0+ 7: Ground 8: R1- 9: R1+ 10: Ground 11: R2- 12: R2+ 13: Ground 14: CLK-15: CLK+ 16 Empty 17 empty 18 empty 19 empty 20 empty
The resistance between each set of signal lines is (about 120 ohms for digital watches)
20PIN double 6 definition:
1: Power supply 2: Power supply 3: Ground 4: Ground 5: R0-6: R0+ 7: R1- 8: R1+ 9: R2- 10: R2+ 11: CLK-12: CLK+ 13: RO1- 14: RO1+ 15: RO2 -16: RO2+ 17: RO3- 18: RO3+
19: CLK1- 20: CLK1+
The resistance between each set of signal lines is (about 120 ohms for digital watches)
20PIN single 8 definition:
1: Power supply 2: Power supply 3: Ground 4: Ground 5: R0-6: R0+ 7: Ground 8: R1- 9: R1+ 10: Ground 11: R2- 12: R2+ 13: Ground 14: CLK-15: CLK+ 16 : R3- 17: R3+
The resistance between each set of signal lines is (about 120 ohms for digital watches)
30PIN single 6 definition:
1: empty 2: power supply 3: power supply 4: empty 5: empty 6: empty 7: empty 8: R0-9: R0+ 10: ground 11: R1- 12: R1+ 13: ground 14: R2- 15: R2+ 16: Ground 17: CLK-18: CLK+ 19: Ground 20: Empty-21: Empty 22: Empty 23: Empty 24: Empty 25: Empty 26: Empty 27: Empty 28 Empty 29 Empty 30 Empty
The resistance between each set of signal lines is (about 120 ohms for digital watches)
30PIN single 8 definition:
1: empty 2: power supply 3: power supply 4: empty 5: empty 6: empty 7: empty 8: R0-9: R0+ 10: ground 11: R1- 12: R1+ 13: ground 14: R2- 15: R2+ 16: Ground 17: CLK-18: CLK+ 19: Ground 20: R3- 21: R3+ 22: Ground 23: Empty 24: Empty 25: Empty 26: Empty 27: Empty 28 Empty 29 Empty 30 Empty
The resistance between each set of signal lines is (about 120 ohms for digital watches)
30PIN double 6 definition:
1: Power supply 2: Power supply 3: Ground 4: Ground 5: R0-6: R0+ 7: Ground 8: R1- 9: R1+ 10: Ground 11: R2- 12: R2+ 13: Ground 14: CLK-15: CLK+ 16 : Ground 17: RS0-18: RS0+19: Ground 20: RS1- 21: RS1+ 22: Ground 23: RS2- 24: RS2+ 25: Ground 26: CLK2- 27: CLK2+
The resistance between each set of signal lines is (about 120 ohms for digital watches)
30PIN double 8 definition:
1: Power supply 2: Power supply 3: Power supply 4: Empty 5: Empty 6: Empty 7: Ground 8: R0-9: R0+ 10: R1- 11: R1+ 12: R2- 13: R2+ 14: Ground 15: CLK-16 : CLK+ 17: Ground 18: R3- 19: R3+ 20: RB0-21: RB0+ 22: RB1- 23: RB1+ 24: Ground 25: RB2- 26: RB2+ 27: CLK2- 28: CLK2+ 29: RB3- 30: RB3+
The resistance between each set of signal lines is (about 120 ohms for digital watches)
Generally, 14PIN, 20PIN and 30PIN are LVDS interfaces.
