Hard work, integrity, win-win cooperation
 |
| Place of Origin: | Jiangsu,China |
| Brand Name: | Sanyouhe |
| Certification: | UL、IATF、ISO |
| Model Number: | SYH-L010 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | One product with one PE bag packaging , then outside carton |
| Delivery Time: | 3-15 days after payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000000 Piece/Pieces per week |
| Product Name: | LVDS LCD Display Cable LVDS Cable | Application: | Display |
|---|---|---|---|
| Pin: | 10/14/20/30/32/35/40/50 Pins | Jacket: | PE |
| Core Material: | Tinned Alloy | Connector: | I-PEX 20373-040T Or Customized |
| Length: | 300mm Or Customized | Color: | Gray,Blue Or Customized |
| Highlight: | PE Jacket LVDS coaxial cable,300mm LVDS cable |
||

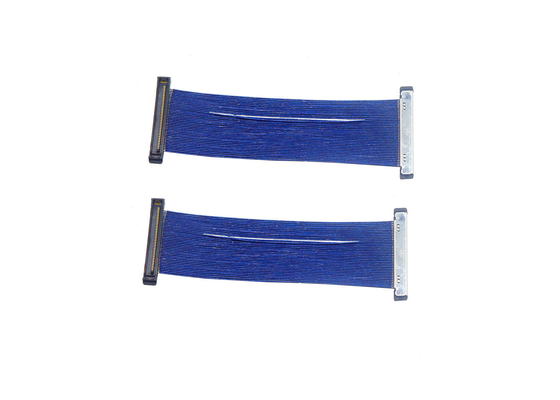

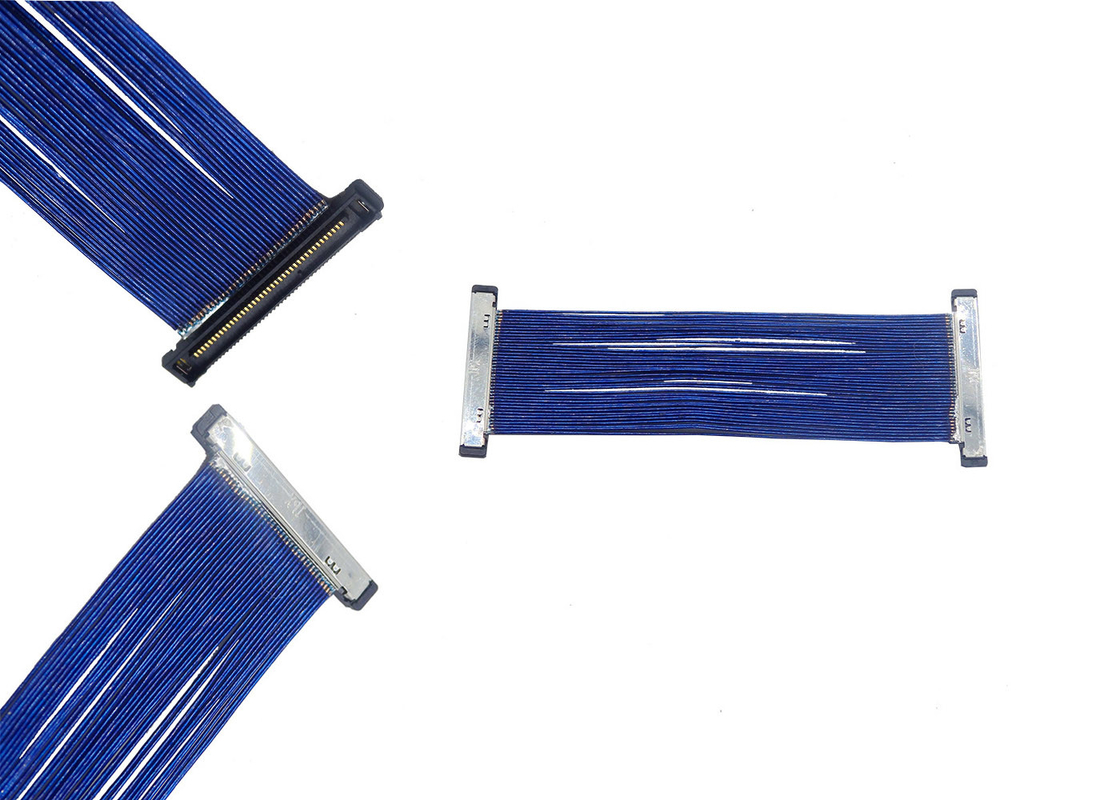

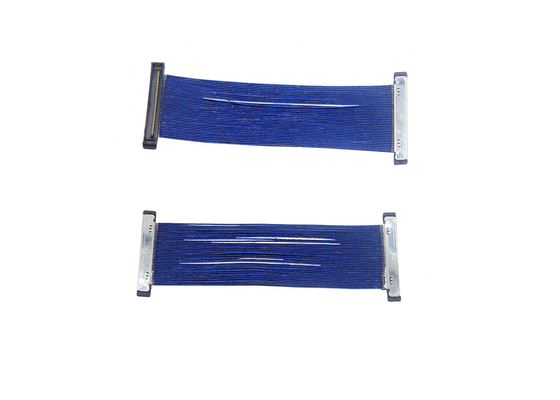

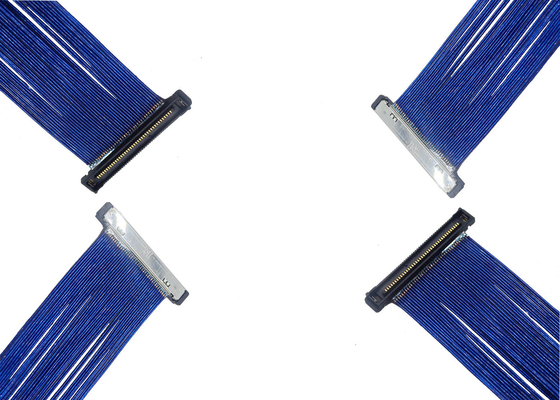

I-PEX 20373-040T LVDS Cable Ultra-Fine Coaxial Cable HD Camera Screen Cable HD Connector
Product introduction
Parameters:
| Place of Origin | Jiangsu,China |
| Brand Name | SYH |
| Model Number | SYH-L010 |
| Pin | 10/14/20/30/32/35/40/50 pins |
| Wire |
Customized |
| Insulation Material | Rubber, Silica gel, PE, PVC |
| Connector Type | I-PEX 20373-040T or Customized |
| Length | 300mm or Customized |
| Application | Electronic, Automotive, Vehicles, Home application etc. |
| MOQ | Small quantity can be accepted |
| Sample | Sample can be provided for evaluating |
| Sevice | OED ODM accepted |
| Delivery Time | 3-15 days upon receipt of payment |
| Packaging | One product with one PE bag packaging , then outside carton |
| Test | 100% tested before goods sent out |
lvds connector definition
LVDS connectors, also known as RS-644 bus interface bai du, is a data transmission and interface technology that appeared only in the 1990s. LVDS is a low voltage difference dao sub-signal. The core of this technology is to use a very low voltage swing to transmit data at a high speed differential, which can achieve point-to-point or point-to-multipoint connection, with low power consumption, low bit error rate, low The characteristics of crosstalk and low radiation, the transmission medium can be a copper PCB connection, or a balanced cable. LVDS is more and more widely used in systems that require high signal integrity, low jitter, and common model performance. At present, the popular LVDS technical specifications have two standards: one is the ANSI/TIA/EIA-644 standard of TIA/EIA (Telecommunications Industry Alliance/Electronic Industry Alliance), and the other is the IEEE 1596.3 standard.
SYH manufactures high quality custom LVDS cable assemblies. Irrespective of the length and purpose, SYH can make custom low voltage differential cable assemblies to fit your needs. Each custom cable assembly .is built to our customers’ specifications and is 100% quality tested. Our Engineers have designed over 10,000 unique cables and are part of the design process from start to finish, ensuring that each and ever customer receives exactly what they are looking for.
☀ We have IPEX LVDS CABLE, KEL LVDS CABLE, HIROSE LVDS CABLE, ACES LVDS CABLE,JAE LVDS CABLE, MOLEX LVDS CABLE, STARCONN LVDS CABLE,FFC LVDS CABLE, JST LVDS CABLE etc.
☀ Our Lvds cables can be made in different connector/length/pitch/pins etc., if you need, we can accept customized.
☀ We can produce Lvds cable,LED cable,Flat IDC cable,FFC,Waterproof cable,Wire harness and so on.
☀ If you require a special Lvds cable not found here, you can create your own Lvds cable by calling our sales department.
How to produce a LVDS cable
LVDS Cable means Low Voltage Differential Signaling Cable. It is widely used in many fields .Now, You can see it in LED TV, Note Book etc. Because we usually connect display side and Mother board side together through LVDS Cable. But how to produce a high-quality LVDS cable ?
LVDS Cable is a kind of custom cable. We must make a drawing before production. The drawing must shows connector type , length ,Pin assignment and other required information.
Now, please allow us to introduce how to produce a LVDS cables:
1. we cut wire and crimp terminals on wires by using Fully automtic swivel arm crimping machine .
2. we need to test Terminal Pulling Force every hour by using tester as below:
3. assemble panel and then twist wires
4. assemble mother board side connector
5. test length and then the first test for pin assignment ,open, short etc
6. assemble braid.
7. assemble Acetate Cloth tape and fix it
8. the second test for pin assignment ,open ,short etc as below
9. Appearance inspection as below
10. QC sampling inspection and then packing.
Now ,we finish a LVDS Cable.
