| Place of Origin: | JIANGSU,CHINA |
| Brand Name: | Sanyouhe |
| Certification: | UL、IATF、ISO |
| Model Number: | SYH-O013 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 100/200/300/500pcs per bag , then outside carton |
| Delivery Time: | 3-15 days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 50000 PCS/per week |
| Features: | Waterproof | Product Name: | LED Car Headlight Power Supply Overmolded Connect Wires |
|---|---|---|---|
| Work Frequency: | Low Frequency | Contact Material: | Cooper |
| Pins: | 6pins Or Customized | Insulation Material: | PVC Or Customized |
| Wire Length: | 130mm Or Customized | Wire Color: | Black Or Customized |
| Highlight: | 6 Pins Overmolded Cable Assemblies,130mm overmolded cable assembly |
||

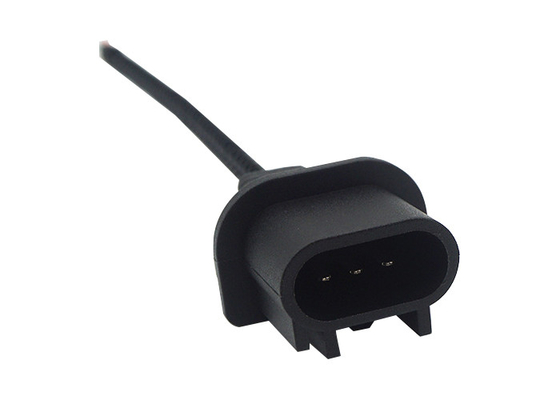

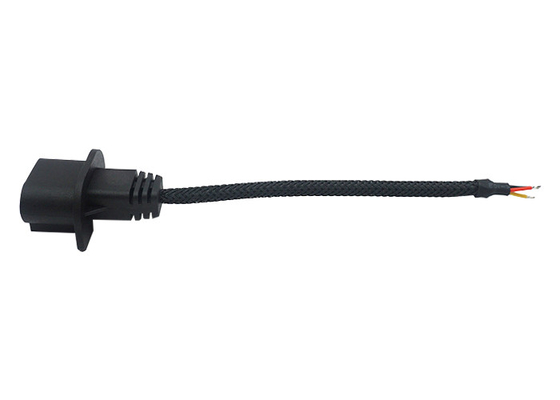

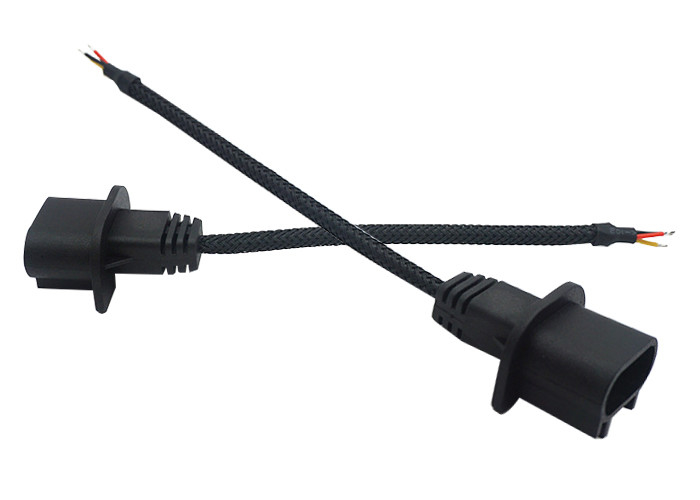

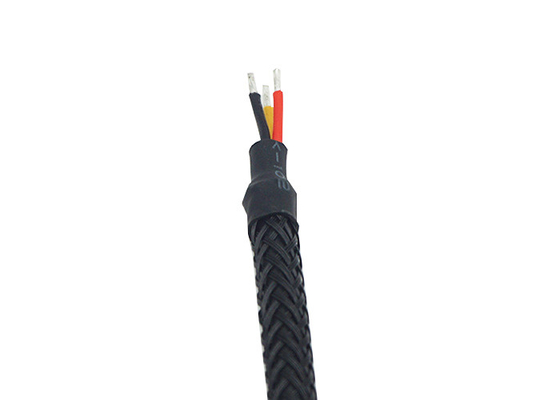

130mm Overmolded Cable Assemblies PVC Black LED Car Headlight Power Supply Overmolded Connect Wires
Production information :
Conductor Sizes
We can extrude conductors as small as 34 gauge and as large as 12 gauge. These can be combined to create a mixed gauge cable.
Conductor Colors
Our custom wire and cable harness capabilities are extensive, from 1 conductor to cables with more than 50 conductors. Custom colors, striping and marking are available to meet your wiring harness design requirements.
Stranding Sizes
Your conductors can be made with stranding as small as 0.002 inches (0.05mm) which is excellent for hi-flex, supple cables. If you just need a standard power conductor we can use stranding as large as 0.01 inches (0.25 mm). Stranding can be bare copper, tinned stranding, tinned conductor or even plated with precious metals such as silver for increased conductivity.
Conductor Insulation
The first protection in any cable is the conductor’s insulation. Our wire and cable extrusion capabilities include a wide range of materials to match your requirements for flexibility, abrasion resistance and environmental conditions. We use the range from basic PVC, PE or PP. We also use insulating materials such as natural rubber, PU, TPE, PTFE (Teflon®) and silicone.
Materials
Polyvinylchloride (PVC)
Polyurethane (PU)
Thermoplastic elastomer (TPE)
Thermoplastic polyester elastomer (TPEE)
Thermoplastic vulcanizate (TPV)
Polytetrafluoroethylene (Teflon®)
Silicone
The hardness or softness of each material can be varied.
Ul® Certified Wire & Cable
There are many standard UL® cable types. UL® standards help designers choose a cable with known specifications instead of creating one from scratch. We are certified by UL® to produce many standard types of wire and cable harnesses.
Parameter:
| Product name | LED Car Headlight Power Supply Overmolded Connect Wires |
| Work frequency | Low frequency |
| Features | Waterproof |
| Contact material | Cooper |
| Pins | 6pins or customized |
| Maximum outer diameter | Customized |
| Interface type | Customized |
| Insulation material | PVC or customized |
| Connectors | Customized |
| Shape | Strip or customized |
| Wire length | 130mm or Customized |
| Wire Color | Black or Customized |
| Certificates | RoHS,CE,UL,TUV,ISO |
| MOQ | Small quantity can be accepted |
| Sample | Samples confirmed first before mass production |
| Sevice | OEM ODM accepted |
| Delivery Time | 3-15 days upon receipt of payment |
| Packaging | 100/200/300/500pcs per bag , then outside carton |
| Test | Professional breakover and pulling force test before goods sent out |
| Lead time | 3-15 days |
The quality of the wire harness material directly affects the quality of the wire harness. The choice of wire harness material is related to the quality and service life of the wire harness. In the selection of wire harness products, don't be greedy for cheap, cheap wire harness products may use poor quality wire harness materials. How to distinguish the quality of the harness? Understand the material of the wiring harness. The following is the material of wire harness selection.
The wiring harness is generally composed of wires, insulating sheaths, terminal blocks and packing materials.
1. Material selection of terminal
The copper used for terminal materials (copper parts) is mainly brass and bronze (brass is slightly lower in hardness than bronze), of which brass accounts for a larger proportion. In addition, different coatings can be selected according to different needs.
Second, the choice of insulating sheath
The commonly used materials of sheath material (plastic parts) are PA6, PA66, ABS, PBT, pp, etc. According to the actual situation, flame retardant or reinforcing materials can be added to the plastic to achieve the purpose of reinforcing or flame retardant, such as adding glass fiber reinforcement.
Third, the choice of wire harness
According to the different use environment, choose the corresponding wire material.
Fourth, the choice of dressing materials
Wire harness bandaging plays the role of wear resistance, flame retardant, anticorrosion, interference prevention, noise reduction, and beautification of appearance. Generally, the bandage material is selected according to the working environment and the size of the space. There are usually adhesive tapes, corrugated pipes, PVC pipes, etc. in the choice of packing materials.
