CONNECTING US TO BUILD OUR FUTURE
 |
| Place of Origin: | JIANGSU,CHINA |
| Brand Name: | Sanyouhe |
| Certification: | UL、IATF、ISO |
| Model Number: | SYH-O015 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 100/200/300/500pcs per bag , then outside carton |
| Delivery Time: | 3-15 days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 50000 PCS/per week |
| Features: | Waterproof | Product Name: | Plug-And-Sock Waterproof Connection Overmolded Wires |
|---|---|---|---|
| Waterproof Degree: | IP67 | Work Frequency: | Low Frequency |
| Wire Length: | 200mm Or Customized | Rated Voltage: | 300V |
| Rated Current: | Customized | Connectors: | Customized |
| High Light: | Bicolor waterproof power cable,M18 waterproof power cord |
||

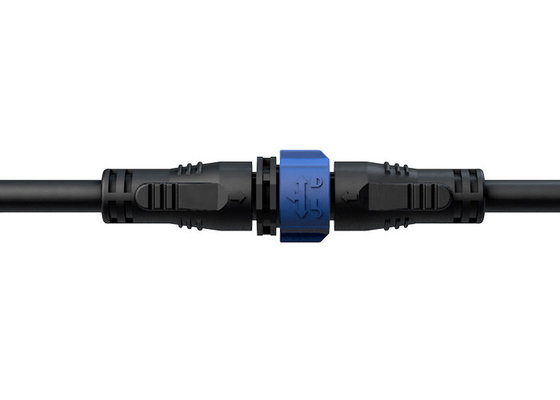

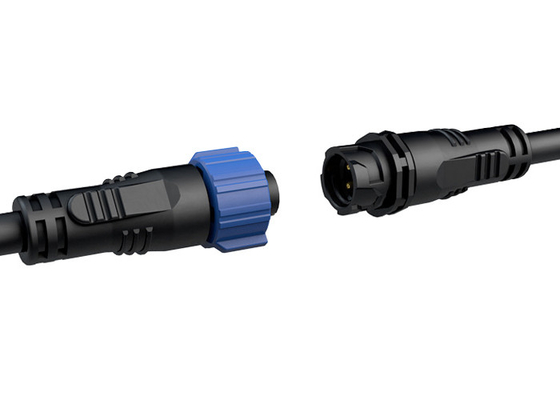

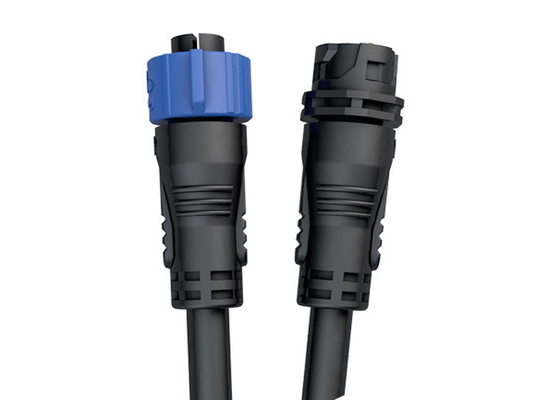

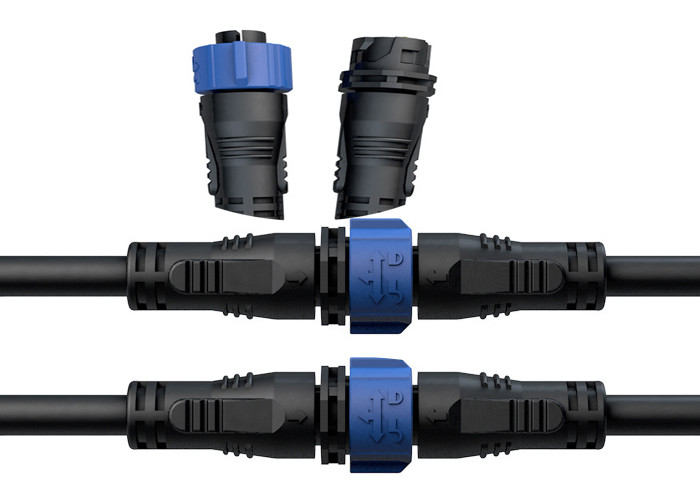

M18 Overmolded Cable Assemblies Bicolor 200mm IP68 Plug-And-Sock Waterproof Connection Overmolded Wires
Production information :
Overmolding, or Injection Molding, is a process that utilizes molten plastic material injected into a mold cavity; this solidifies into a shape that conforms to the contour of the mold. This makes it possible to encapsulate almost any product in any shape with variables in material, color, and finish. Winchester primarily utilizes thermoplastic materials such as PVCs (polyvinyl chloride), polyamides, polyurethanes, santoprene and others to produce custom cable assemblies solutions.
Parameter:
| Product name | Plug-And-Sock Waterproof Connection Overmolded Wires |
| Waterproof degree | IP67 |
| Work frequency | Low frequency |
| Features | Waterproof |
| Contact material | Copper |
| Pins | Customized |
| Interface type | Snap on type |
| Insulation material | PVC or customized |
| Rated temperature | -40℃~105℃ |
| Connectors | Customized |
| Shape | Strip or customized |
| Wire length | 200mm or Customized |
| Wire Color | Black or Customized |
| Rated voltage | 300V |
| Rated current | Customized |
| Certificates | RoHS,CE,UL,TUV,ISO |
| MOQ | Small quantity can be accepted |
| Sample | Samples confirmed first before mass production |
| Sevice | OEM ODM accepted |
| Delivery Time | 3-15 days upon receipt of payment |
| Packaging | 100/200/300/500pcs per bag , then outside carton |
| Test | Professional breakover and pulling force test before goods sent out |
| Lead time | 3-15 days |
Cable Assembly Overmoldering Process
The overmolding of a cable assembly is accomplished by forcing a material into a mold cavity under a great deal of pressure. For cable assemblies, the most popular materials used for an overmold are thermoplastic or thermoset materials. The injection molding machine, also known as a press, consists of a storage area for the mold resin. Sometimes it can be called a hopper. Delivery for the material is usually an injection ram or a screw-type plunger enclosed inside a metal tube also known as a barrel. Heating elements are installed into the barrel of the machine causing the mold resin to be heated to a molten state.
The process begins with the resin specified for the mold is fed into the heated barrel of the molding machine at the hopper end. It is then mixed with any desired colorants and transits the length of the barrel to the actual mold where the resin and colorant mixture are forced in the mold cavities. Once inside the mold cavity, the material will cool taking on any features designed into the mold itself including logos, trade names, or part numbers.
Why Choosing us?
1. Achieve win-win
2. Competitive price
3. In time service
4. Product warranty
5. Rich experiences
6. High Quality
7. Lead time:7-10 days
8. Offer technology support.
9. Professional and experienced engineers
If you can't find the exact product you need in the pictures,please don't go away.Just contact me freely or send your sample and drawing to us.We will reply you as soon as possible.
Shipping:
1.FedEx/DHL/TNT/UPS/EMS/Aramex/SF for samples, Door-to-Door;
2. By Air or by Sea for batch goods;Airportport receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 3-7 days for samples; 10-30 days for batch goods.
FAQ:
Q: When will you start to help design?
A: We sketch simple solution for initial discussion, after quotation and order placed then start to drawing and double confirm with client for the design.
Q:How can i get the price?
A:We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
Q:Can I buy samples placing orders?
A:Yes.Please feel free to contact us.
Contact Person: Mrs. Eda Han
Tel: +86-18234096310
