| Place of Origin: | JIANGSU,CHINA |
| Brand Name: | Sanyouhe |
| Certification: | UL、IATF、ISO |
| Model Number: | SYH-O019 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 100/200/300/500pcs per bag , then outside carton |
| Delivery Time: | 3-15 days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 50000 PCS/per week |
| Product Name: | D-coding Overmolded Connection Cables | Wire Gauge: | 22AWG |
|---|---|---|---|
| Rated Voltage: | 250V | Rated Current: | 4A |
| Contact Material: | Copper | Interface Type: | DIN Or Customized |
| Wire Length: | 1000mm Or Customized | Wire Color: | Customized |
| Highlight: | 1000mm custom molded cable assembly,250V Overmolded Cable Assemblies |
||

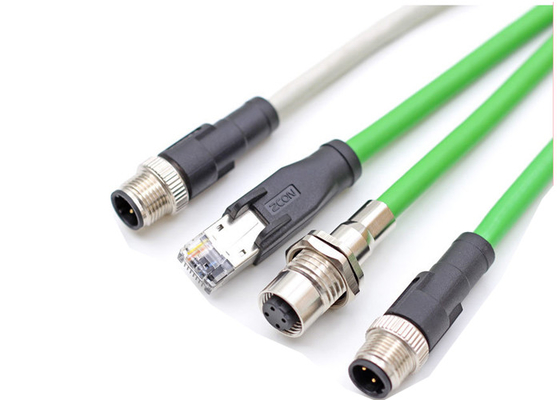

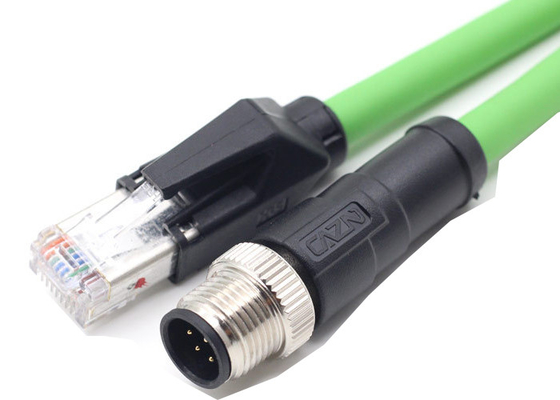

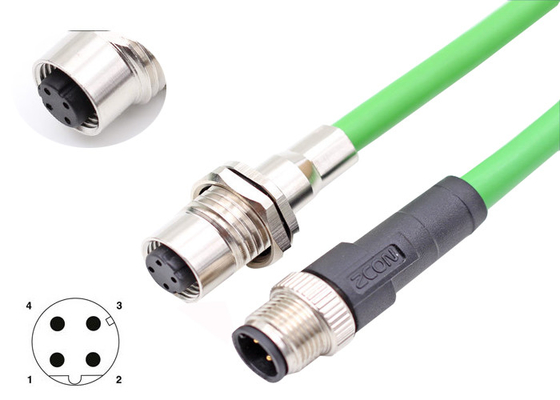

M12 Overmolded Cable Assemblies 1000mm 22AWG D-coding Overmolded Connection Cables
Production information :
The quality of the wire harness material directly affects the quality of the wire harness. The choice of wire harness material is related to the quality and service life of the wire harness. In the selection of wire harness products, don't be greedy for cheap, cheap wire harness products may use poor quality wire harness materials. How to distinguish the quality of the harness? Understand the material of the wiring harness. The following is the material of wire harness selection.
Parameter:
| Product name | D-coding Overmolded Connection Cables |
| Wire gauge | 22AWG |
| Rated voltage | 250V |
| Rated current | 4A |
| Contact material | Copper |
| Features | Waterpfoof |
| Pins | Customized |
| Interface type | DIN or Customized |
| Insulation material | PA66 or customized |
| Rated temperature | -20℃~80℃ |
| Connectors | M12 or Customized |
| Shape | Round or customized |
| Wire length | 1000mm or Customized |
| Wire Color | Customized |
| Certificates | RoHS,CE,UL,TUV,ISO |
| MOQ | Small quantity can be accepted |
| Sample | Samples confirmed first before mass production |
| Sevice | OEM ODM accepted |
| Delivery Time | 3-15 days upon receipt of payment |
| Packaging | 100/200/300/500pcs per bag , then outside carton |

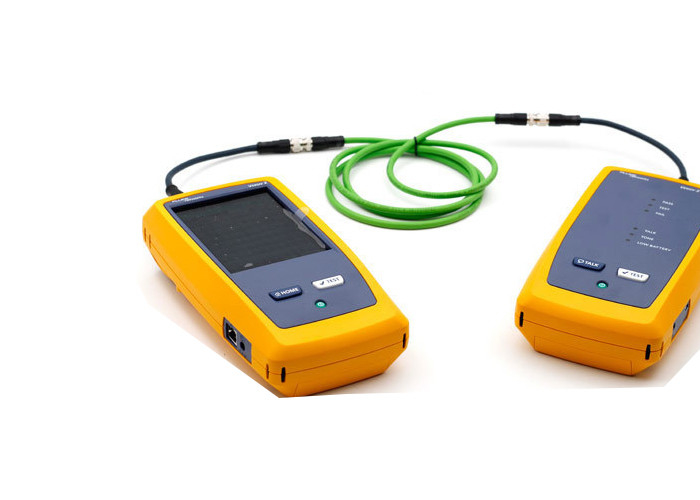

| Test | Professional breakover and pulling force test before goods sent out |
| Lead time | 3-15 days |
AWG(AMERICAN WIRE GANGE) specification:
| AWG | Outer diameter (mm) | Cross-sectional area(mm²) | Resistance (MΩ) | AWG | Outer diameter (mm) | Cross-sectional area(mm²) | Resistance (MΩ) |
| 4/0 | 11.684 | 107.2193 | 0.16 | 27 | 0.3607 | 0.1022 | 198.74 |
| 3/0 | 10.4038 | 85.0114 | 0.2 | 28 | 0.3200 | 0.0804 | 214.32 |
| 2/0 | 9.2659 | 67.4321 | 0.26 | 29 | 0.2870 | 0.0647 | 266.47 |
| 1/0 | 8.2525 | 53.4880 | 0.32 | 30 | 0.2540 | 0.0507 | 640.26 |
| 1 | 7.3482 | 42.4086 | 0.41 | 31 | 0.2261 | 0.0401 | 429.56 |
| 2 | 6.5430 | 33.6240 | 0.51 | 32 | 0.2302 | 0.0324 | 531.65 |
| 3 | 5.8268 | 26.6652 | 0.65 | 33 | 0.1803 | 0.0255 | 674.98 |
| 4 | 5.1892 | 21.1492 | 0.82 | 34 | 0.1600 | 0.0201 | 857.28 |
| 5 | 4.6203 | 16.7657 | 1.03 | 35 | 0.1422 | 0.0159 | 1085.00 |
| 6 | 4.1148 | 13.2980 | 1.63 | 36 | 0.1270 | 0.0127 | 1361.02 |
| 7 | 3.6652 | 10.5509 | 2.06 | 37 | 0.1143 | 0.0103 | 1680.27 |
| 8 | 3.2639 | 8.3669 | 2.6 | 38 | 0.1016 | 0.0081 | 2126.60 |
| 9 | 2.9058 | 6.6315 | 3.28 | 39 | 0.0889 | 0.0062 | 2777.60 |
| 10 | 2.5883 | 5.2615 | 4.14 | 40 | 0.0787 | 0.0049 | 3540.64 |
| 11 | 2.3038 | 4.1684 | 5.21 | 41 | 0.0711 | 0.0040 | 4339.99 |
| 12 | 2.0523 | 3.3081 | 6.56 | 42 | 0.0635 | 0.0032 | 5444.09 |
| 13 | 1.8288 | 2.6268 | 8.28 | 43 | 0.0559 | 0.0025 | 7030.07 |
| 14 | 1.6281 | 2.0820 | 10.44 | 44 | 0.0508 | 0.0020 | 8506.39 |
| 15 | 1.4503 | 1.6521 | 10.44 | 45 | 0.0447 | 0.0016 | 10984.5 |
| 16 | 1.2903 | 1.3076 | 13.18 | 46 | 0.0399 | 0.0012 | 138.04 |
| 17 | 1.1506 | 1.0398 | 16.58 | 47 | 0.0356 | 0.0010 | 17360.0 |
| 18 | 1.0236 | 0.8229 | 20.95 | 48 | 0.0315 | 0.0008 | 22129.0 |
| 19 | 0.9119 | 0.6530 | 26.40 | 49 | 0.0282 | 0.0006 | 27615.9 |
| 20 | 0.8128 | 0.5189 | 33.23 | 50 | 0.0251 | 0.0005 | 34716.4 |
| 21 | 0.7239 | 0.4116 | 41.89 | 51 | 0.0224 | 0.0004 | 43938.0 |
| 22 | 0.6426 | 0.3243 | 53.16 | 52 | 0.0198 | 0.0003 | 55926.3 |
| 23 | 0.5740 | 0.2588 | 66.62 | 53 | 0.0178 | 0.0002 | 69439.9 |
| 24 | 0.5105 | 0.2047 | 84.22 | 54 | 0.0157 | 0.0002 | 88516.0 |
| 25 | 0.4547 | 0.1624 | 106.19 | 55 | 0.0140 | 0.0002 | 112481.2 |
| 26 | 0.4039 | 0.1281 | 134.59 | 56 | 0.0124 | 0.0001 | 111714.1 |
The wiring harness is generally composed of wires, insulating sheaths, terminal blocks and packing materials.
1. Material selection of terminal
The copper used for terminal materials (copper parts) is mainly brass and bronze (brass is slightly lower in hardness than bronze), of which brass accounts for a larger proportion. In addition, different coatings can be selected according to different needs.
Second, the choice of insulating sheath
The commonly used materials of sheath material (plastic parts) are PA6, PA66, ABS, PBT, pp, etc. According to the actual situation, flame retardant or reinforcing materials can be added to the plastic to achieve the purpose of reinforcing or flame retardant, such as adding glass fiber reinforcement.
Third, the choice of wire harness
According to the different use environment, choose the corresponding wire material.
Fourth, the choice of dressing materials
Wire harness bandaging plays the role of wear resistance, flame retardant, anticorrosion, interference prevention, noise reduction, and beautification of appearance. Generally, the bandage material is selected according to the working environment and the size of the space. There are usually adhesive tapes, corrugated pipes, PVC pipes, etc. in the choice of packing materials.
