| Place of Origin: | Jiangsu,China |
| Brand Name: | Sanyouhe |
| Certification: | UL、IATF、ISO |
| Model Number: | SYH-H021 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | One product with one PE bag packaging , then outside carton |
| Delivery Time: | 3-15 days after payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000000 Piece/Pieces per week |
| Product Name: | Pigtail Rubber Duck WiFi Antenna | Frequency Range: | 1800-2600mhz |
|---|---|---|---|
| Gain: | 5Dbi | Connector: | IPEX/UFL |
| VSWR: | ≤ 1.8 | Impedance: | 50Ω |
| Polarization: | Vertical | Color: | Black White Or Customized |
| High Light: | 4g pigtail wifi antenna,5dbi pigtail wifi antenna,2600mhz pigtail wifi antenna |
||

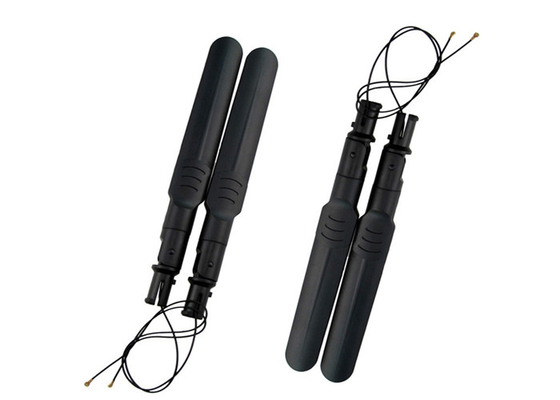

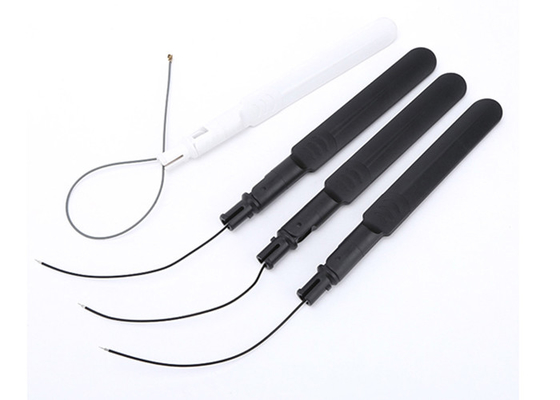

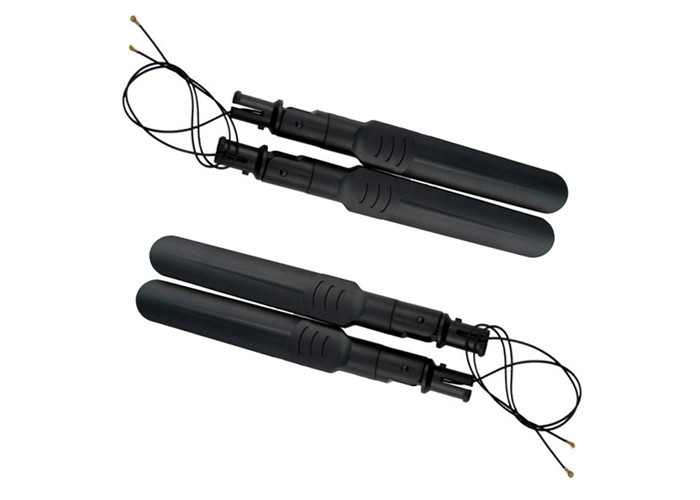

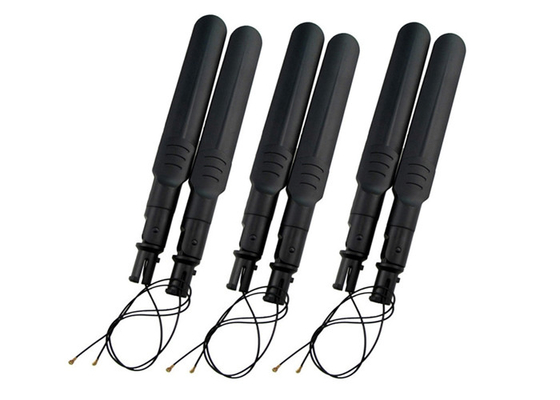

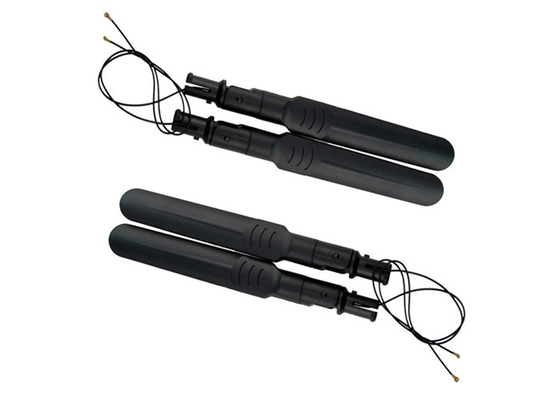

1800-2600mhz 5dbi 4g Flat Quant Rubber Antenna With RF1.13 Cable Pigtail Wifi Antenna
Product introduction
There are many types of WiFi antennas, but there are two common ones. One is the indoor antenna, which has the advantages of convenience and flexibility, but the disadvantage is that the gain is small and the transmission distance is short; the other is the outdoor antenna. There are many types of outdoor antennas, one is a pot-shaped directional antenna, and the other is a rod-shaped omnidirectional antenna. The advantage of the outdoor antenna is that it has a long transmission distance and is more suitable for long-distance transmission.
Frequency:VHF-UHF Antenna , 315-430-470mhz Antenna , 868-915mhz Antenna , 2G GSM/CDMA(890-900-1800-1900Mhz) Antenna , 3G (850-900-1800-1900-2100mhz) Antenna , 2.4G Bluetooth /WIFI network card (2400-2500mhz) , GPS Antenna(1575.42mhz) ,GPS+BD(1575+1561), GPS+GSM+4G Antenan , 4G(700-960/1700-2680mhz) , NB(824-960mhz) Antenna , 5G Antenna(2150-5850mhz) , 2.4G+5G Dual Band
The gain refers to the ratio of the power density of the signal generated by the actual antenna and the ideal radiating unit at the same point in space under the condition of equal input power. It quantitatively describes the degree to which an antenna concentrates the input power and radiates it. The gain obviously has a close relationship with the antenna pattern. The narrower the main lobe of the pattern and the smaller the side lobe, the higher the gain.
Material: Rubber / plastic , car / sucker , glass antenna , positioning / navigation / nautical , built-in , antenna cable , antenna connector , wire / cable , custom antenna .
Applications:Security monitoring, wireless router, mobile phone antenna, IoT smart, smart home, car mobile antenna, network HD camera, advertising all-in-one, shared vending machine, TV antenna, radio antenna, 5G image transmission, drone antenna
☀ Our wifi antennas can be made in different gains and frequency, if you need, we can accept customized.
☀ Our wifi antennas can be made with different connectors such as sma connectors, tnc connectors and n connectors.
☀ We can also produce GSM antennas, indoor or out door panel antennas, sucker antenna and so on.
☀ If you need, we can also customized cable assembly used in antnna like sma to IPEX/UFL cable assemblies. For this product, please contact our sales deparment and get more details.
☀ If you require a special antenna not found here, you can create your own antenna by calling our sales department.
Parameters:
| Place of Origin | Jiangsu,China |
| Brand Name | SYH |
| Model Number | SYH-H021 |
| Frequency | 1800-2600Mhz |
| Connector | IPEX/UFL |
| V.S.W.R | ≤1.8 |
| Gain | 5dbi |
| Antenna length | 195mm |
| MOQ | Small quantity can be accepted |
| Sample | Sample can be provided for evaluating |
| Sevice | OED ODM accepted |
| Delivery Time | 3-15 days upon receipt of payment |
| Packaging | One product with one PE bag packaging , then outside carton |
| Test | 100% tested before goods sent out |
Our advantage
1. 100% Tested Before Delivery.
2. Prompt Delivery
3. Free Samples .
4. Favorable And Competive Price
5. Short lead time
6. Professional design ability.
7. Provide a full set of connection solutions
