Hard work, integrity, win-win cooperation

|
| Place of Origin: | JIANGSU,CHINA |
| Brand Name: | Sanyouhe |
| Certification: | UL、IATF、ISO |
| Model Number: | SYH-F024 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 100/200/300/500pcs per bag , then outside carton |
| Delivery Time: | 3-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 50000 PCS/per week |
| Base Material: | Copper | Processing Technology: | Electrolytic Foil |
|---|---|---|---|
| Insulation Materials: | Metal Composite Materials | Transport Package: | Carton |
| Copper Thickness: | 1oz | Testing Point: | 500 |
| PCB Standard: | Ipc-II | Surface Finishing: | Immersion Gold |
| Min Hole Size: | 0.2mm | FPC Thickness: | 0.13mm |
| High Light: | 0.50mm FFC Flexible Flat Cable,Electrolytic Foil FFC Flexible Flat Cable,fingerprint sensor ffc fpc cable |
||

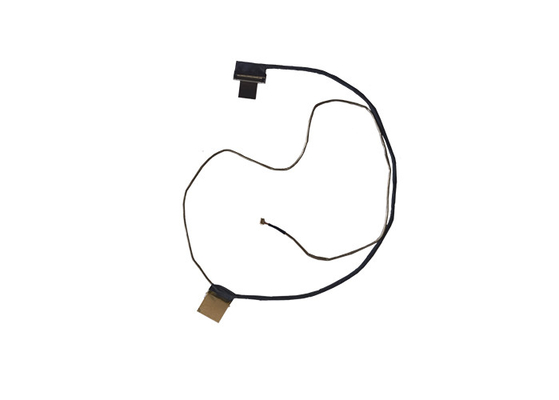

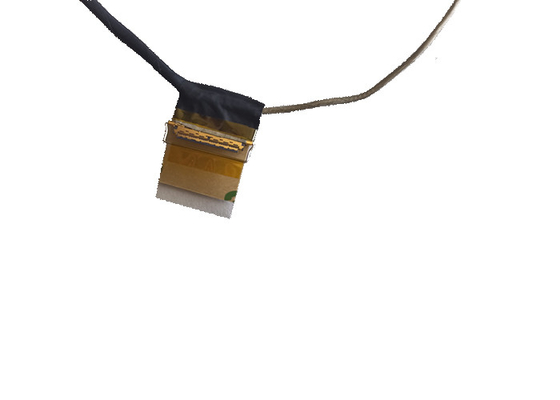

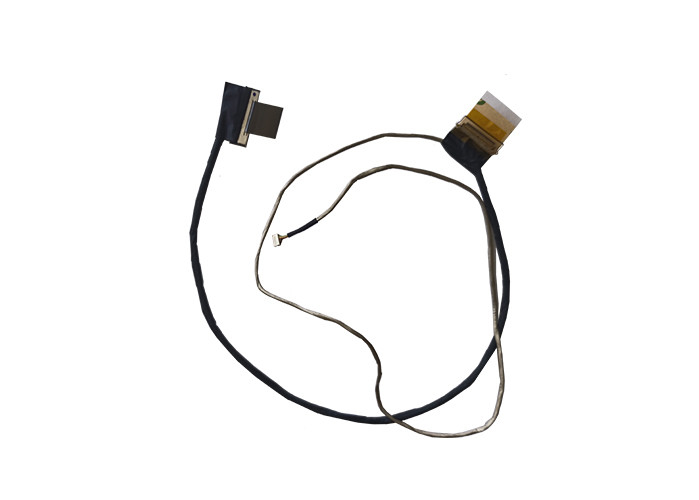

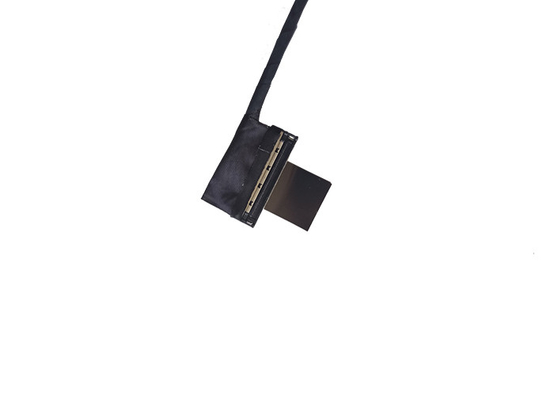

Electrolytic Foil Made 0.50 Mm Ffc With Flexible Printed Circuit For Fingerprint Sensor
Engineering Capacity :
| Item | SpecificationParameter | Remarks | item | SpecificationParameter | Remarks |
| PCB Layers | 1 to 18layers | Surface treating process of inner layer | Brown Oxide | ||
| PCB Max working panel area | 800mmx 508mm | Registration of inner layer to of inner layer | ±3mil(75um) | ||
| Min board thickness | 4 layer: 0.40mm ;6 layer: 0.80mm ; 8 layer: 1.00mm ;10 layer: 1.20mm | Min drilling diameter | 0.15mm | ||
| Min trace width | 0.1mm | Min diameter of finished hole | 0.1mm | ||
| Min spacing | 0.1mm | Accuracy of hole position | ±2mil(50um) | ||
| Min hole diameter | 0.2mm | Tolerance of drilled slot | ±3mil(75um) | ||
| Min Copper thickness in hole | 0.02mm | PTH hole copper thickness | 0.4-2mil(10-50um) | ||
| PTH size tolerance | ±2mil | 50um | Image to image tolerance | ±3mil(75um) | |
| NPTH size tolerance | ±1mil | 25um | Outer layer line width/space(min) | ±3mil/3mil(75um/75um) | |
| Hole position tolerance | ±0.05mm | Tolerance of etching | ±1mil(25um) |
Peculiarity of FPC :
1. Small size, high density integration ；
2. Save space ；
3. Simplify layout procedure and simplify wiring ；
4. Save human resources cost ；
5. with good flexibility and folded easily and freely .
FPC Application :
1. Camera, digital camera, CCTV Camera/Drones ；
2. Printer, fax machine, scanner, robot ；
3. Laptop, LCD screen, CD-ROM drive, hard disk, HDD ；
4. Mobile phone, mobile battery, walkie talkie, mobile antenna, SD card ；
5. Recorder head, laser bald, VCD, DVD ；
6. Car, car DVD, auto meter, GPS ；
7. Aerospace, satellite ；
8. Medical equipment/Home Appliance ；
9. Car electronics/Toy for Children/AV equipment .
FAQ :
Q1. Do you offer samples? is it free or extra?
A1: Yes.we could offer samples with free charge,However, buyer should responsible for shipping freight.
Q2: How to proceed an order?
A2: Firstly, let us know your requirements or application.
Secondly, we quote according to your requirements or our suggestions.
Thirdly, customer confirms the samples and pay deposit for the official order. Finally, we arrange the production and ship once it's ready.
Q3: Do you offer OEM service?
A3: Yes, Sure! Rich experience on printing logo on product and OEM package.
Q4: How many days I can get the goods after payment?
A4: Usually, goods will be shipped within 3 days. By DHL will take about 3~5 days. So total will take about 4~8 days to arrive at your hands.
Q5: Could I get your Photos about the product without the watermark to my website?
A5: Of course, we could do this for you.
Q6: What is your terms of payment ?
A6: For small amount orders, 100% better paid by PayPal or T/T in advance. For large amount orders like more than 10000 USD, 30% T/T in advance , balance fully paid before shipment.
Q7: How do you guarantee my goods right?
A7: Order will be arranged exactly as requested, Also we will take you photos if necessary before delivering out.
