Hard work, integrity, win-win cooperation

|
| Place of Origin: | JIANGSU,CHINA |
| Brand Name: | Sanyouhe |
| Certification: | UL、IATF、ISO |
| Model Number: | SYH-F026 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | PE bag and Carton |
| Delivery Time: | 3-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 35000 PCS/per week |
| Processing Technology: | Electrolytic Foil | Base Material: | Copper |
|---|---|---|---|
| Insulation Materials: | Metal Composite Materials | OEM/ODM: | Available |
| Copper Thickness: | 1oz | FPC Thickness: | 0.13mm |
| Cable Length: | As Long As Customized | Min Line Width: | 4mil |
| Highlight: | Electrolytic Foil FPC Flat Cable,0.4mm Pitch FPC Flat Cable,CCTV Camera FFC Flexible Flat Cable |
||

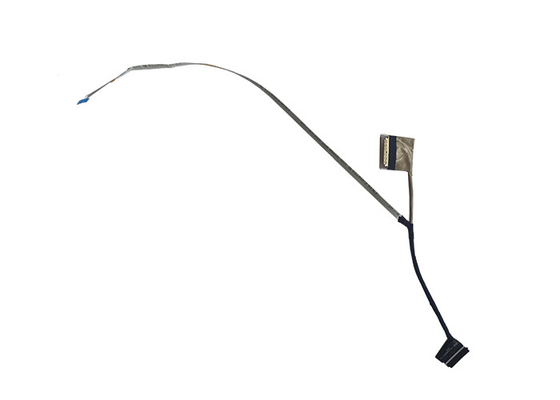

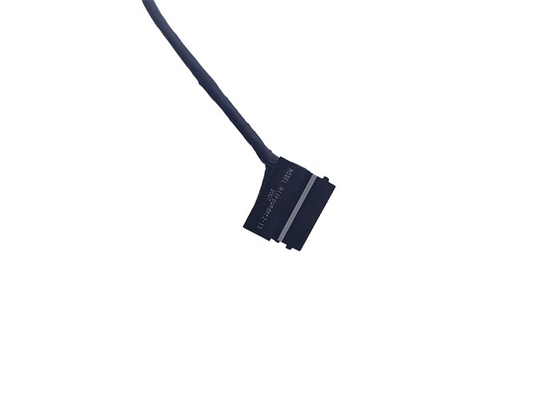

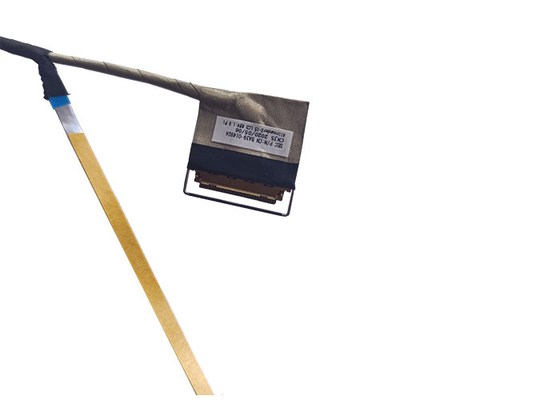

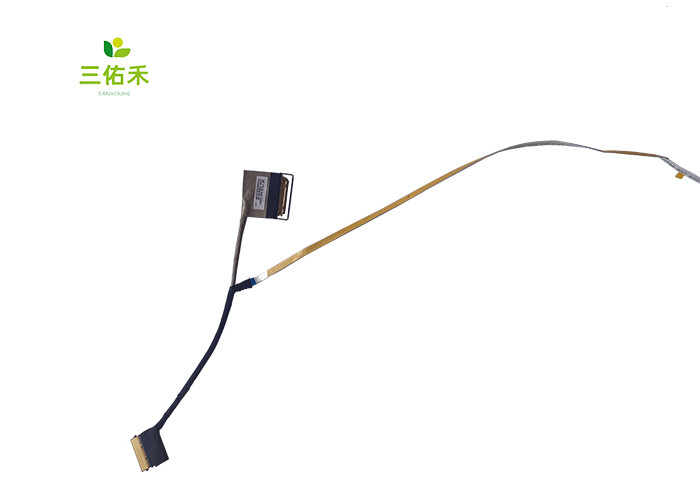

0.4mm Pitch Metal Composite Materials Flexible Board for CCTV Camera Scanner
Common specifications include various pitch flexible cables such as 0.5mm, 0.8mm, 1.0mm, 1.25mm, 1.27mm, 1.5mm, 2.0mm, 2.54mm, etc.
It is widely used in the connection between the print head of various printers and the motherboard, and the signal transmission and board connection of products such as plotters, scanners, copiers, speakers, LCD appliances, fax machines, and various DVD players. In modern electrical equipment, it is almost nowhere.
Raspberry Pi Camera FPC 16CM
| Material type | FR-4, CEM-1, CEM-3, High TG, FR4 Halogen Free, Rogers |
| Board thickness | 0.21mm to 7.0mm |
| Surface finishing | HASL / HASL lead free, HAL, Chemical tin, Immersion Silver/Gold, OSP, Gold plating |
| Layer | 1-20 Layer |
| Solder Mask Color | Yellow/Black/White/Red/Blue/Green |
| Special requirements | Buried and blind vias+controlled impedance +BGA |
| Copper thickness | 0.5 OZ to 6 oz |
| Tolerance | Shape tolerance: ±0.13/Hole tolerance: PTH: ±0.076 NPTH: ±0.05 |
| Certificate | UL, ISO 9001 |
| Profiling | Punching, Routing, Beveling, V-Cuting |
It can be applied to the following industries :
Our wiring harnesses are widely used in the medical industry, electronics industry, household appliances industry, new energy automobile industry, communication industry, industry and manufacturing assembly industry.
Applications in daily life :
Personal computers, mobile phones, washing machines, dryers, microwave ovens, blenders, air conditioners, electric fans, electric blankets, cars, etc.
Why choose us :
1. We own R&D team more than 5 engineers ,prived to you strongest support ；
2. Fast delivery time , reasonable price and sufficient material inventory ；
3. Factory Sale - Most Competitive price than average level ；
4.ISO9001:2015 certificates.
Our Work Process :
Talk with us for your cable demands
You (or our engineer) provide drawing
Confirm drawing
Provide quotation
Discuss samples needs
Sample approved
Payment for your order
Mass product AFTER sample approved
Testing before send out
Delivery
We can do for you :
1-16 layer FR-4 PCB board, 1-2 layer Aluminum PCB.
1-6 oz copper thickness.
0.2 mm hole size.
0.1 mm line width/space.
PCB design and layout.
Assembly,component purchase
Timeframe of delivery :
According to the time of place order,and the quantity of it,The specific delivery time will be given within 1 day after placing the order, and the delivery time will be slightly 3-5 days longer than the actual completion time.
Usually the delivery time is 5-15 days, and the delivery time of complex products will be extended accordingly.
About us :
Sanyouhe is a manufacturer who is committed to provides professional PCB assembly service (SMT & THT), PCB sales and PCB design for your projects.
PCB Assembly is one of the crucial processes before an electronic product comes into being, so you need a reliable factory. Sanyouhe provides our professional assembly service along with all kinds of components at competitive price. We will work with you and your team for one purpose: the best PCBA that fits your specifications, schedule, and quality requirements.
