| Place of Origin: | JIANGSU,CHINA |
| Brand Name: | Sanyouhe |
| Certification: | UL、IATF、ISO |
| Model Number: | SYH-P024 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 100/200/300/500pcs per bag , then outside carton； Inner packing : PE bag / Bubble paper / plastic box ； Outer packaging : Carton Box / Custom packaging / Pallet / Wooden box |
| Delivery Time: | 4-10 working days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 35000 PCS/per week |
| Product Name: | Power Adapter | Service: | OEM ODM Accept |
|---|---|---|---|
| Material: | Copper/pa66/pbt/high Temp | Length: | Customized Length |
| Color: | Customized Color | Sample: | Avaliable |
| Certification: | ISO9001:2008 | ||
| High Light: | 12V 3A Switching Power Adapter,FCC Wall Mount Switching Power Adapter,12V 3A Wall Mount Charger |
||

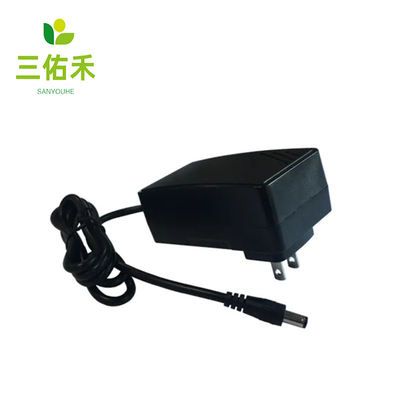

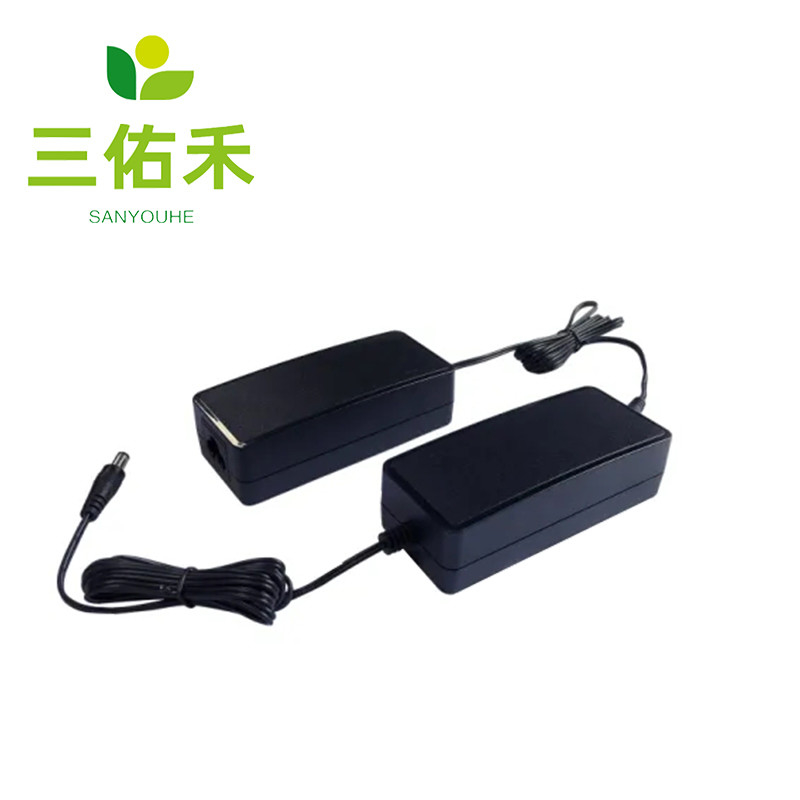

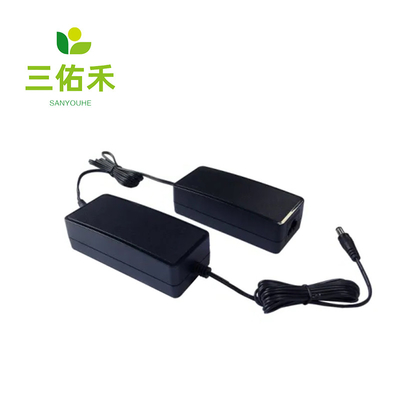

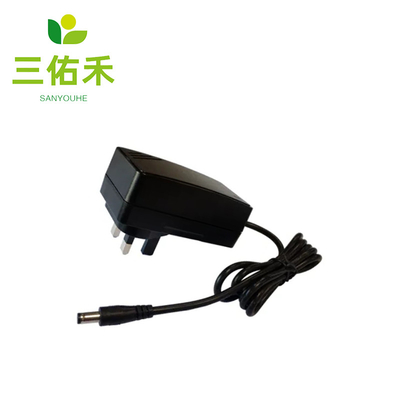

Adapter Manufacturer 12 V Wall Mount Charger Wide Scope Input Switching Power Adapter
The adapter is an interface converter. It can be an independent hardware interface device, allowing the hardware or electronic interface to be connected to other hardware or electronic interfaces, or it can be an information interface. For example: power adapter, tripod base adapter components, USB and serial port adapters, etc.
| Voltage Range | 100-240Vac 50/60Hz |
| Output Voltage | 12V |
| Output Current | 3A |
| Rated Power | 30W |
| Line Regulation | ±1% |
| Load Regulation | ±5% |
| Ripple & Noise | <120mV |
| PFC (Power Factor Correction) | >0.99 |
| Efficiency at Average Load | 88% min |
| Standby Power | <0.1W |
| Operation Temperature | -10 to +50ºC |
| Storage Temperature | -20 to +85ºC |
| Operation Humidity | 20-90% RH |
| Cooling | Convection |
| Over Current Protection | 130%~150% Auto Recovery |
| Over Voltage Protection | 115%~135% |
| Short Circuit Protection | Auto Recovery |
| Aging Test | Full Load 12 Hours Auto Recovery |
| Approval | CE, FCC, RoHS |
| Weight | 141g |
| Size(WxLxH) | 93x54x63mm |
| Cable Length and Thickness | 1200mm (or Customized Length) |
| AC Input Connector | IEC 320-C8 (or Customized Type) |
| Output Connector | 5.5*2.5 (or Customized Connector) |
| MTBF 100%, 25ºC | 50,000 hours |
MOQ (Min Order Qty): 500 PCS
Trade Term: FOB, EXW, CIF
Lead-Time: 15-25 Days
Warranty Period: 24 Months
Supply Capability: 20,000 Units Per Working Day
Payment Methods: T/T, Paypal, Western Union, L/C
Shipping Mode: Express Courier, Air, Sea, Railway
Electrical Characteristics :
1) I/P: AC100-240V, 50/60Hz
2) O/P: DC5-36V, 1000-5000mA
3) Ripple: < 1% ( P-P )
4) Efficiency: > 83%
5) No Load Standby Power: <=0.5W at 230V
6) Load Regulation: ± 5% maximum
7) CE /GS/UL /RoHS & CEC IV and V Compliance
Features :
A) Wide scope input voltage, high adaptability of electrified wire netting;
B) With over voltage, over current & short circuit protection;
C) IEC320 receptacle 2P or 3P, single output;
D) Optional output connector;
E) Operating Temperature: -10 to +45 degree Celsius
F) Storage Temperature: -20 to +85 degree Celsius
G) Size: 116× 48× 32mm
FAQ :
Q1: Do you accept OEM/ODM service? Can I have my own logo on the adapter?
A1: Yes, OEM or ODM is available.
Q2: Can you put my own logo for our order?
A2: Yes, we can produce order with your own logo/brand, Once we get your authorization license of the trademark.
Q3: Did you get approvals for your power adapters & other products?
A3: We got CE ROHS FCC CB PSE KC SAA ETL approval for most of our products, Our customers from more than 40 countries from all over the world.
Q4: How long we can get samples?
A4: The lead time for samples is 5 days for regular products.
Q5: How about the warranty for your products?
A5: Full 24 months Warranty for power adapters, 12 months for accessories.
