Hard work, integrity, win-win cooperation

|
| Place of Origin: | JIANGSU,CHINA |
| Brand Name: | Sanyouhe |
| Certification: | UL、IATF、ISO |
| Model Number: | SYH-P023 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 100/200/300/500pcs per bag , then outside carton； Inner packing : PE bag / Bubble paper / plastic box ； Outer packaging : Carton Box / Custom packaging / Pallet / Wooden box |
| Delivery Time: | 4-10 working days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 35000 PCS/per week |
| Product Name: | Power Adapter | Service: | OEM ODM Accept |
|---|---|---|---|
| Material: | Copper/pa66/pbt/high Temp | Length: | Customized Length |
| Color: | Customized Color | Sample: | Avaliable |
| Certification: | ISO9001:2008 | ||
| High Light: | 12W AC DC Power Adapter,ODM AC DC Power Adapter,Medical Device 5V 2A Power Supply |
||

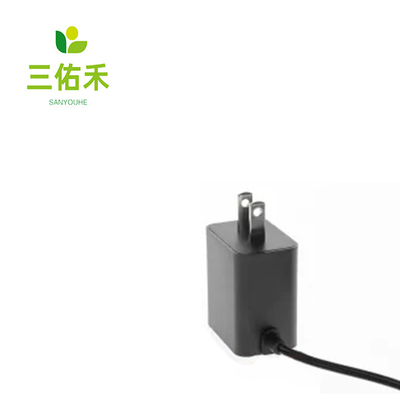

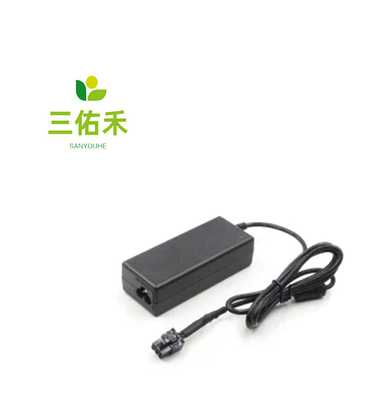

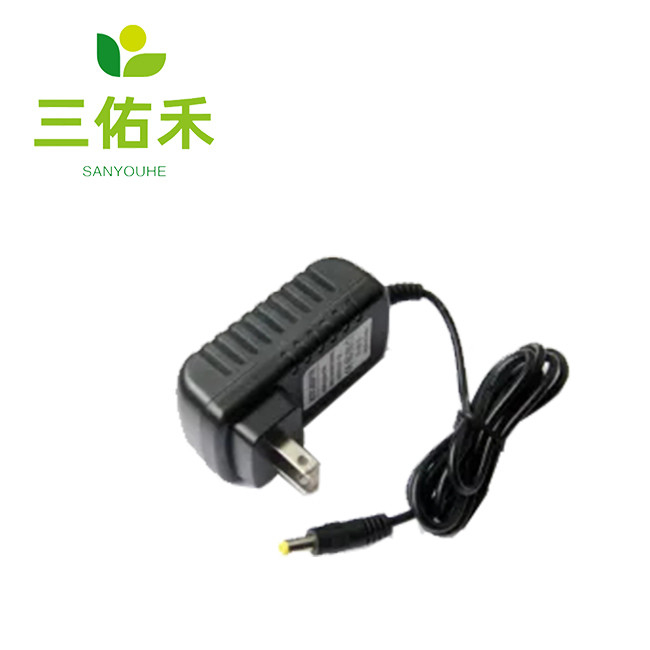

AC DC Power Adapter 5V 2A AMP Adaptor OEM Us EU UK Au Plug Charger 12W Medical Power Supply
.
| Operating voltage range | 90Vac~264Vac |
| Rated operating voltage | 100Vac~240Vac |
| Input AC voltage frequency range | 47~63Hz |
| Nominal Input voltage frequency range | 50~60Hz |
| AC Input Current | 600mA Max |
| Start Delay Time | 3S |
| Overshoot | 10% Max |
| Inrush Current | <60A@230Vac |
| Output Voltage Range | 24V±5% |
| Output Current | 750mA |
| Rated power | 18W |
| Efficiency | Level VI |
| Line regulation | ≤5% |
| Load regulation | ≤5% |
| Output Ripple & Noise | <120mVp-p |
| Over Current Protection | 900-1500mA |
| Short Circuit Protection | Available |
| Power Consumption in Idle | <0.1W |
| Leakage Current | ≤0.25mA |
| EMC Standard EMC | EN55032, EN55013, EN55024, EN55020, FCC Part 15 Class B, GB9254, GB17625.1 |
| Electrical Fast Transient Test | EN61000-4-4, 1KV Performance Criterion: A |
| Surge Immunity Test | EN61000-4-5, Differential Mode: (L-N) 2KV Common Mode (L-PE, N-PE) 4KV Performance Criterion: B |
| Operating Temperature | 0ºC~40ºC |
| Storage Temperature | -30ºC~+70ºC |
| Operating Humidity | 35~90% RH, Non-condensing |
| Storage Humidity | 10~95% RH, Non-condensing |
Remark :
1. All parameters are specified at 230VAC input, rated load, 27ºC 70%RH ambient.
2. Ripple and noise are measured at 20MHz by using a 12 inch Twisted pair terminated with 0.1u and 47u capacitor.
3. Tolerance: includes set up tolerance, line regulation, load regulation.
4. DC voltage : the output voltage set at point measure by plug terminal &50% load.
5. Line regulation is measured from low line to high line at rated load.
6. Load regulation is measured from 20% to 100% rated load.
7. The power supply is considered a component which will be installed into a final equipment .The final equipment must be re-confirmed that it stills meets EMC directives.
Usage : Laptop, Switching, Mobile Phone, Game Player, Digital Camera, Phone, Display
Output Type : DC
Color : Black
Type : ODM
Internal Structure : On-Off Type
Advantages:
1. High quality imported raw materials developed into,light and beautiful structure,easy to carry belt and installation.
2. Application scenarios:Office automation equipment,instrument and meter,communication netwrok,security monitoring,display camera etc.
3. Electromagnetic compatibllity is strong ,with over current,over voltage,overload and other multiple protection circuit.
4. High efficiency ,low temperature rise ,strong anti-interference performance .Function system is more stable and perfect.
5. 100% full load aging test and full power .
6. Offer OEM service, accept print your own label and special requirements for package and other,Shell and cable length and ac dc connector can be customized.
7. Strong reliability , high efficiency and energy conservation & environmental protection.
FAQ :
Q1: Are you manufacturer or trading company or agent?
A: We are professional manufacturer with years experience in electronic industry since 2015 in Jiangsu, China.
Q2: DO you accept small quantity orders?
A: Yes, we accept small quantity sample orders for testing, but not for free, and customers should pay for samples and freight. However we can return back the costs once large quantity orders are set.
Q3: Do you accept ODM & OEM?
A: OEM and ODM are highly welcome. We can customize the products according to customers' detailed requirements.
Q4: How about the quality of your products?
A: Quality is the core. All of our products have OVP, OCP, OLP, high temperature and short circuit protection.CE CB ROHS FCC ERP are all approved by authoritative labs.
Q5: How about the shipment and payment?
A: DHL, UPS, Fedex, TNT, EMS or air transportation for small quantity; large quantity by sea.T/T (30% deposit in advance), L/C, Western Union, Money Gram and Paypal are all accepted.
Q6: How about the after-sales services?
A: The nominal failure rate is under 3‰.We accept replacement or refund within 30 days after you received the products for the original quality matters or other problems caused by us according to the sales contract.
