Hard work, integrity, win-win cooperation
 |
| Place of Origin: | JIANGSU,CHINA |
| Brand Name: | Sanyouhe |
| Certification: | UL、IATF、ISO |
| Model Number: | SYH-F001 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 100/200/300/500pcs per bag , then outside carton |
| Delivery Time: | 3-15 days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 50000 PCS/per week |
| ,aterial: | PE | Pitch: | 0.5-2.54mm |
|---|---|---|---|
| Insulation Thickness: | 0.05mm | Maximum Outer Diameter Of Wire: | 30mm |
| Wire Length: | Customized | Voltage: | 60V |
| Temperature: | 80℃ | ||
| Highlight: | 0.05mm FFC FPC cable,2.54mm flexible flat wire |
||

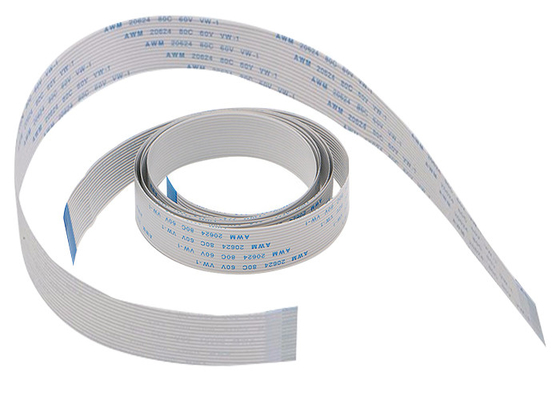

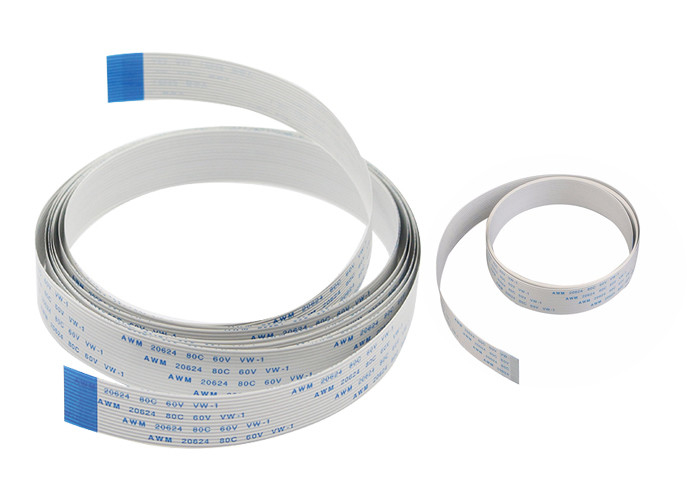

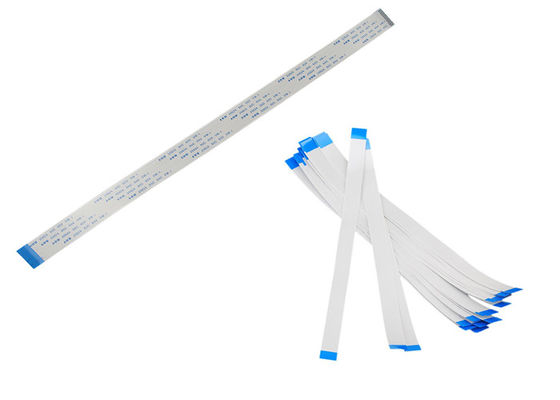

0.5-2.54 Pitch Flexible Flat Cable FFC PE Material With Various Pins Number For Electrical Equipment accept customized
Product introduction
Flexible Flat Cable(FFC) can arbitrarily choose the number and spacing of wires, make the connection more convenient, greatly reduce the volume of electronic products, reduce production costs, and improve production efficiency. It is most suitable for moving parts and motherboards, PCB board to PCB board, miniaturization Used as data transmission cable in electrical equipment.Common specifications are 0.5mm, 0.8mm, 1.0mm, 1.25mm, 1.27mm, 1.5mm, 2.0mm, 2.54mm and other flexible cables with various pitches.
Parameter:
| Pin number | 4-80 |
| Brand Name | SYH |
| Maximum outer diameter of wire | 30mm |
| Insulation thickness | 0.05mm |
| Sheath material | PE |
| Pitch | 0.5-2.54mm |
| Connectors | Customized |
| Wire | Customized |
| Wire length | According to the customers' requirements |
| Wire Color | Customized |
| Certification | ISO9001, T/S16949, Rohs |
| MOQ | Small quantity can be accepted |
| Sample | Sample can be provided for evaluating |
| Sevice | OED ODM accepted |
| Delivery Time | 3-15 days upon receipt of payment |
| Packaging | 00/200/300/500pcs per bag , then outside carton |
| Test | Professional breakover and pulling force test before goods sent out |
Application
It is widely used in the connection between various printer printheads and motherboards, signal transmission and board connection of products such as plotters, scanners, copiers, audio, LCD appliances, fax machines, various DVD players.
Common models are as follows:

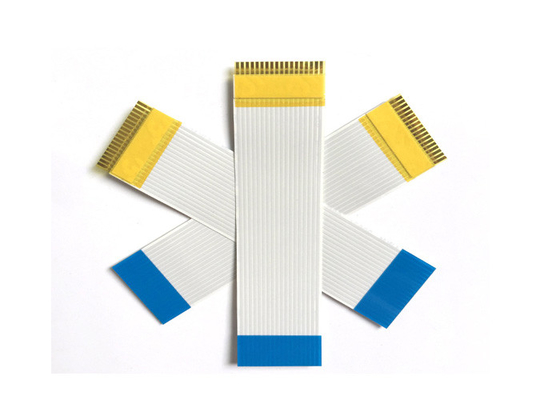

Type A:The two ends are connected and the reinforcing plate is pasted on the insulating tape;
Type B :The reinforcement board is pasted directly on the insulating adhesive paper;
Type C :The reinforcing plates at both ends are directly pasted on the conductor;
Type D :The reinforcing plates at both ends are pasted directly on the conductor;
Type E:One end of the reinforcement board is attached to the insulating adhesive paper, and the other end is directly soldered;
Type F :The reinforcing plates at both ends are directly attached to the insulating adhesive paper, and the internal half is peeled off;
Type G :Direct soldering at both ends.
Our advantage
1. 100% Tested Before Delivery.
2. Prompt Delivery
3. Free Samples .
4. Favorable And Competive Price
5. Short lead time
6. Professional design ability.
7. Provide a full set of connection solutions
8. High performance
9. After-sales guarantee
FAQ
Q: When will you start to help design?
A: We sketch simple solution for initial discussion, after quotation and order placed then start to drawing and double confirm with client for the design.
Q: How can i get the price?
A: We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
Q: Can I buy samples placing orders?
A: Yes.Please feel free to contact us.
Q: What is your lead time?
A: It depends on the order quantity and the season you place the order.
Usually we can ship within 7-15 days for small quantity,and about 30 days for large quantity.
4. What is your payment term?
-T/T,Western Union,MoneyGram,and Paypal.This is negotiable.
5. What is the shipping method?
-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.
