| Place of Origin: | JIANGSU,CHINA |
| Brand Name: | SYH |
| Certification: | UL、IATF、ISO |
| Model Number: | SYH-E011 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 100/200/300/500pcs per bag , then outside carton |
| Delivery Time: | 3-15 days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 50000 PCS/per week |
| PIN: | 16pins | Voltage: | 300V |
|---|---|---|---|
| Lead Time: | 3-15days | Sample: | Free |
| Pitch: | 0.5-2.54mm | Wire Color: | 6 |
| Wire: | 20awg | Wire Length: | 100mm |
| Highlight: | 1.0mm electronic wire harness,300V 16 Pin Wiring Harness |
||

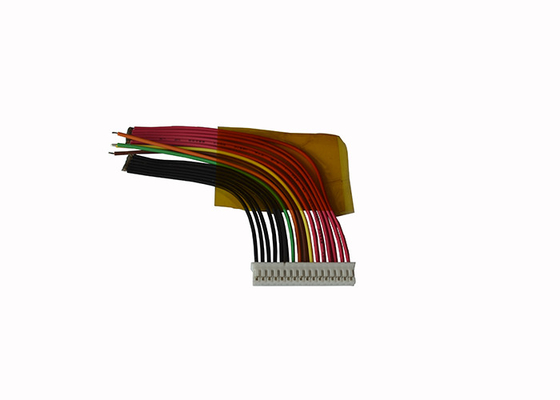

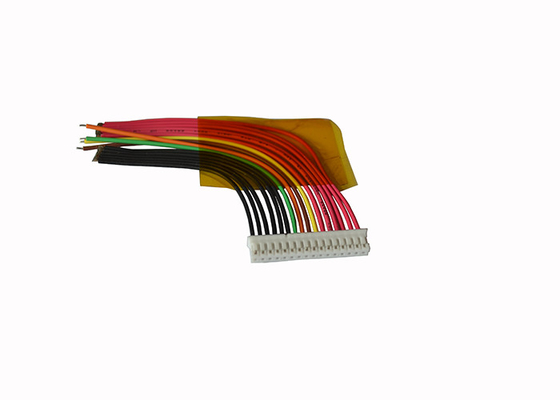

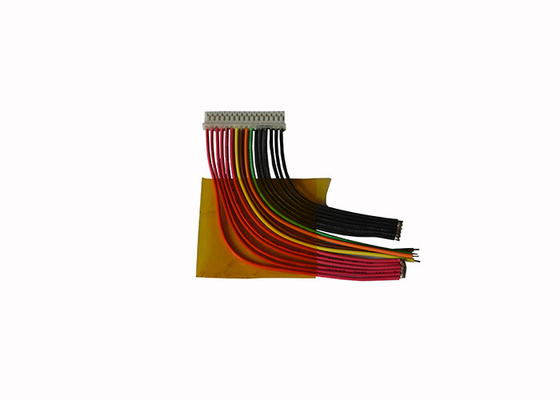

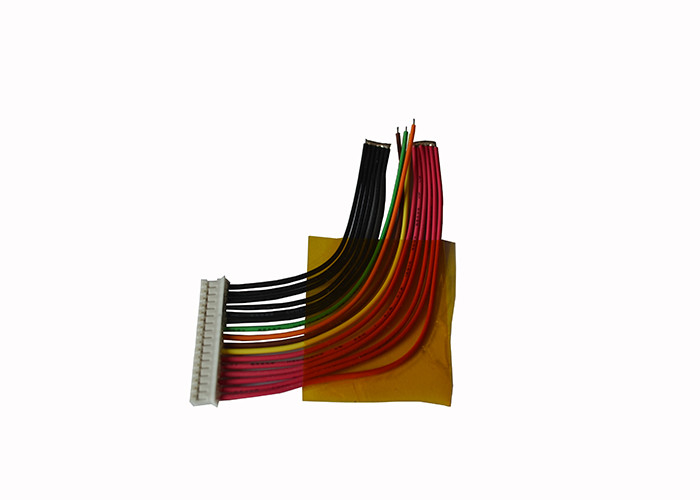

Stylizable Electronic Wiring Harness 16pins 1.0mm Pitch 300V Connection Wire For Electric Products
Product introduction
Your conductors can be made with stranding as small as 0.002 inches (0.05mm) which is excellent for hi-flex, supple cables. If you just need a standard power conductor we can use stranding as large as 0.01 inches (0.25 mm). Stranding can be bare copper, tinned stranding, tinned conductor or even plated with precious metals such as silver for increased conductivity.Our custom wire and cable harness capabilities are extensive, from 1 conductor to cables with more than 50 conductors. Custom colors, striping and marking are available to meet your wiring harness design requirements.
This wire is manufactured from superior materials, this harness ensures peerless quality and uncompromising reliability. This wiring harness can also come in handy in other situations. Adopot 16 wires of 20AWG ,the wire length is customized .the pitch is 1.0mm , Before deliver the products will have professional breakover and pulling force test .can provide sample for evaluating and testing . the sample is free charge ,but customer should pay for the sample shipping cost .(Except for complex samples).
Parameters:
| Pitch | 1mm or customized |
| Feature | Flame resistance |
| Work frequency | Low frequency |
| Interface Type | AC/DC |
| Contact material | Copper |
| Lead time | 3-15 days |
| Temperature resistance | 105℃ |
| Connectors | Female and male |
| Wire | 20awg |
| Wire Color | 6 |
| Wire length | 100mm or According to the customers' requirements |
| Certificates | RoHS,CE,UL,TUV,ISO |
| MOQ | Small quantity can be accepted |
| Sample | Samples confirmed first before mass production |
| Sevice | OED ODM accepted |
| Delivery Time | 3-15 days upon receipt of payment |
| Packaging | 00/200/300/500pcs per bag , then outside carton |
| Test | Professional breakover and pulling force test before goods sent out |
Production Capacity:
We Make Around Five Million Crimps Per Month and We Have Ambitious Expansion Plans to Make Around Ten Million Crimps Per Month .
Competitivenes…
We Maintain Competitiveness with the Following Steps
Why Choosing us?
1. Achieve win-win
2. Competitive price
3. In time service
4. Product warranty
5. Rich experiences
6. High Quality
7. Lead time:7-10 days
8. Offer technology support.
9. Professional and experienced engineers
If you can't find the exact product you need in the pictures,please don't go away.Just contact me freely or send your sample and drawing to us.We will reply you as soon as possible.
