Hard work, integrity, win-win cooperation
 |
| Place of Origin: | JIANGSU,CHINA |
| Brand Name: | SYH |
| Certification: | UL、IATF、ISO |
| Model Number: | SYH-E010 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 100/200/300/500pcs per bag , then outside carton |
| Delivery Time: | 3-15 days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 50000 PCS/per week |
| Connectors: | 1.25 Female | Pitch: | 1.25mm |
|---|---|---|---|
| Pin: | 8 Pins | Length: | 100mm Or Customized |
| Color: | Black、blue、white、yellow And Red Or Customized | Service: | OEM And ODM |
| Characteristics: | Fire Resistance / Flame Retardant | Contact Material: | Phosphorus Copper |
| Highlight: | 1.25mm 8 Pin Wiring Harness,100mm Electronic Wiring Harness |
||

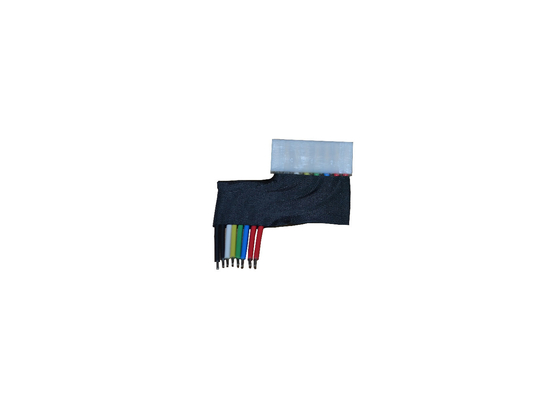

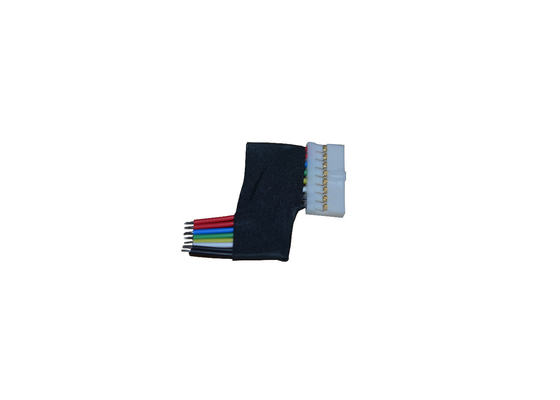

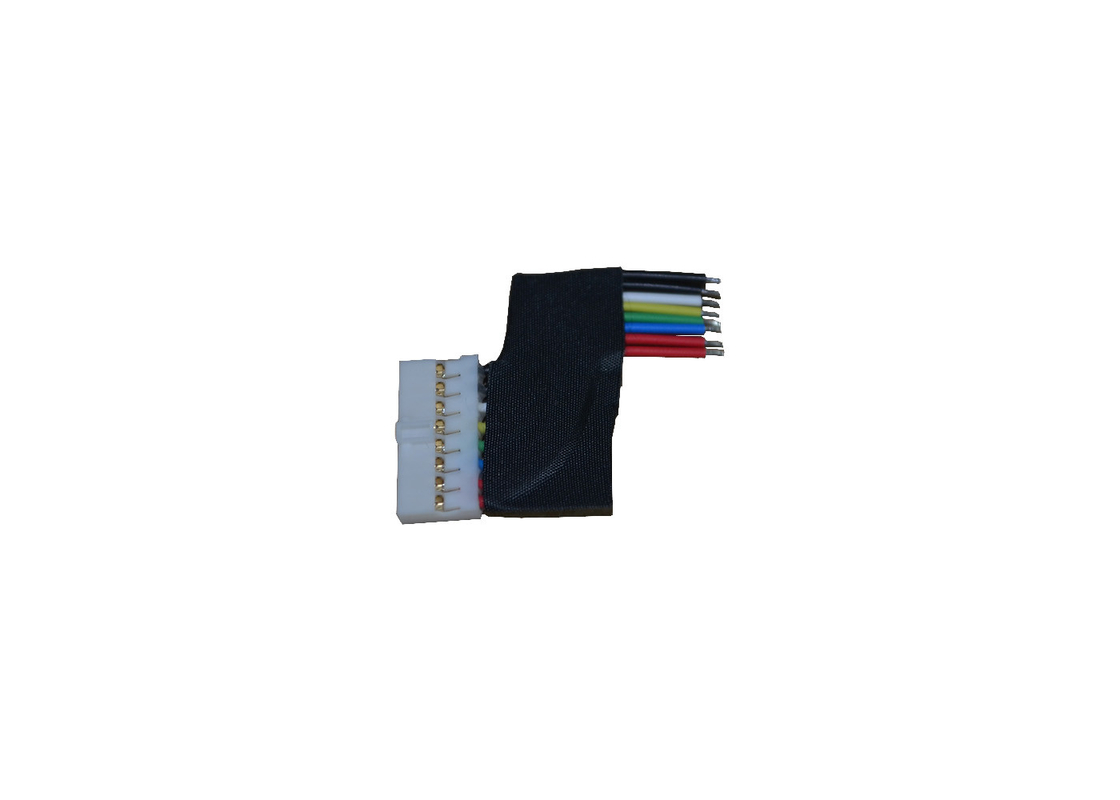

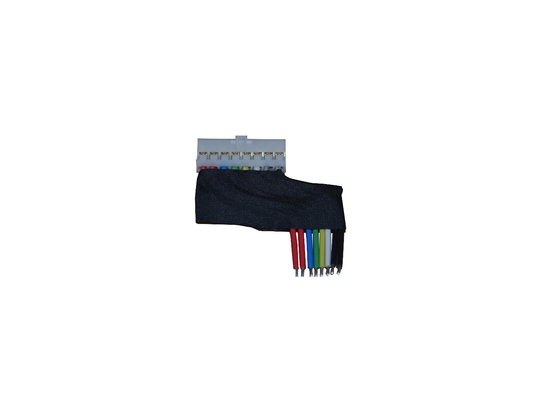

1.25 Pitch Electronic Wire 8p Environmental Protection Wire With Velvet Tape Dipped In Tin Terminal Wire
About electronic wire harness:
Electronic wires are generally used for weak current projects, such as internal wiring of electronics and electrical equipment. It has the advantages of lightness, thinness, shortness, small size, variety, specifications, insulation and good safety performance. Electronic wires are mainly used in the electronics industry. The electronic wires can be classified into PVC, SRPVC, XLPE electronic wires, UL certified electronic wires, and low-smoke halogen-free electronic wires.
Parameters:
| Place of Origin | Jiangsu,China |
| Brand Name | SYH |
| Model Number | SYH-E010 |
| Application | Widely used in various electronic products. |
| Connectors | 1.25mm connector |
| Wire | 20-32awg |
| Wire length | 100mm or Customized |
| Wire Color | black,blue,white,yellow and red or Customized |
| Certification | ISO9001, T/S16949, Rohs |
| MOQ | Small quantity can be accepted |
| Sample | Sample can be provided for evaluating |
| Sevice | OED ODM accepted |
| Delivery Time | 3-15 days upon receipt of payment |
| Packaging | Outside carton |
| Test | Professional breakover and pulling force test before goods sent out |
AWG(AMERICAN WIRE GANGE) specification:
| AWG | Outer diameter (mm) | Cross-sectional area(mm²) | Resistance (MΩ) | AWG | Outer diameter (mm) | Cross-sectional area(mm²) | Resistance (MΩ) |
| 4/0 | 11.684 | 107.2193 | 0.16 | 27 | 0.3607 | 0.1022 | 198.74 |
| 3/0 | 10.4038 | 85.0114 | 0.2 | 28 | 0.3200 | 0.0804 | 214.32 |
| 2/0 | 9.2659 | 67.4321 | 0.26 | 29 | 0.2870 | 0.0647 | 266.47 |
| 1/0 | 8.2525 | 53.4880 | 0.32 | 30 | 0.2540 | 0.0507 | 640.26 |
| 1 | 7.3482 | 42.4086 | 0.41 | 31 | 0.2261 | 0.0401 | 429.56 |
| 2 | 6.5430 | 33.6240 | 0.51 | 32 | 0.2302 | 0.0324 | 531.65 |
| 3 | 5.8268 | 26.6652 | 0.65 | 33 | 0.1803 | 0.0255 | 674.98 |
| 4 | 5.1892 | 21.1492 | 0.82 | 34 | 0.1600 | 0.0201 | 857.28 |
| 5 | 4.6203 | 16.7657 | 1.03 | 35 | 0.1422 | 0.0159 | 1085.00 |
| 6 | 4.1148 | 13.2980 | 1.63 | 36 | 0.1270 | 0.0127 | 1361.02 |
| 7 | 3.6652 | 10.5509 | 2.06 | 37 | 0.1143 | 0.0103 | 1680.27 |
| 8 | 3.2639 | 8.3669 | 2.6 | 38 | 0.1016 | 0.0081 | 2126.60 |
| 9 | 2.9058 | 6.6315 | 3.28 | 39 | 0.0889 | 0.0062 | 2777.60 |
| 10 | 2.5883 | 5.2615 | 4.14 | 40 | 0.0787 | 0.0049 | 3540.64 |
| 11 | 2.3038 | 4.1684 | 5.21 | 41 | 0.0711 | 0.0040 | 4339.99 |
| 12 | 2.0523 | 3.3081 | 6.56 | 42 | 0.0635 | 0.0032 | 5444.09 |
| 13 | 1.8288 | 2.6268 | 8.28 | 43 | 0.0559 | 0.0025 | 7030.07 |
| 14 | 1.6281 | 2.0820 | 10.44 | 44 | 0.0508 | 0.0020 | 8506.39 |
| 15 | 1.4503 | 1.6521 | 10.44 | 45 | 0.0447 | 0.0016 | 10984.5 |
| 16 | 1.2903 | 1.3076 | 13.18 | 46 | 0.0399 | 0.0012 | 138.04 |
| 17 | 1.1506 | 1.0398 | 16.58 | 47 | 0.0356 | 0.0010 | 17360.0 |
| 18 | 1.0236 | 0.8229 | 20.95 | 48 | 0.0315 | 0.0008 | 22129.0 |
| 19 | 0.9119 | 0.6530 | 26.40 | 49 | 0.0282 | 0.0006 | 27615.9 |
| 20 | 0.8128 | 0.5189 | 33.23 | 50 | 0.0251 | 0.0005 | 34716.4 |
| 21 | 0.7239 | 0.4116 | 41.89 | 51 | 0.0224 | 0.0004 | 43938.0 |
| 22 | 0.6426 | 0.3243 | 53.16 | 52 | 0.0198 | 0.0003 | 55926.3 |
| 23 | 0.5740 | 0.2588 | 66.62 | 53 | 0.0178 | 0.0002 | 69439.9 |
| 24 | 0.5105 | 0.2047 | 84.22 | 54 | 0.0157 | 0.0002 | 88516.0 |
| 25 | 0.4547 | 0.1624 | 106.19 | 55 | 0.0140 | 0.0002 | 112481.2 |
| 26 | 0.4039 | 0.1281 | 134.59 | 56 | 0.0124 | 0.0001 | 111714.1 |
Our products are as follows:
1. Industrial Wiring Harness
2. Ffc Flexible Flat Cable
3. Idc Ribbon Cable
4. Lvds Cable
5. Custom Wiring Harness
6. Overmolded Cable Assemblies
7. Communication Wires And Cables
8. High Gain Wifi Antenna
9. New Energy Vehicle Wiring Harness
10. Medical Wiring Harness
11. Automotive Wiring Harness
12. Electronic Wiring Harness
13. Industrial Wiring Harness
14. Converter Adapter Cable
15. Waterproof Cable Wire
Our Advantages:
1. Factory and trade integration,
2. Competitive price;
3. Timely delivery;
4. Technical support;
5. Samples for free;
6. High Trade Assurance Level
Our Services
1. Design and provide drawings service
2. Free sample service
3. Respond in time
4. OEM, ODM service
5. After sales guarantee service
Shipping:
1. FedEx/DHL/TNT/UPS/EMS/Aramex/SF for samples, Door-to-Door;
2. By Air or by Sea for batch goods;Airportport receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 3-7 days for samples; 10-30 days for batch goods.
