22 AWG 3 Pins Female 2.54mm Electrical Wiring Harness

3 Pins Female Electronic Wiring Harness 2.54 Pitch 22awg Dip Tin Electronic Wire Terminal Wire

Application:

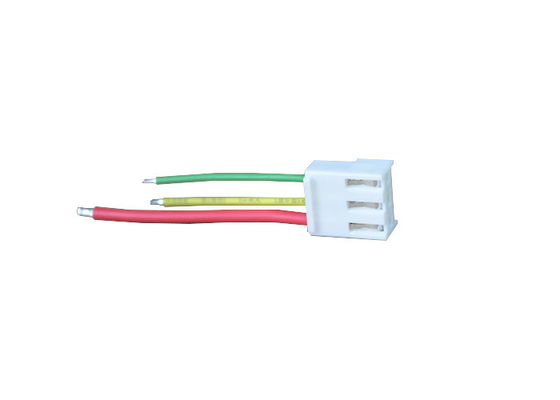

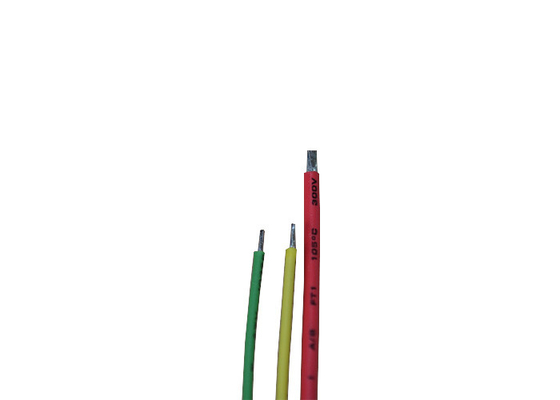

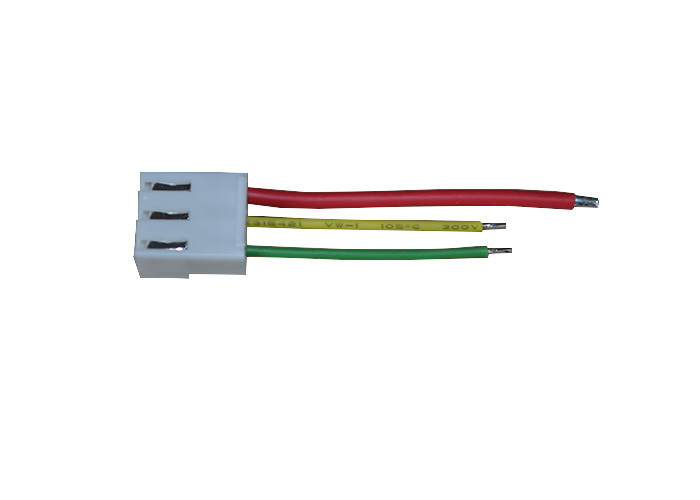

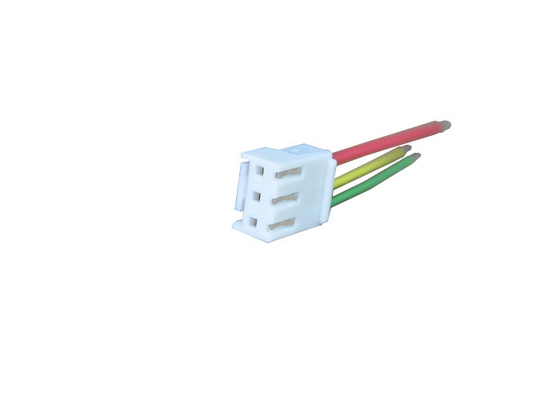

The product shown in the picture uses a 2.54mm pitch connector, the material complies with ROHS standard PVC environmental protection material, the contact material is phosphor copper, the wire is UL1007 series, the wire gauge model is generally 22AWG-28AWG, color is red,yellow,green. color, wire, wire gauge The length can be customized according to your requirements. Widely used in various electronic products.

Parameters:

The wiring harness is generally composed of wires, insulating sheaths, terminal blocks and packing materials.

First, Material selection of terminal

The copper used for terminal materials (copper parts) is mainly brass and bronze (brass is slightly lower in hardness than bronze), of which brass accounts for a larger proportion. In addition, different coatings can be selected according to different needs.

Second, the choice of insulating sheath

The commonly used materials of sheath material (plastic parts) are PA6, PA66, ABS, PBT, pp, etc. According to the actual situation, flame retardant or reinforcing materials can be added to the plastic to achieve the purpose of reinforcing or flame retardant, such as adding glass fiber reinforcement.

Third, the choice of wire harness

According to the different use environment, choose the corresponding wire material.

Fourth, the choice of dressing materials

Wire harness bandaging plays the role of wear resistance, flame retardant, anticorrosion, interference prevention, noise reduction, and beautification of appearance. Generally, the bandage material is selected according to the working environment and the size of the space. There are usually adhesive tapes, corrugated pipes, PVC pipes, etc. in the choice of packing materials.

Female and male connectors information :

Plug-in connectors are divided into male and female ends, one side of the plug (protruding connector) is the male end, and the other side of the jack (recessed connector) is the female end, and the male and female terminals are injection molded. The two connectors have the difference between male and female, that is, the widely used connector, namely CONNECTOR. Generally, it refers to an electrical connector, that is, a device that connects two active devices. The male and female terminals are inserted into each other to achieve the working principle of transmitting current or signals. It is widely used in lighting, communications, medical, sensing, automotive, etc. Electronic device industry.
