| Place of Origin: | JIANGSU,CHINA |
| Brand Name: | Sanyouhe |
| Certification: | UL、IATF、ISO |
| Model Number: | SYH-H019 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 100/200/300/500pcs per bag , then outside carton |
| Delivery Time: | 3-15 days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 50000 PCS/per week |
| Work Voltage: | 2V | Connector Type: | IPX13 Or Customized |
|---|---|---|---|
| Cable Length: | 100mm Or Customized | Frequency: | 2400-2500MHZ Or Customized |
| Standing Wave Ratio: | ≤1.5DB | Output Impedance: | 50（Ω） |
| High Light: | 100MM FPC Antenna,2500MHZ High Gain Wifi Antenna,5DBI high dbi antenna |
||

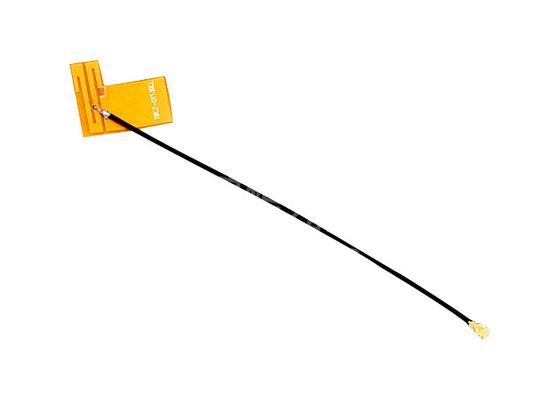

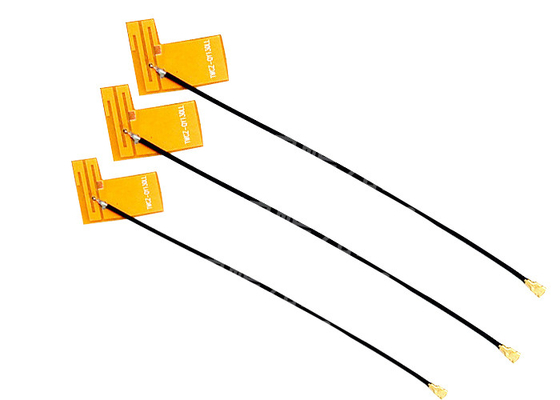

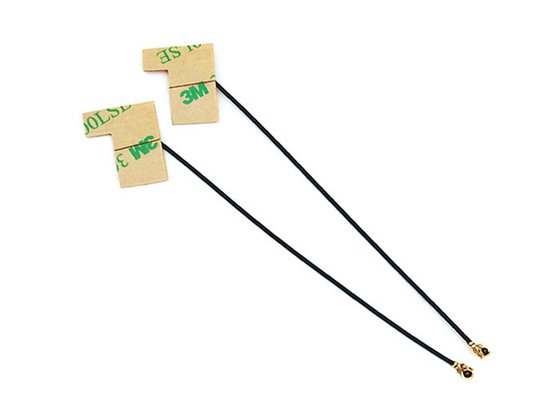

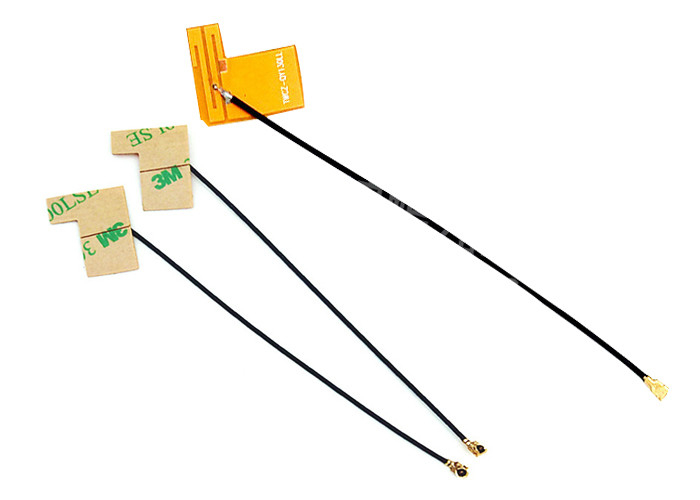

IPX13 High Gain Wifi Antenna 5DBI 2500MHZ 100MM FPC Antenna For Security Monitoring
Product information:
High-gain antennas are focused antennas with narrow radio beams, allowing for precise targeting of radio signals. This antenna is used in space missions as well as in flat, open areas where the geography won'tdisrupt radio waves.
Parameter:
| Gain | 5DB |
| Work Voltage | 2V |
| Connector Type | IPX13 or customized |
| Cable length | 100mm or customized |
| Wire color | Customized |
| Frequency | 2400-2500MHZ or customized |
| Standing wave ratio | ≤1.5DB |
| Output impedance | 50(Ω) |
| Dimension | 18*22mm |
| Operation Temperature | - 40 °C ~ + 85 °C |
| Storage Temperature | - 40 °C ~ +80°C |
| Material | Cooper |
| MOQ | Small quantity can be accepted |
| Lead time | 3-15 days |
| Certificate | RoHS,CE,UL,TUV,ISO |
| Test | Professional breakover and pulling force test before goods sent out |
| Customized | Yes |
High-gain antennas transmit more power to the receiver, increasing the strength of the signal it receives. As a result of their reciprocity, high-gain antennas can also make transmitted signals 100 times stronger by capturing more energy when used in receiving antenna. As a result of their directivity, directional antennas send fewer signals from a direction other than the main beam. This property reduces interference.
Antenna gain refers to the ratio of the power density of the signal generated by the actual antenna and the ideal radiating element at the same point in space under the condition of equal input power. It quantitatively describes the degree to which an antenna radiates concentrated input power. The gain is obviously closely related to the antenna pattern. The narrower the main lobe of the pattern, the smaller the side lobe and the higher the gain. Antenna gain is used to measure the ability of the antenna to send and receive signals in a specific direction. It is one of the most important parameters for selecting a base station antenna.
Our Services
1. Design and provide drawings service
2. Free sample service
3. Respond in time
4. OEM, ODM service
5. After sales guarantee service
What we can produce :
1. Industrial Wiring Harness
2. Ffc Flexible Flat Cable
3. Idc Ribbon Cable
4. Lvds Cable
5. Custom Wiring Harness
6. Overmolded Cable Assemblies
7. Communication Wires And Cables
8. High Gain Wifi Antenna
9. New Energy Vehicle Wiring Harness
10. Medical Wiring Harness
11. Automotive Wiring Harness
12. Electronic Wiring Harness
13. Industrial Wiring Harness
14. Converter Adapter Cable
15. Waterproof Cable Wire
Shipping:
1.FedEx/DHL/TNT/UPS/EMS/Aramex/SF for samples, Door-to-Door;
2. By Air or by Sea for batch goods;Airportport receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 3-7 days for samples; 10-30 days for batch goods.
FAQ
Q:What is wire harness manufacturing?
A:Wire harness manufacturing entails creating a custom set-up of electrical wires and/or cables based on the task needed by our client. You can imagine this can run a pretty large gambit of different applications. As custom wire harness manufacturers, it is our job to fully understand the client’s needs, examine where the cable harness will be used, and consider a host other factors that determine the material types and attributes needed for the wiring harness to perform under even the harshest of conditions for years of faithful, continued service. At SYH, we have the tools and experience to create just about any wiring harness application a client can think of. We usually produce a small number of prototypes to ensure our engineers have everything perfect for the unique application our client is intending before we move on to larger-scale production.
Q:What are wiring harnesses used for?
A:Wiring harnesses are used in everything from remote control cars to jumbo jets. For example, the desktop computer you may be using currently has a myriad of different harnesses for data and power transfer, all to let you view a page like this one. Inside your vehicle are reams of cables, wires, terminals, and connectors that have to run through the entire vehicle in order to connect all the different components that allow you to simply drive from A to B. The harness itself sounds simple, but it can be rather complex when different connections, terminations, conductor sizes, sheathing, strain reliefs, and many other considerations have to come into play depending on the needs of the project. Our engineers design a complete system around the wires and cables needed to power electrical systems, transfer high speed data, and send and receive signals. If you’re ready to discuss your project’s unique requirements, talk over your options with a knowledgeable representative now.
