| Place of Origin: | JIANGSU,CHINA |
| Brand Name: | Sanyouhe |
| Certification: | UL、IATF、ISO |
| Model Number: | SYH-F011 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 100/200/300/500pcs per bag , then outside carton |
| Delivery Time: | 3-15 days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 50000 PCS/per week |
| Product Name: | 50PIN Video Signal Flat Wire | Wire Gauge: | 26 AWG Or Customized |
|---|---|---|---|
| Wire Color: | Black Or Customized | Wire Lenght: | 100mm Or Customized |
| Certificates: | RoHS,CE,UL,TUV,ISO | Resistance: | Standard |
| Highlight: | 26 AWG FFC Flexible Flat Cable,100mm FFC 50 pin |
||

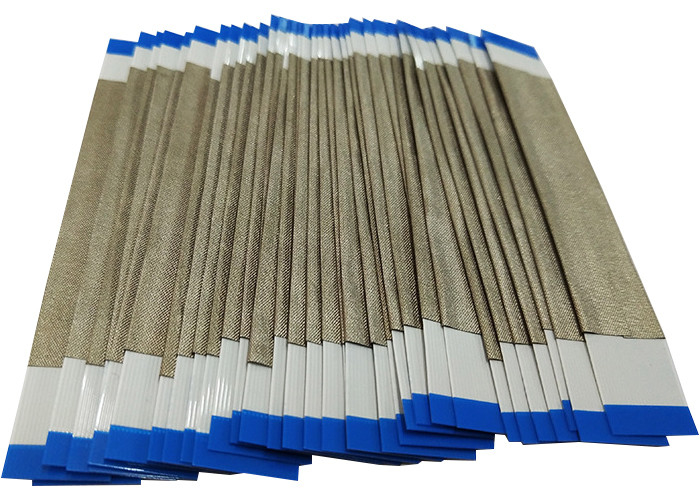

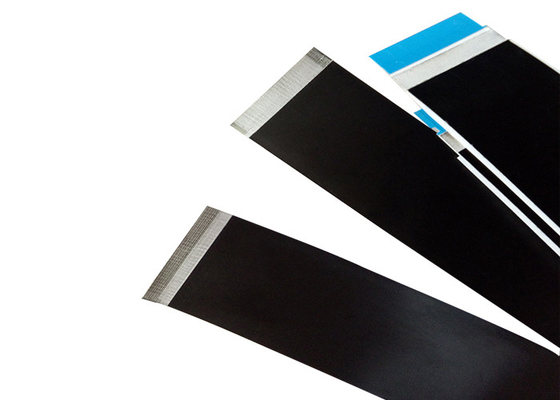

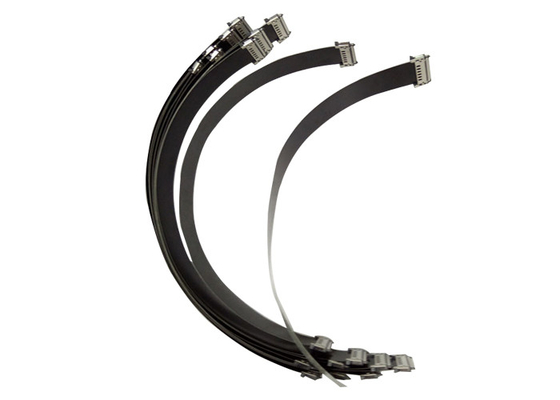

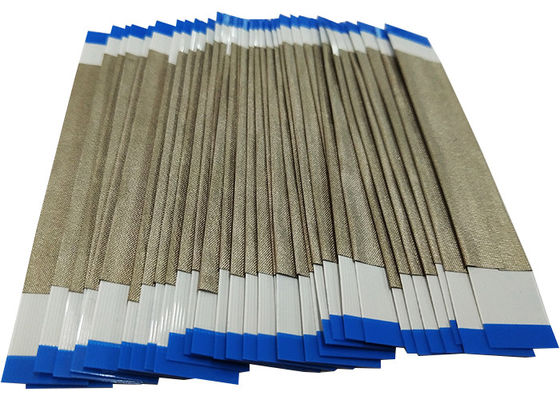

26AWG FFC Flexible Flat Cable 50pins 100mm Video Signal Flat Cable
Product information :
FFC (flexible flat cables) are a type of ribbon cable, so named due to their wide flat structure. They are usually a straight connector, without any additional components. FFC cables usually consist of a plastic film, to which multiple metallic connectors are bonded and the spacing between each connector is referred to as the ‘pitch’.
The construction of FFC cables means they take up less space and offer greater flexibility than round cables and often offer better EMI/RFI suppression as well as eliminating wire coupling issues.
They tend to be used in high density electronic systems especially where high-flexibility is required, for example connections to a moving printer head, folding mobile-phones or where there are weight or space limitations.
SYH offers a selection of FFC cables with 0.5mm, 0.8mm, 1mm, 1.25mm and 2.54mm pitch options suitable for soldering or pug-in connections.
Parameter:
| Product name | 50PIN video signal Flat wire |
| Temperature resistance | 105℃ |
| Rated voltage | 220V |
| Insulation thickness | Standard |
| Resistance | Standard |
| Core material | Tinned copper |
| Max outer diameter | Standard |
| Wire gauge | 26 AWG or Customized |
| Wire Color | Black or customized |
| Wire lenght | 100mm or According to the customers' requirements |
| Certificates | RoHS,CE,UL,TUV,ISO |
| MOQ | Small quantity can be accepted |
| Sample | Samples confirmed first before mass production |
| Sevice | OEM ODM accepted |
| Delivery Time | 3-15 days upon receipt of payment |
| Packaging | 00/200/300/500pcs per bag , then outside carton |
| Test | Professional breakover and pulling force test before goods sent out |
FAQ:
Q: When will you start to help design?
A: We sketch simple solution for initial discussion, after quotation and order placed then start to drawing and double confirm with client for the design.
Q:How can i get the price?
A:We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
Q:Can I buy samples placing orders?
A:Yes.Please feel free to contact us.
Q:What is your lead time?
A:It depends on the order quantity and the season you place the order.
Usually we can ship within 7-15 days for small quantity,and about 30 days for large quantity.
Q:What is your payment term?
A:T/T,Western Union,MoneyGram,and Paypal.This is negotiable.
Q:What is the shipping method?
A:It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.
Q:Why use ribbon cables?
A:Ribbon cables are often used when space is a factor. They lay flat and take up very little room. Because they are flat, they can run beneath carpeting, which is very convenient. They can also be mass terminated easily.
Q:What are some common applications for ribbon cabling?
A:Ribbon cabling is used for data transmission and communications. It is often chosen for computer cable applications, where it is used as internal wiring for hard drives, CD drives, and more. They are also commonly used as internal wiring for other electronics and appliances. They can be found in test and measuring equipment, automated termination equipment, robotics, and pick and place equipment as well.
Q:How do I determine which size I need?
A:Sizes are often specified with the number of conductors and the spacing between them. With this type of cable, the conductors may also be referred to as ways. The spacing is known as pitch. The most common pitch for ribbon cabling is 0.050 inches or 1.27 millimeters.
