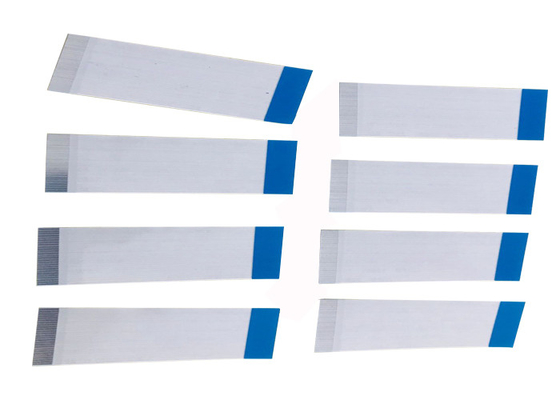

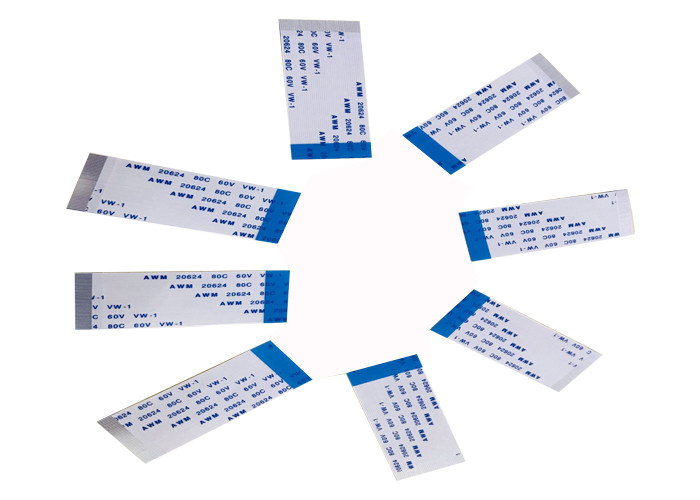

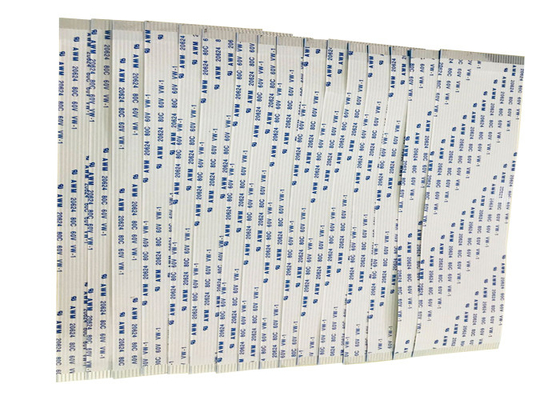

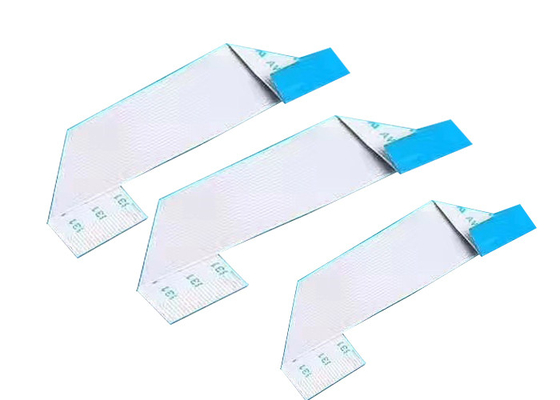

Electronics 32 AWG 10 Pins 80mm FFC Flexible Flat Cable

32AWG FFC Flexible Flat Cable 10pins 80mm ZIF Flat Cable For Electronics

Product information:

Flexible Flat Cable (FFC) can arbitrarily choose the number and spacing of wires to make the connection more convenient, greatly reduce the volume of electronic products, reduce production costs, improve production efficiency, and is most suitable for moving parts and motherboards, PCB boards Used as a data transmission cable between PCB boards and miniaturized electrical equipment. Common specifications are 0.5mm, 0.8mm, 1.0mm, 1.25mm, 1.27mm, 1.5mm, 2.0mm, 2.54mm and other flexible cables with various pitches.

Parameter:

FFC technical parameters:

1. Number of conductors N: the number of copper conductors in the cable;

2. Pitch P: the distance between the centerlines of two adjacent conductors;

3. Margin M: the distance between the center line of the outermost conductor and the edge of the cable:

4. Full pitch TP: the distance between the outermost two conductor centerlines, TP=P*(N-1);

5. Total width W: the distance between the two edges of the cable, W=P*(N+1);

6. Total length TL: the distance between the two ends of the cable;

7. Insert thickness TT: the thickness of the two connecting ends of the cable;

FAQ:

Q:Are there any disadvantages to choosing flexible flat cable?

A:This type of cable does not allow for sideways flexing, so it may only be used in straight-run applications.

Q:How do I determine which size I need?

A:Sizes are often specified with the number of conductors and the spacing between them. With this type of cable, the conductors may also be referred to as ways. The spacing is known as pitch. The most common pitch for ribbon cabling is 0.050 inches or 1.27 millimeters.

Q:What are some common applications for flexible flat cable?

A:Flexible flat cable is used for data transmission and communications. It is often chosen for computer cable applications, where it is used as internal wiring for hard drives, CD drives, and more. They are also commonly used as internal wiring for other electronics and appliances. They can be found in test and measuring equipment, automated termination equipment, robotics, and pick and place equipment as well.

Q:Do the colors used in rainbow flexible flat cable have any significance?

A:The colors of rainbow flexible flat cable are used to make conductor identification easier. The cables follow the standard color code of brown, red, orange, yellow, green, blue, violet, gray, white, and black. After that, colors repeat.
