Hard work, integrity, win-win cooperation
 |
| Place of Origin: | JIANGSU,CHINA |
| Brand Name: | Sanyouhe |
| Certification: | UL、IATF、ISO |
| Model Number: | SYH-F014 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 100/200/300/500pcs per bag , then outside carton |
| Delivery Time: | 3-15 days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 50000 PCS/per week |
| Product Name: | FFC Flexible Flat Cable | Shape: | Flat Wire |
|---|---|---|---|
| Sheath Material: | PE | Tensile Strength: | 20N |
| Outer Diameter: | 0.1-0.3mm Or Customized | Converter: | FPC |
| PIN: | 8 Pins Or Customized | Wire Lenght: | 100mm Or Customized |
| Highlight: | 34 AWG flat flex cable,20N FFC Flexible Flat Cable |
||

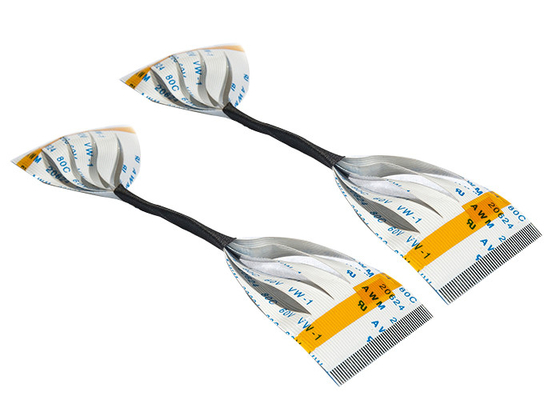

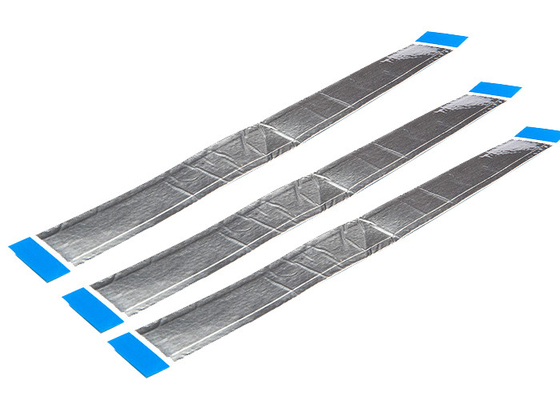

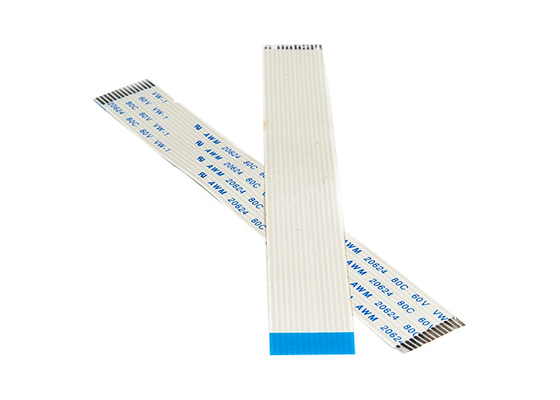

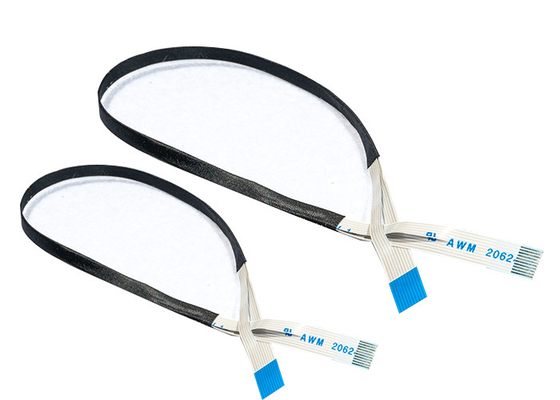

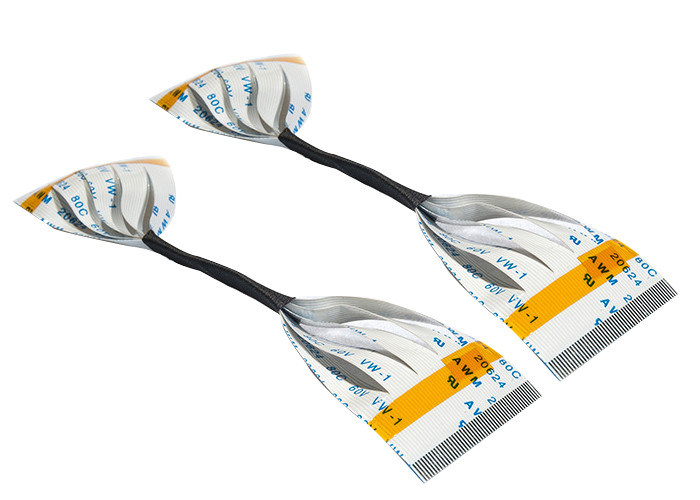

20N FFC Flexible Flat Cable 34AWG 0.5mm Pitch Conductive Aluminum Foil FFC Cables
Product information:
Flexible Flat Cable (FFC) is a new type of data cable made of PET insulating material and extremely thin tinned flat copper wire, which is pressed through a high-tech automation equipment production line. Thin thickness, small size, simple connection, easy disassembly, easy to solve electromagnetic shielding (EMI) and other advantages.
Parameter:
| Product name | FFC flexible flat cable |
| Shape | Flat wire |
| Sheath material | PE |
| Tensile Strength | 20N |
| Outer diameter | 0.1-0.3mm or customized |
| Core material | Cooper |
| Resistance | 1Ω |
| Converter | FPC |
| Rated voltage | 60V |
| Work frequency | Low frequency |
| PIN | 8 pins or customized |
| Application | Photoelectric/POS machine/display |
| Insulation thickness | 0.028-0.1mm or Customized |
| Core material | Tinned copper |
| Wire gauge | 32 AWG or Customized |
| Wire Color | Customized |
| Wire lenght | 100mm or According to the customers' requirements |
| Certificates | RoHS,CE,UL,TUV,ISO |
| MOQ | Small quantity can be accepted |
| Sample | Samples confirmed first before mass production |
| Sevice | OEM ODM accepted |
| Delivery Time | 3-15 days upon receipt of payment |
| Packaging | 00/200/300/500pcs per bag , then outside carton |
| Test | Professional breakover and pulling force test before goods sent out |
| Lead time |
3-15 days |
Flexible Flat Cable models are as follows:
Type A: The two ends are connected and the reinforcing plate is pasted on the insulating adhesive paper;
Type B: The reinforcement board is pasted directly on the insulating adhesive paper;
Type C: The reinforcing plates at both ends are directly pasted on the conductor;
Type D: The reinforcement plates at both ends are directly pasted on the conductor cross;
Type E: one end of the reinforcement board is attached to the insulating adhesive paper, and the other end is directly soldered;
Type F: The reinforcing plates at both ends are directly attached to the insulating adhesive paper, and the internal half is peeled off;
Type G: Solder directly at both ends.
Our products are as follows:
1. Industrial Wiring Harness
2. Ffc Flexible Flat Cable
3. Idc Ribbon Cable
4. Lvds Cable
5. Custom Wiring Harness
6. Overmolded Cable Assemblies
7. Communication Wires And Cables
8. High Gain Wifi Antenna
9. New Energy Vehicle Wiring Harness
10. Medical Wiring Harness
11. Automotive Wiring Harness
12. Electronic Wiring Harness
13. Industrial Wiring Harness
14. Converter Adapter Cable
15. Waterproof Cable Wire
Shipping:
1.FedEx/DHL/TNT/UPS/EMS/Aramex/SF for samples, Door-to-Door;
2. By Air or by Sea for batch goods;Airportport receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 3-7 days for samples; 10-30 days for batch goods.
Why Choosing us?
1. Achieve win-win
2. Competitive price
3. In time service
4. Product warranty
5. Rich experiences
6. High Quality
7. Lead time:7-10 days
8. Offer technology support.
9. Professional and experienced engineers
If you can't find the exact product you need in the pictures,please don't go away.Just contact me freely or send your sample and drawing to us.We will reply you as soon as possible.
Contact Person: Mrs. Eda Han
Tel: +86-18234096310
